Flink State Management and Checkpointing

Apache Flink's ability to maintain stateful computations with strong fault tolerance guarantees is one of its defining features. Understanding state management and checkpointing is essential for building reliable, production-grade streaming applications that can recover from failures without data loss or duplication.

Understanding State in Flink

State in Flink represents information about past events that influences the processing of future events. Flink supports two primary types of state:

Keyed State is associated with a specific key and is accessible only by operations on the same key. This is the most common form of state in streaming applications. Flink provides several keyed state primitives:

• ValueState<T>: Stores a single value per key

• ListState<T>: Stores a list of elements per key

• MapState<K, V>: Stores a map of key-value pairs per key

• ReducingState<T>: Stores a single value representing aggregation results

• AggregatingState<IN, OUT>: Similar to ReducingState but with different input/output types

Operator State (or non-keyed state) is associated with parallel instances of operators rather than with specific keys. This is commonly used for source operators that need to track partition offsets or maintain buffered data.

State serves critical functions in streaming applications: maintaining session windows, tracking user interactions over time, computing running aggregations, and implementing complex event processing patterns. Without proper state management, streaming applications would be limited to stateless transformations.

State Backends: Storage and Retrieval

Flink abstracts state storage through configurable state backends, which determine how state is stored locally during computation and how it's persisted during checkpoints.

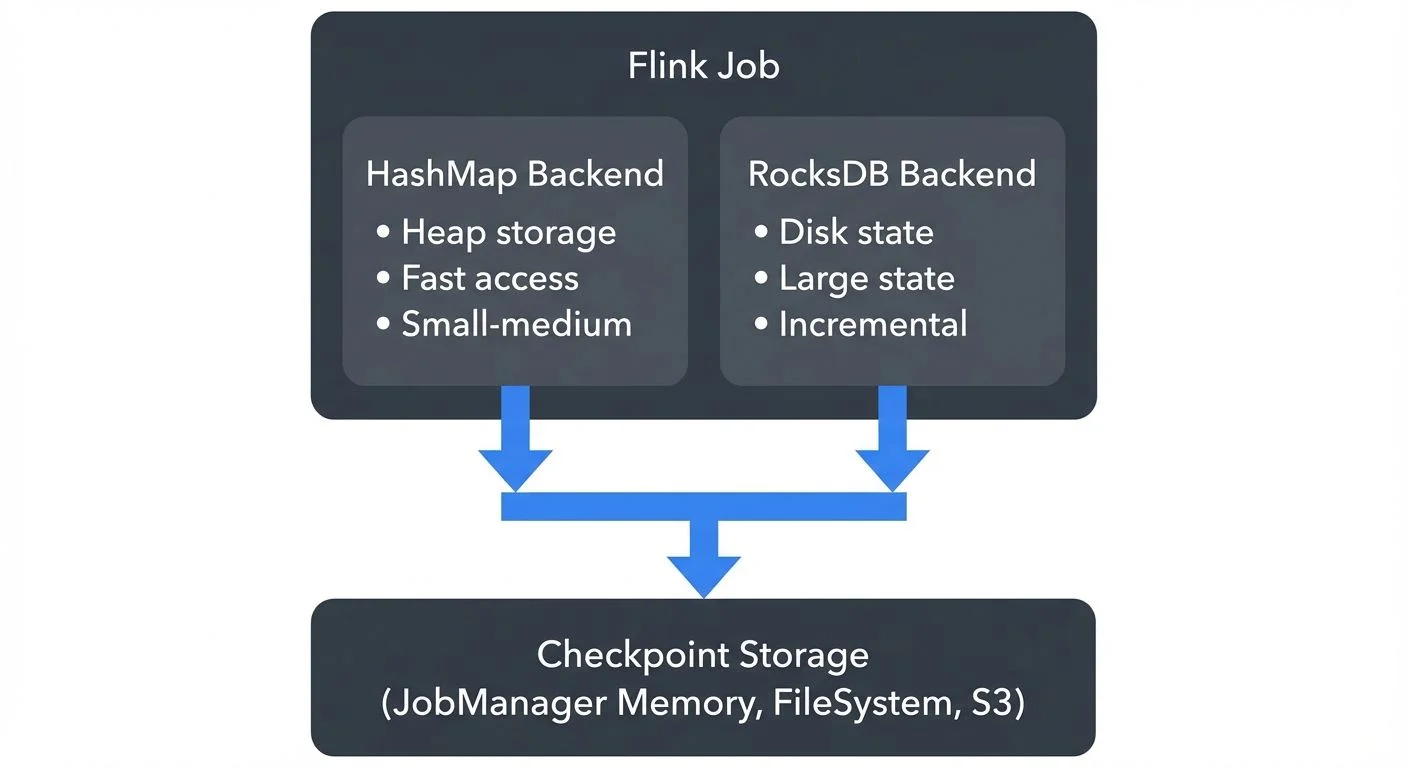

                    State Backend Architecture

┌─────────────────────────────────────────────────────────────┐
│                    Flink Job                                │
├─────────────────────────────────────────────────────────────┤
│                                                              │
│  ┌────────────────┐  ┌────────────────┐  ┌──────────────┐  │
│  │ Memory Backend │  │   Fs Backend   │  │ RocksDB      │  │
│  │                │  │                │  │ Backend      │  │
│  │ • Heap storage │  │ • Heap working │  │ • Disk state │  │
│  │ • JM snapshots │  │ • DFS checkpts │  │ • DFS checkpts│ │
│  │ • Small state  │  │ • Medium state │  │ • Large state│  │
│  └───────┬────────┘  └────────┬───────┘  └───────┬──────┘  │
│          │                    │                   │         │
│          └────────────────────┴───────────────────┘         │
│                               │                             │
└───────────────────────────────┼─────────────────────────────┘
                                ▼
                     ┌──────────────────────┐
                     │  Distributed Storage │
                     │  (HDFS / S3 / ADLS)  │
                     └──────────────────────┘

MemoryStateBackend stores state as Java objects in the TaskManager's JVM heap. Checkpoints are stored in the JobManager's memory. This backend is suitable for development and testing but has strict size limitations due to heap constraints and single-point-of-failure risks.

FsStateBackend (File System State Backend) maintains working state in TaskManager memory but persists checkpoints to a distributed file system like HDFS, S3, or Azure Blob Storage. This provides better scalability than MemoryStateBackend while keeping fast local access to state during processing.

RocksDBStateBackend uses an embedded RocksDB instance to store state on local disk. This backend supports state sizes larger than available memory and provides incremental checkpointing, making it the preferred choice for production applications with large state requirements. RocksDB serializes state objects, which adds CPU overhead but enables practically unlimited state size.

Configuration example for RocksDB state backend:

StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

// Configure RocksDB state backend
EmbeddedRocksDBStateBackend rocksDBBackend = new EmbeddedRocksDBStateBackend(true);
rocksDBBackend.setDbStoragePath("/tmp/rocksdb");

env.setStateBackend(rocksDBBackend);
env.getCheckpointConfig().setCheckpointStorage("s3://my-bucket/checkpoints");

State backend selection depends on state size requirements, recovery time objectives, and available infrastructure. Small state fits in memory backends, while multi-gigabyte state requires RocksDB with incremental checkpointing enabled.

Checkpointing: The Fault Tolerance Mechanism

Checkpointing is Flink's primary mechanism for fault tolerance. A checkpoint represents a consistent snapshot of the entire application state and stream positions across all operators. If a failure occurs, Flink restarts the application from the most recent successful checkpoint.

Flink implements the Chandy-Lamport algorithm for distributed snapshots, modified to work efficiently with streaming data. The process works as follows:

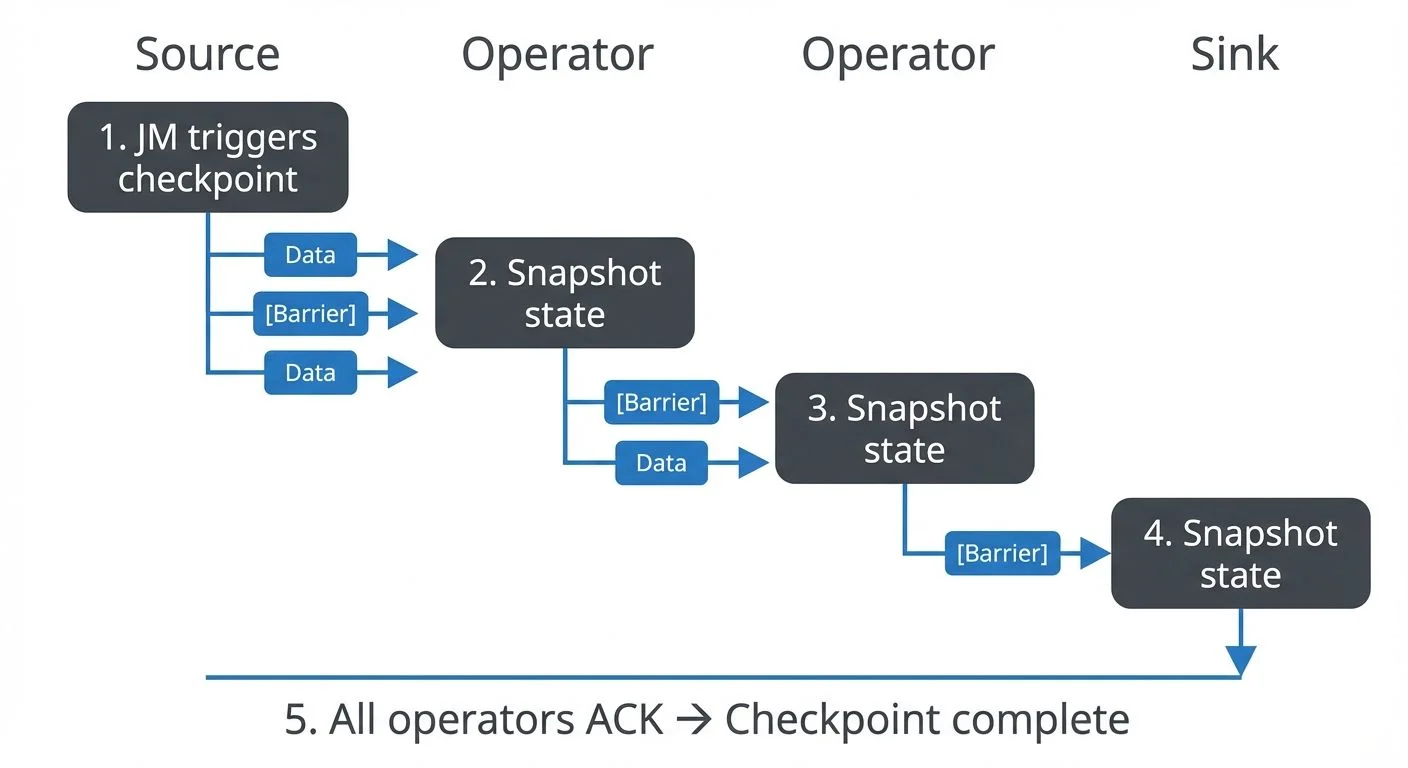

           Checkpointing Flow with Barriers

  Source            Operator          Operator          Sink
    │                  │                 │               │
    ├─ Data ──────────▶│                 │               │
    ├─ Data ──────────▶├─ Data ─────────▶│               │
    ├─ Data ──────────▶├─ Data ─────────▶├─ Data ───────▶│
    │                  │                 │               │
  ┌─┴─────────────┐    │                 │               │
  │ 1. JM triggers│    │                 │               │
  │  checkpoint   │    │                 │               │
  └───────────────┘    │                 │               │
    │                  │                 │               │
    ├─ [Barrier] ──────▶│                 │               │
    ├─ Data ──────────▶│                 │               │
    │                  │                 │               │
    │               ┌──┴───────────┐     │               │
    │               │ 2. Snapshot  │     │               │
    │               │    state     │     │               │
    │               └──┬───────────┘     │               │
    │                  │                 │               │
    │                  ├─ [Barrier] ─────▶│               │
    │                  ├─ Data ─────────▶│               │
    │                  │                 │               │
    │                  │              ┌──┴──────────┐    │
    │                  │              │ 3. Snapshot │    │
    │                  │              │    state    │    │
    │                  │              └──┬──────────┘    │
    │                  │                 │               │
    │                  │                 ├─ [Barrier] ───▶│
    │                  │                 │               │
    │                  │                 │            ┌──┴────────┐
    │                  │                 │            │4. Snapshot│
    │                  │                 │            │   state   │
    │                  │                 │            └──┬────────┘
    ▼                  ▼                 ▼               ▼

              5. All operators ACK → Checkpoint complete

1. The JobManager triggers a checkpoint by injecting special barrier markers into the data streams

2. Barriers flow through the topology with the data stream

3. When an operator receives barriers from all input channels, it snapshots its state to the configured checkpoint storage

4. The operator then forwards the barrier to downstream operators

5. Once all operators acknowledge the checkpoint, it's marked as complete

Checkpointing configuration requires careful tuning:

# flink-conf.yaml
execution.checkpointing.interval: 60000  # Checkpoint every 60 seconds
execution.checkpointing.mode: EXACTLY_ONCE
execution.checkpointing.timeout: 600000  # 10 minute timeout
execution.checkpointing.max-concurrent-checkpoints: 1
execution.checkpointing.min-pause: 30000  # Minimum 30s between checkpoints
state.backend.incremental: true  # Enable incremental checkpoints for RocksDB

Checkpoint intervals represent a trade-off: shorter intervals reduce potential data reprocessing after failure but increase overhead and storage costs. Production applications typically checkpoint every 30-120 seconds, depending on data volume and recovery time requirements.

The exactly-once processing semantics guarantee that each record affects the final results exactly once, even in the presence of failures. This requires coordinating checkpoints with external systems (sources and sinks) that support transactional or idempotent writes.

Savepoints: Versioned Application State

While checkpoints are automatic and lightweight, savepoints are manually triggered, versioned snapshots of application state. Savepoints enable operational workflows that checkpoints cannot:

• Application upgrades: Deploy new application logic while maintaining existing state

• Cluster migration: Move applications between Flink clusters

• Flink version upgrades: Update the Flink runtime version

• A/B testing: Run different application versions with identical initial state

• Time travel: Revert to a known good state after detecting data quality issues

Creating and using savepoints:

# Trigger a savepoint
./bin/flink savepoint <jobId> [targetDirectory]

# Start job from savepoint
./bin/flink run -s <savepointPath> myApplication.jar

# Dispose of old savepoint
./bin/flink savepoint -d <savepointPath

Savepoints are larger and slower than checkpoints because they use a canonical, version-stable format designed for long-term storage. Applications should trigger savepoints before planned maintenance rather than relying on automatic checkpoints.

Integration with Kafka and the Streaming Ecosystem

Flink's state management integrates deeply with Apache Kafka through coordinated checkpointing. When Flink checkpoints successfully, it commits Kafka consumer offsets transactionally, ensuring exactly-once processing end-to-end.

The Kafka source connector participates in Flink's checkpointing by:

1. Storing current partition offsets as operator state

2. Committing offsets to Kafka only after checkpoint completion

3. Restoring offsets from state upon recovery

This coordination prevents message loss and duplication:

KafkaSource<Event> source = KafkaSource.<Event>builder()
    .setBootstrapServers("broker:9092")
    .setTopics("events")
    .setGroupId("flink-consumer")
    .setStartingOffsets(OffsetsInitializer.committedOffsets())
    .setValueOnlyDeserializer(new EventDeserializer())
    .build();

DataStream<Event> events = env.fromSource(
    source,
    WatermarkStrategy.forBoundedOutOfOrderness(Duration.ofSeconds(10)),
    "Kafka Source"
);

Similarly, the Kafka sink provides exactly-once guarantees through two-phase commit protocol, coordinating with Flink's checkpointing. Transactions are committed only when checkpoints complete successfully.

For organizations managing complex streaming infrastructures, governance platforms provide visibility into Kafka-Flink integration patterns. Monitoring topic consumption lag, offset commits aligned with Flink checkpoints, and data flow observability helps identify state management issues before they impact production systems.

Production Considerations and Best Practices

Successful production deployments require attention to several operational aspects:

State Size Monitoring: Track state growth over time using Flink's metrics system. Unbounded state growth often indicates logic errors (improper cleanup of old keys, window state not being evicted). Set up alerts when state size grows unexpectedly.

Checkpoint Alignment: Unaligned checkpoints (introduced in Flink 1.11) reduce backpressure impact during checkpointing by allowing barriers to overtake buffered data. Enable for high-throughput applications where checkpoint alignment causes slowdowns.

State TTL: Configure state time-to-live to automatically clean up expired entries:

StateTtlConfig ttlConfig = StateTtlConfig
    .newBuilder(Time.days(7))
    .setUpdateType(StateTtlConfig.UpdateType.OnCreateAndWrite)
    .setStateVisibility(StateTtlConfig.StateVisibility.NeverReturnExpired)
    .build();

ValueStateDescriptor<String> descriptor = new ValueStateDescriptor<>("state", String.class);
descriptor.enableTimeToLive(ttlConfig);

Incremental Checkpointing: For RocksDB backend, enable incremental checkpoints to avoid uploading full state snapshots. This dramatically reduces checkpoint duration and network I/O for large state.

Changelog State Backend: Flink 1.15+ supports the changelog state backend, which materializes state changes immediately to distributed storage. This reduces recovery time at the cost of higher I/O during normal operation.

Retention Policies: Configure checkpoint retention to keep completed checkpoints even after job cancellation, enabling state recovery for debugging or reprocessing scenarios.

Summary

Flink's state management and checkpointing system provides the foundation for fault-tolerant stateful stream processing. Keyed and operator state enable complex computations across time, while configurable state backends balance performance and scalability requirements. Checkpointing implements the Chandy-Lamport algorithm to create consistent distributed snapshots with exactly-once semantics, and savepoints enable operational flexibility through versioned state snapshots.

Production deployments require careful configuration of checkpoint intervals, state backends (typically RocksDB with incremental checkpointing), and integration with external systems like Kafka. Monitoring state size, checkpoint duration, and alignment metrics helps identify issues before they cause outages.

Understanding these mechanisms transforms Flink from a computational framework into a reliable platform for mission-critical streaming applications that maintain correctness guarantees even in the face of failures.
