Delta Lake Transaction Log: How It Works

Delta Lake transforms cloud object storage into a reliable, ACID-compliant data platform through a single critical component: the transaction log. Understanding how this transaction log works is essential for data engineers building modern data lakehouses, as it underpins every feature that differentiates Delta Lake from raw Parquet files on S3 or ADLS.

This article explores the architecture, mechanics, and operational characteristics of Delta Lake's transaction log, providing the technical foundation needed to leverage Delta Lake effectively in production environments.

What Is the Delta Lake Transaction Log?

The Delta Lake transaction log, also called the DeltaLog, is an ordered record of every transaction committed to a Delta table since its creation. Stored as a series of JSON files in the _delta_log subdirectory of your table, this log serves as the single source of truth for the table's current state.

Each transaction appends a new JSON file numbered sequentially (e.g., 00000000000000000000.json, 00000000000000000001.json). These files contain metadata about:

• Add operations: New data files added to the table

• Remove operations: Files marked as logically deleted

• Metadata changes: Schema evolution, table properties

• Protocol changes: Delta Lake version requirements

• Commit info: Timestamp, operation type, isolation level

When a reader queries a Delta table, it reconstructs the current state by reading the transaction log from the beginning (or the last checkpoint) and applying each transaction sequentially. This append-only structure makes the log naturally immutable and provides built-in version control.

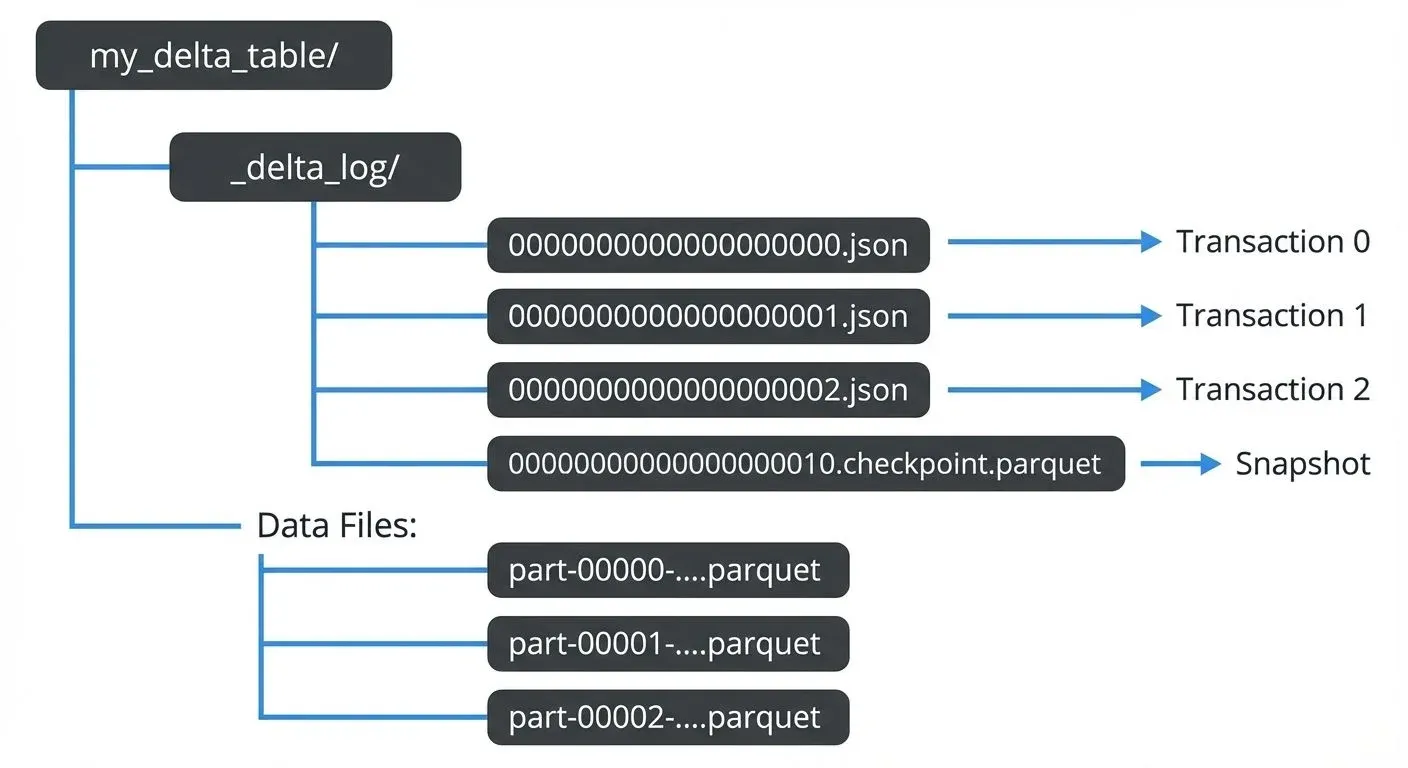

                    Delta Table Structure
┌────────────────────────────────────────────────────────────┐
│                    my_delta_table/                         │
├────────────────────────────────────────────────────────────┤
│  _delta_log/                                               │
│  ├─ 00000000000000000000.json  ◄── Transaction 0          │
│  ├─ 00000000000000000001.json  ◄── Transaction 1          │
│  ├─ 00000000000000000002.json  ◄── Transaction 2          │
│  └─ 00000000000000000010.checkpoint.parquet ◄── Snapshot  │
│                                                             │
│  Data Files:                                               │
│  ├─ part-00000-....parquet                                │
│  ├─ part-00001-....parquet                                │
│  └─ part-00002-....parquet                                │
└────────────────────────────────────────────────────────────┘

The Optimistic Concurrency Commit Protocol

Delta Lake uses an optimistic concurrency control protocol to enable multiple writers to modify a table simultaneously while maintaining ACID guarantees. This protocol relies on atomic file operations supported by cloud object stores.

How Concurrent Writes Work

When a writer wants to commit changes:

1. Read Phase: The writer reads the latest version of the transaction log to understand the current state

2. Execution Phase: The writer performs the operation (write new Parquet files, compute statistics, etc.)

3. Validation Phase: Before committing, the writer re-reads the log to check if any new commits occurred

4. Commit Phase: If no conflicts exist, the writer attempts to atomically write the next sequential log entry

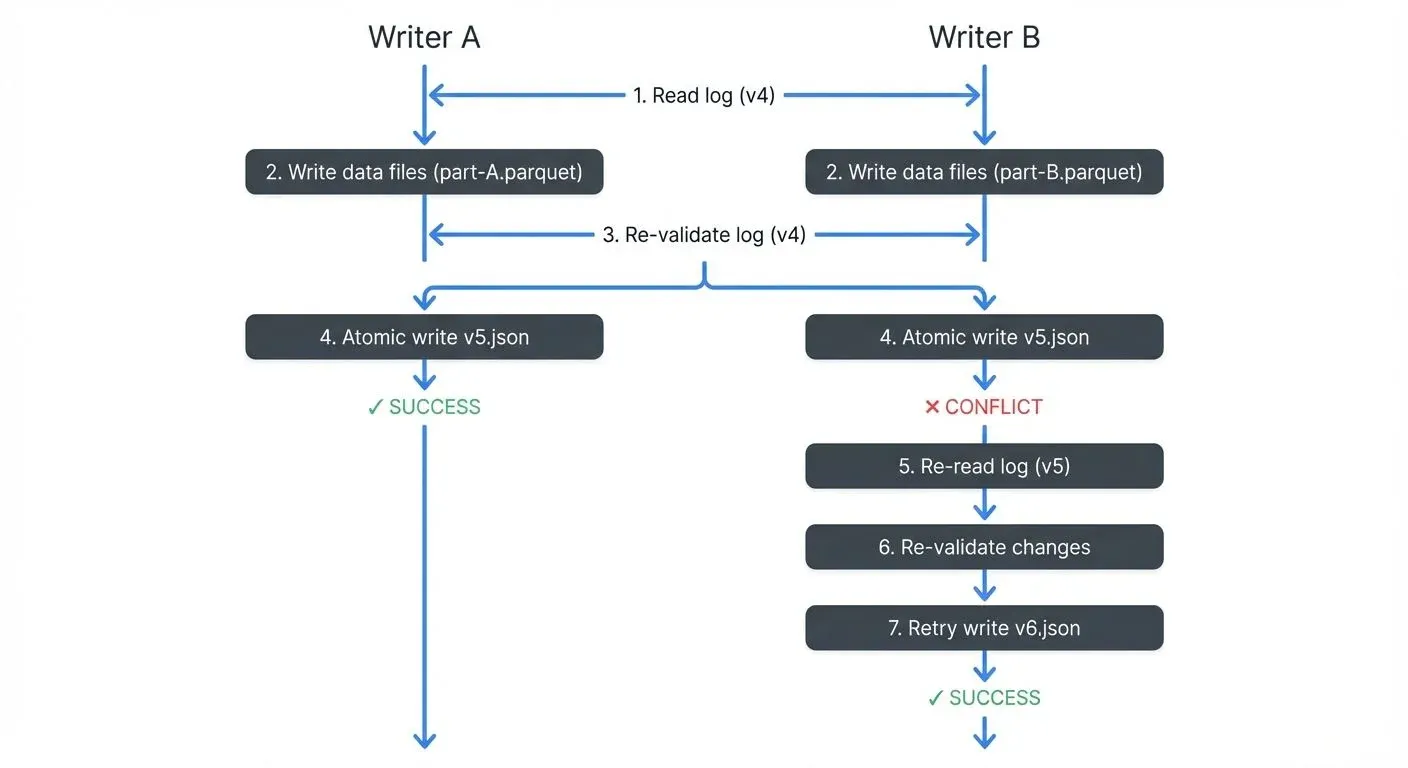

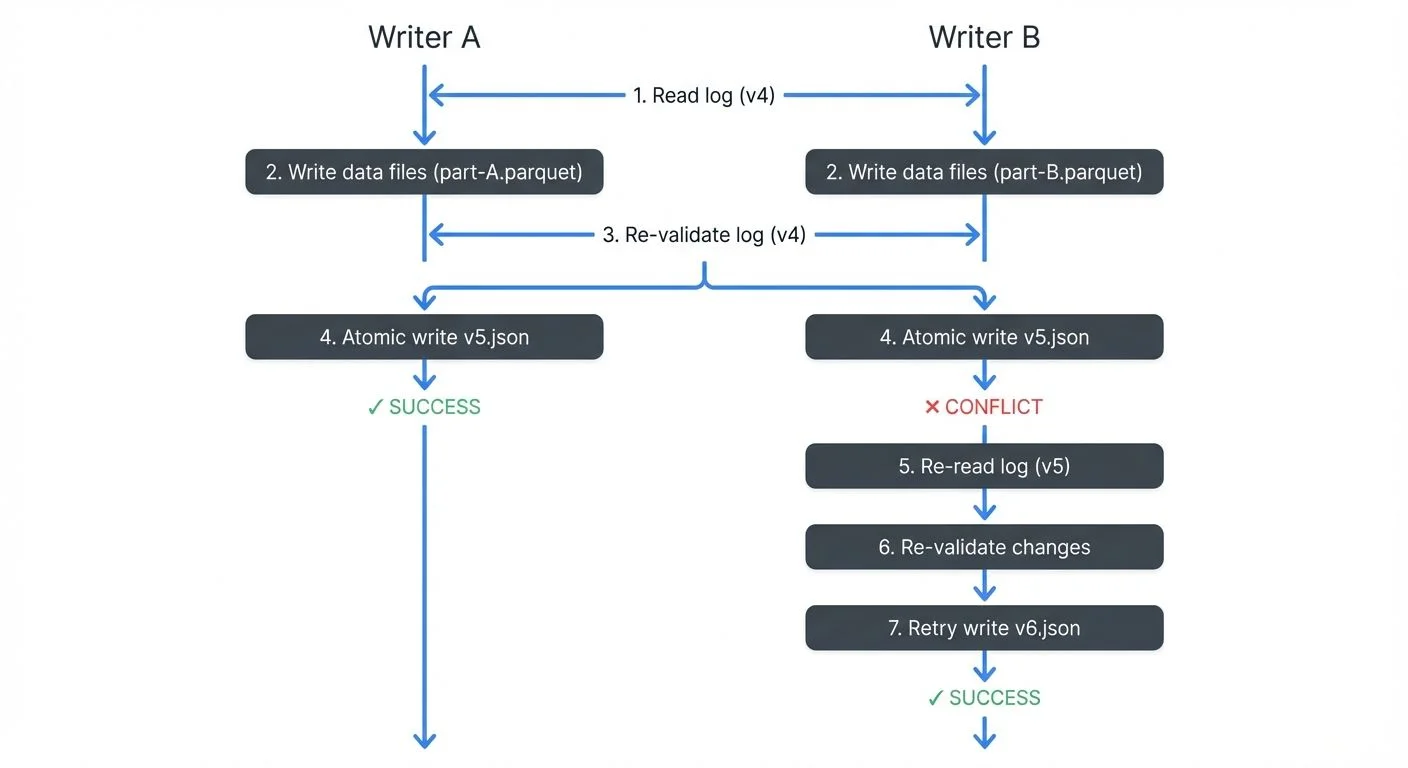

              Optimistic Concurrency Protocol

   Writer A                          Writer B
      │                                 │
      ├─ 1. Read log (v4) ─────────────┤─ 1. Read log (v4)
      │                                 │
      ├─ 2. Write data files            ├─ 2. Write data files
      │    (part-A.parquet)             │    (part-B.parquet)
      │                                 │
      ├─ 3. Re-validate log (v4)       ├─ 3. Re-validate log (v4)
      │                                 │
      ├─ 4. Atomic write v5.json ──────┼─ 4. Atomic write v5.json
      │         ✓ SUCCESS               │         ✗ CONFLICT
      │                                 │
      │                                 ├─ 5. Re-read log (v5)
      │                                 │
      │                                 ├─ 6. Re-validate changes
      │                                 │
      │                                 └─ 7. Retry write v6.json
      │                                           ✓ SUCCESS
      ▼                                           ▼

The atomicity guarantee comes from cloud storage's conditional PUT operations (e.g., S3's PUT-if-absent, ADLS's create-if-not-exists). If two writers simultaneously attempt to create 00000000000000000005.json, exactly one succeeds. The failed writer detects the conflict, re-validates against the new state, and retries if the operation is still valid.

Conflict Detection and Resolution

Delta Lake categorizes conflicts into two types:

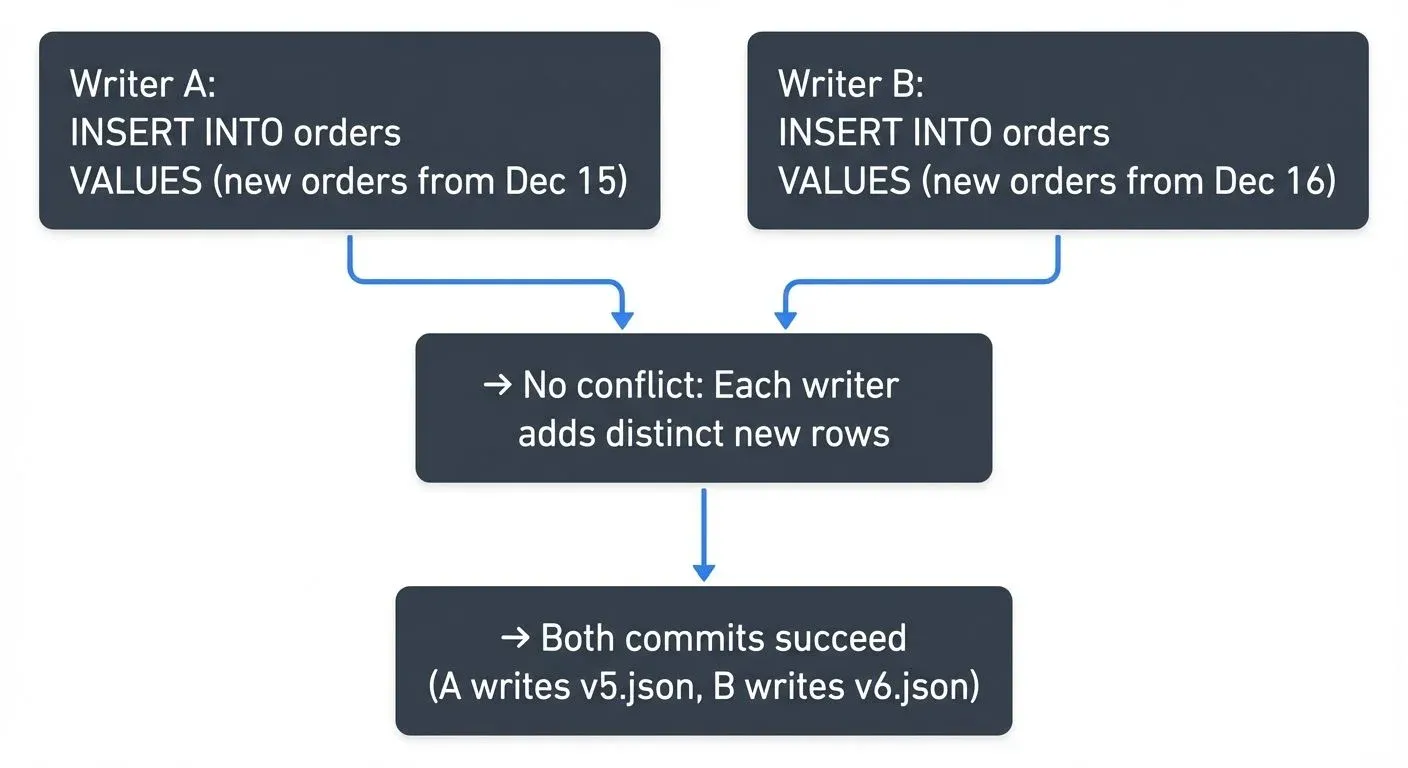

• Blind append conflicts: Two writers adding new data with no predicate filtering (typically allowed to proceed)

• Read-modify-write conflicts: Operations that depend on reading existing data (e.g., UPDATE, DELETE, MERGE with predicates)

For read-modify-write operations, Delta Lake checks if the files read during the operation were modified by concurrent transactions. If so, the transaction fails and must retry with the updated state.

// Example transaction log entry (simplified)
{
  "commitInfo": {
    "timestamp": 1701936000000,
    "operation": "MERGE",
    "operationMetrics": {
      "numTargetRowsUpdated": "1250",
      "numTargetRowsInserted": "340"
    }
  },
  "add": {
    "path": "part-00005-abc123.snappy.parquet",
    "partitionValues": {"date": "2024-12-01"},
    "size": 524288,
    "modificationTime": 1701936000000,
    "dataChange": true,
    "stats": "{\"numRecords\": 1590, \"minValues\": {...}, \"maxValues\": {...}}"
  },
  "remove": {
    "path": "part-00001-xyz789.snappy.parquet",
    "deletionTimestamp": 1701936000000
  }
}

Checkpointing: Managing Transaction Log Growth

As tables evolve through hundreds or thousands of commits, reading the entire transaction log becomes inefficient. Delta Lake addresses this through checkpointing.

How Checkpoints Work

Every 10 commits (by default), Delta Lake generates a checkpoint file that represents the complete table state at that version. This checkpoint is a Parquet file containing the same information as the aggregated JSON log entries up to that point.

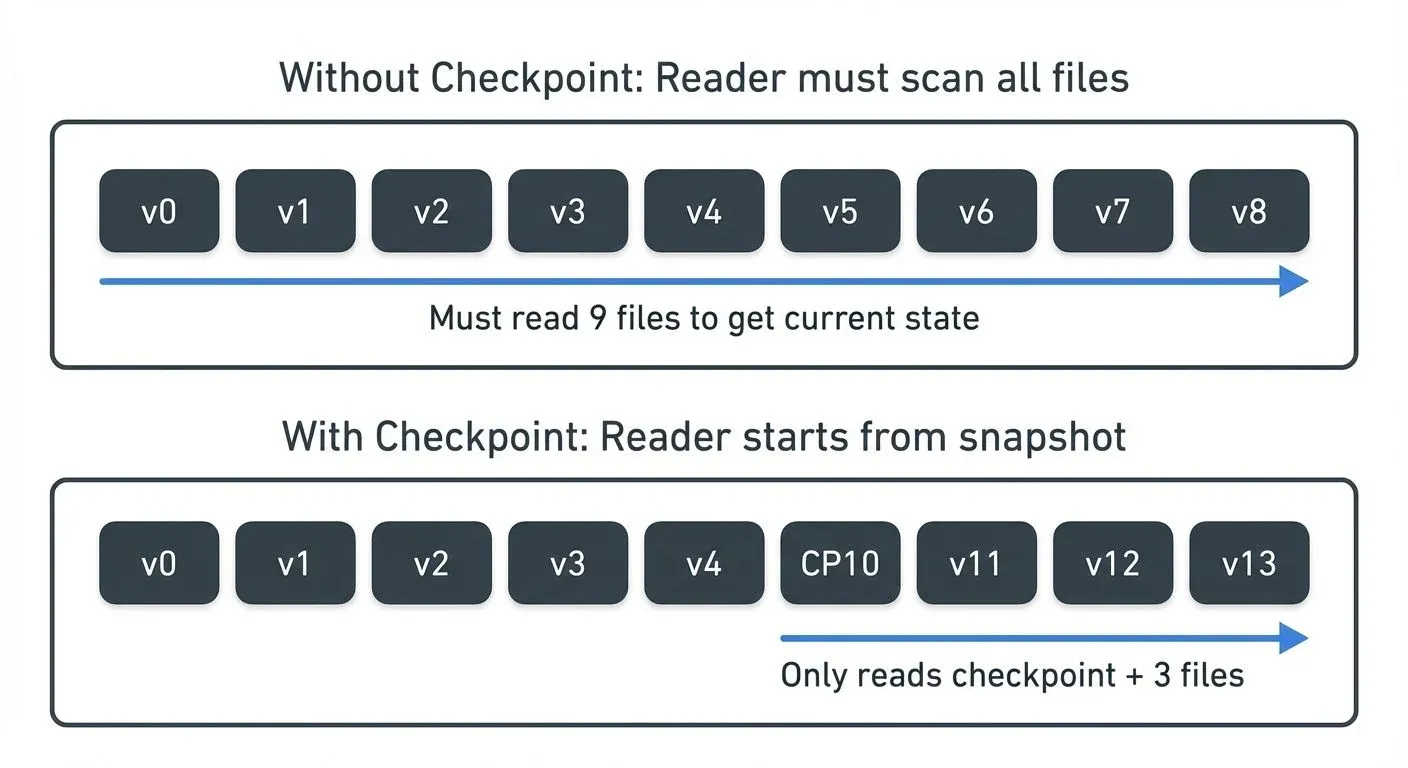

           Transaction Log with Checkpoints

┌──────────────────────────────────────────────────────┐
│  Without Checkpoint: Reader must scan all files      │
│  ┌────┬────┬────┬────┬────┬────┬────┬────┬────┐    │
│  │ v0 │ v1 │ v2 │ v3 │ v4 │ v5 │ v6 │ v7 │ v8 │    │
│  └────┴────┴────┴────┴────┴────┴────┴────┴────┘    │
│   ▲───────────────────────────────────────────▶     │
│        Must read 9 files to get current state        │
└──────────────────────────────────────────────────────┘

┌──────────────────────────────────────────────────────┐
│  With Checkpoint: Reader starts from snapshot        │
│  ┌────┬────┬────┬────┬────┬────┬────┬────┬────┐    │
│  │ v0 │ v1 │ v2 │ v3 │ v4 │CP10│v11 │v12 │v13 │    │
│  └────┴────┴────┴────┴────┴────┴────┴────┴────┘    │
│                       ▲────────────────────▶         │
│                  Only reads checkpoint + 3 files     │
└──────────────────────────────────────────────────────┘

Checkpoint files use the naming pattern 00000000000000000010.checkpoint.parquet and allow readers to:

1. Start from the checkpoint (version 10)

2. Apply only subsequent transactions (11, 12, 13...)

3. Reconstruct the current state efficiently

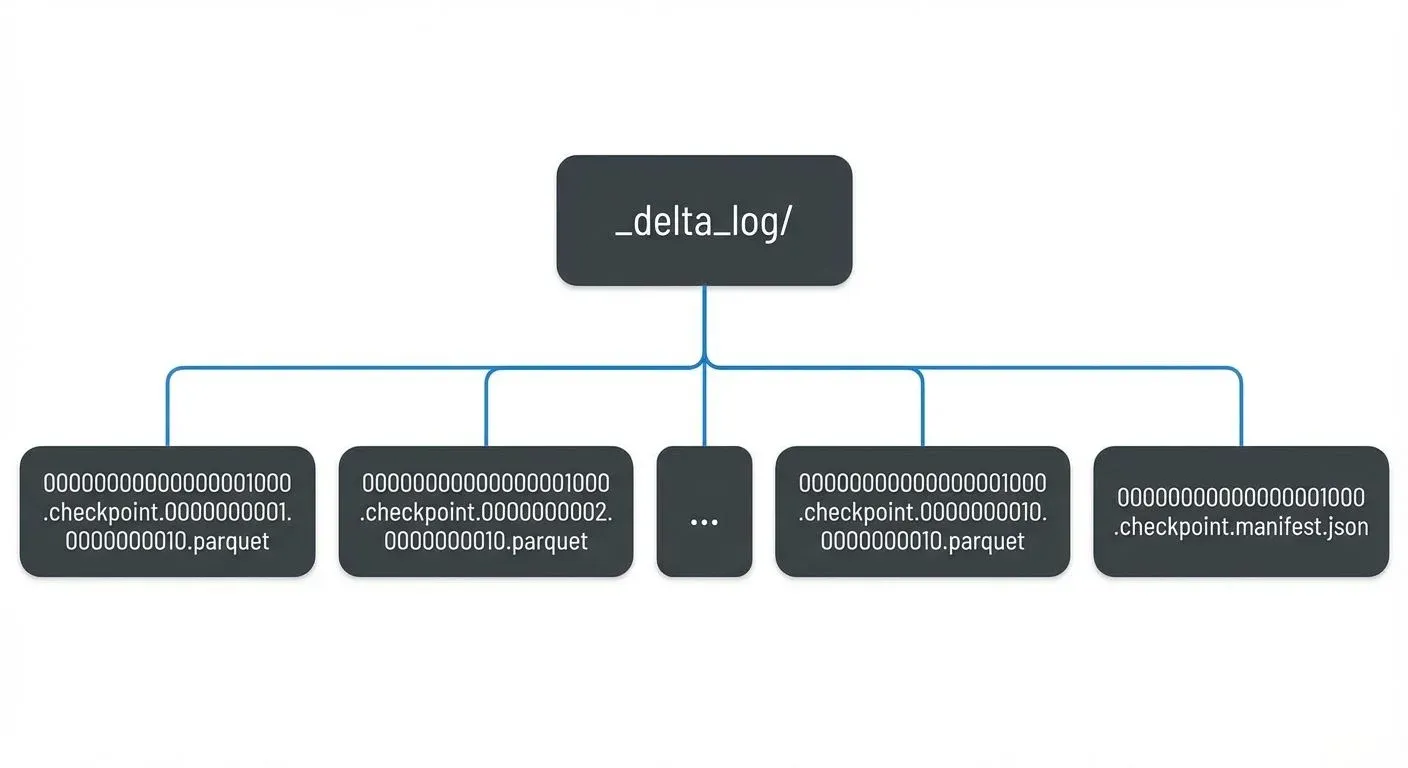

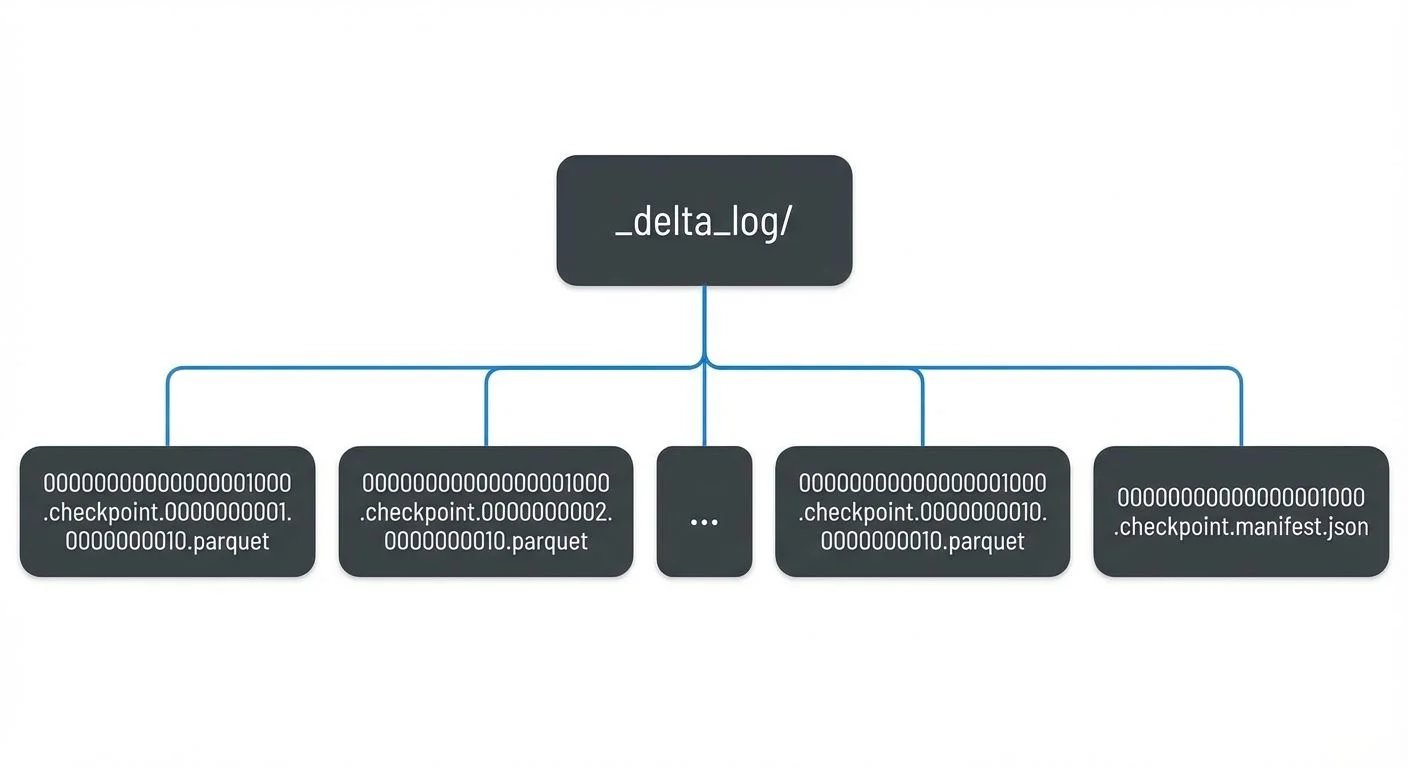

For very large tables, Delta Lake can create multi-part checkpoints split across multiple Parquet files, with a JSON manifest coordinating the parts:

_delta_log/
├── 00000000000000001000.checkpoint.0000000001.0000000010.parquet
├── 00000000000000001000.checkpoint.0000000002.0000000010.parquet
├── ...
├── 00000000000000001000.checkpoint.0000000010.0000000010.parquet
└── 00000000000000001000.checkpoint.manifest.json

Checkpointing runs automatically during write operations, ensuring readers have recent snapshots even on frequently updated tables.

Time Travel and Versioning

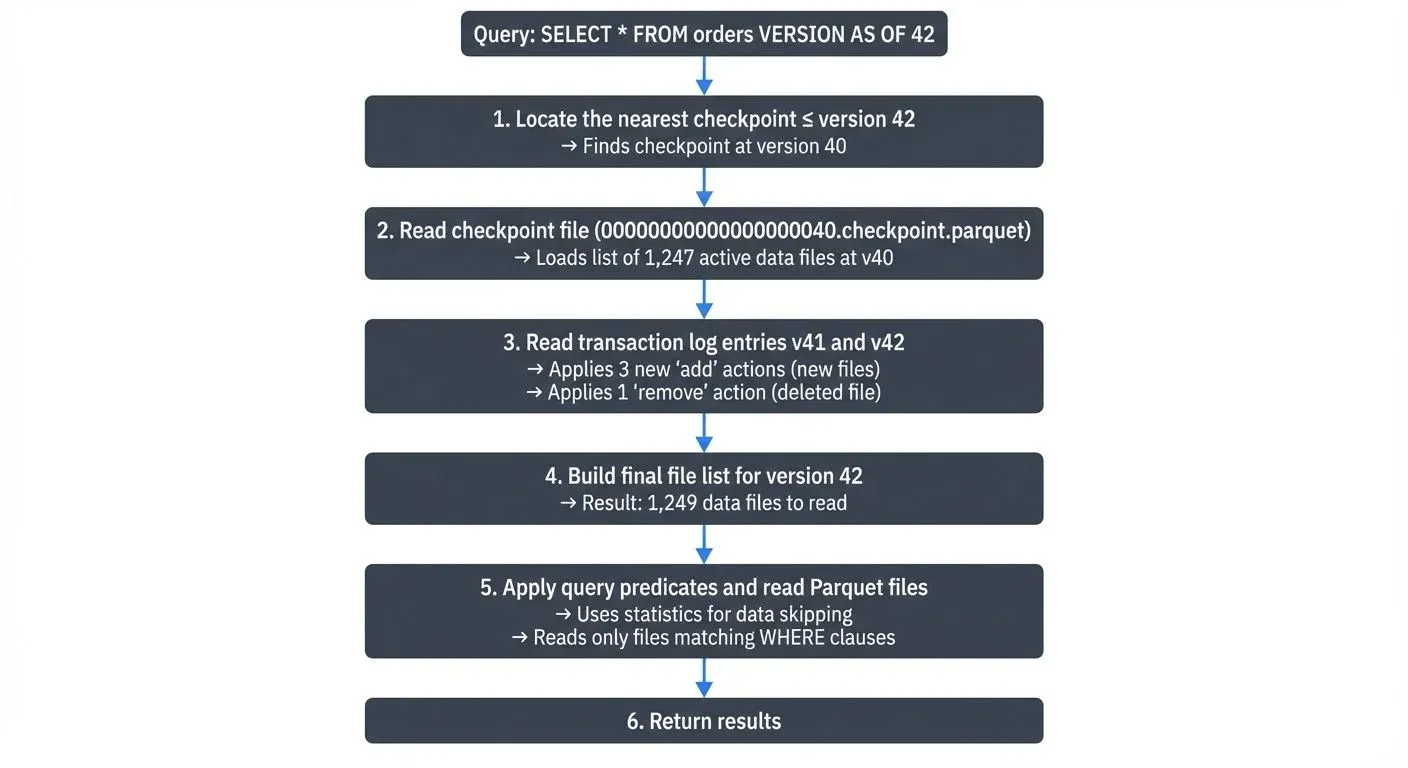

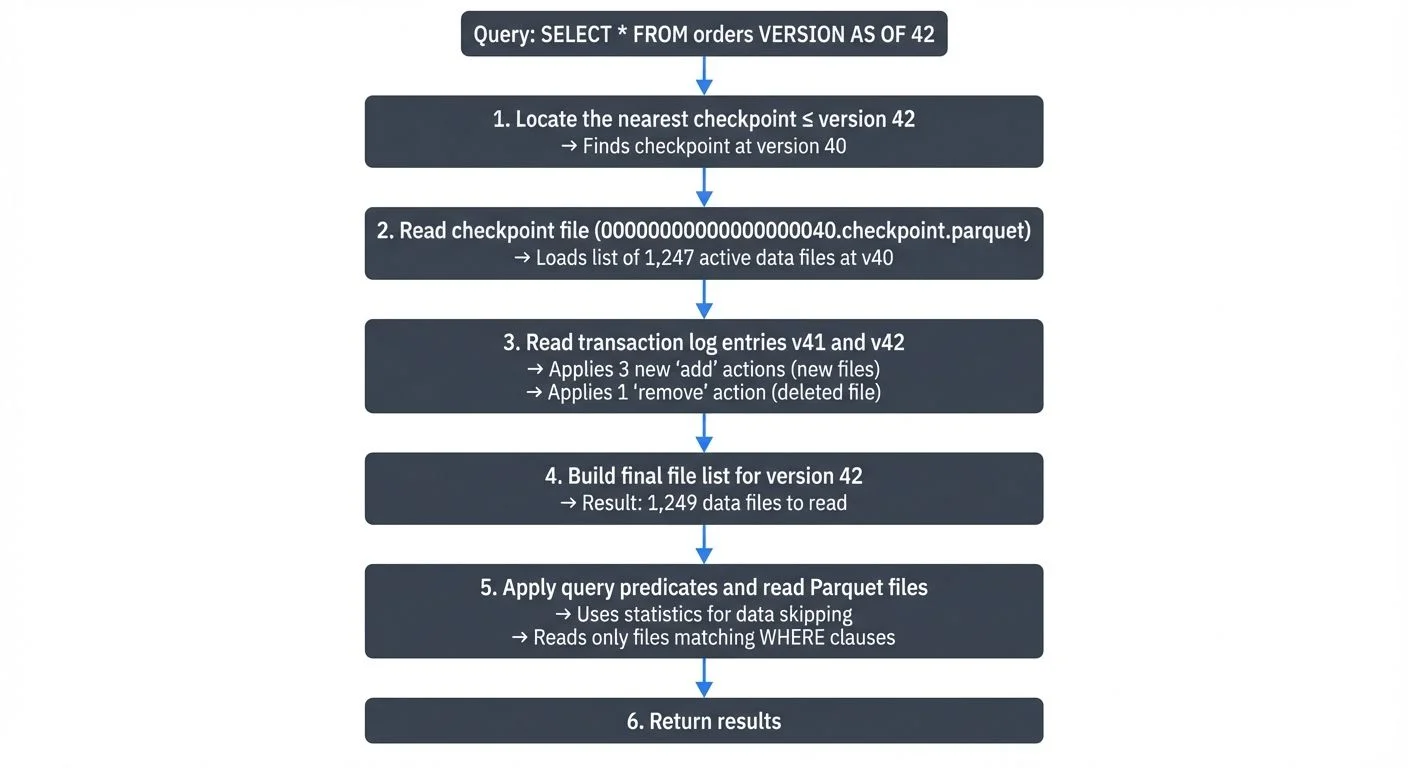

The transaction log's immutable, append-only nature enables time travel queries, allowing you to query historical versions of your data. Each transaction log entry represents a discrete version of the table.

You can query historical data using:

-- Query table as of version 42
SELECT * FROM my_table VERSION AS OF 42

-- Query table as of timestamp
SELECT * FROM my_table TIMESTAMP AS OF '2024-12-01 10:00:00'

Delta Lake maps timestamps to versions by reading the commitInfo.timestamp fields in the transaction log. This feature supports:

• Auditing: Track data lineage and changes over time

• Reproducibility: Recreate historical analyses with exact data states

• Rollback: Revert tables to previous versions after errors

• A/B testing: Compare results across different table states

The retention of old data files and log entries is controlled by the VACUUM command and retention policies. By default, Delta Lake retains 30 days of history, though this is configurable based on compliance and storage requirements.

Streaming Integration and Real-Time Processing

The transaction log architecture makes Delta Lake particularly well-suited for streaming data pipelines. Streaming frameworks can efficiently tail the transaction log to process new data incrementally.

Streaming Reads

Apache Spark Structured Streaming and other engines can use Delta tables as streaming sources by monitoring the transaction log for new commits. The streaming engine tracks the last processed version and reads only newly added files referenced in subsequent transactions, enabling efficient incremental processing.

Streaming Writes

Streaming writes to Delta tables benefit from exactly-once semantics through idempotent retries. If a streaming batch fails mid-commit, the retry attempts to create the same transaction log entry (with the same version number), which either succeeds or discovers the previous attempt succeeded.

This streaming integration extends Delta Lake's value beyond batch processing into real-time architectures, supporting use cases like:

• CDC (Change Data Capture) ingestion with MERGE operations

• Real-time analytics dashboards

• Event-driven architectures with guaranteed ordering

• Lambda architecture implementations with unified batch/streaming code

For organizations managing complex streaming topologies, platforms like Conduktor provide governance and visibility across streaming pipelines, complementing Delta Lake's transaction guarantees with operational monitoring, schema validation, and data quality checks.

Transaction Log Schema and Internals

Understanding the transaction log's internal structure helps when debugging, optimizing, or building custom tooling around Delta Lake.

Core Action Types

Each transaction log entry contains one or more actions:

Statistics and Data Skipping

The add actions include per-file statistics in the stats field:

{
  "add": {
    "path": "date=2024-12-01/part-00000.parquet",
    "stats": "{\"numRecords\":10000,\"minValues\":{\"id\":1,\"timestamp\":\"2024-12-01T00:00:00\"},\"maxValues\":{\"id\":10000,\"timestamp\":\"2024-12-01T23:59:59\"}}"
  }
}

These statistics enable data skipping: when a query filters on id = 5000, Delta Lake reads the transaction log, checks the min/max statistics, and skips files where 5000 < minValues.id or 5000 > maxValues.id. This dramatically reduces the amount of data scanned, improving query performance without requiring manual partition management.

Protocol Evolution

The protocol action specifies:

• minReaderVersion: Minimum Delta Lake reader version needed

• minWriterVersion: Minimum Delta Lake writer version needed

This allows Delta Lake to evolve with new features (column mapping, deletion vectors, liquid clustering) while maintaining compatibility. Older clients that don't support new features will fail fast with clear error messages rather than producing incorrect results.

Performance Considerations and Best Practices

To maximize the transaction log's effectiveness:

1. Checkpoint frequency: Adjust delta.checkpointInterval based on commit frequency (default: 10)

2. Statistics collection: Ensure statistics are computed for filter columns to enable data skipping

3. Log retention: Balance history requirements with storage costs using delta.logRetentionDuration

4. Concurrent writes: Design ETL patterns to minimize read-modify-write conflicts

5. File size: Target 128MB-1GB data files to keep transaction log entries manageable

For tables with extremely high commit rates (thousands per hour), consider:

• Batching smaller writes into larger transactions

• Using OPTIMIZE to consolidate small files periodically

• Monitoring transaction log size and checkpoint generation latency

Summary

The Delta Lake transaction log is the foundational mechanism that transforms object storage into a reliable lakehouse platform. By maintaining an ordered, immutable log of all table operations, Delta Lake delivers:

• ACID guarantees through optimistic concurrency control

• Time travel via version history and timestamp mapping

• Efficient reads through checkpointing and data skipping statistics

• Streaming integration with exactly-once semantics and incremental processing

• Schema evolution with protocol versioning and backward compatibility

Understanding the transaction log's architecture helps data engineers design more efficient pipelines, debug production issues, and leverage advanced features like time travel and concurrent writes effectively. As Delta Lake continues to evolve with features like deletion vectors and liquid clustering, the transaction log remains the core abstraction that makes these capabilities possible while maintaining strong consistency guarantees.

For production deployments, combine Delta Lake's transactional guarantees with comprehensive monitoring and governance tools to ensure data quality and operational visibility across your lakehouse architecture.

Sources and References

• Delta Lake Transaction Log Protocol Specification - Official protocol documentation

• Diving Into Delta Lake: Unpacking The Transaction Log - Databricks engineering deep dive

• Delta Lake: High-Performance ACID Table Storage over Cloud Object Stores - VLDB 2020 research paper

• Delta Lake GitHub Repository - Open-source implementation and examples

• Apache Spark Structured Streaming + Delta Lake - Streaming integration guide
