Introduction to Lakehouse Architecture

Modern organizations face a critical challenge: how to efficiently store, process, and analyze massive volumes of diverse data types. For years, data teams have been forced to choose between the rigid structure of data warehouses and the flexible chaos of data lakes. Enter lakehouse architecture—a unified platform that promises the best of both worlds.

What is Lakehouse Architecture?

Lakehouse architecture is a modern data management paradigm that combines the flexibility and cost-effectiveness of data lakes with the performance and ACID transaction guarantees of data warehouses. Rather than maintaining separate systems for different workloads, a lakehouse provides a single, unified platform for all your data needs.

At its core, a lakehouse stores data in low-cost object storage (similar to data lakes) while implementing a metadata and governance layer on top (similar to data warehouses). This architecture enables both business intelligence queries and machine learning workloads to operate on the same data without requiring costly and error-prone data movement between systems.

The Evolution: From Warehouses to Lakes to Lakehouses

Traditional Data Warehouses

Data warehouses emerged in the 1980s as specialized databases optimized for analytical queries. They provide:

• Structured data storage with predefined schemas

• ACID transactions ensuring data consistency

• High-performance SQL queries for business intelligence

• Data quality enforcement through schema validation

However, warehouses come with significant limitations. They're expensive to scale, struggle with unstructured data (images, videos, logs), and require costly ETL processes to load data. Their rigid schemas make them inflexible for rapidly changing business needs.

The Data Lake Era

Data lakes gained popularity in the 2010s as organizations needed to store massive volumes of diverse data types at lower costs. Built on technologies like Hadoop and cloud object storage, data lakes offer:

• Schema-on-read flexibility allowing storage of any data format

• Cost-effective storage using commodity hardware or cloud storage

• Support for unstructured data including logs, images, and streaming data

• Native machine learning support with direct access to raw data

Despite these advantages, data lakes introduced new problems. Without proper governance, they often became "data swamps"—disorganized repositories where data quality degraded over time. They lacked ACID transaction support, making it difficult to ensure data consistency. Performance for SQL queries was often poor compared to warehouses.

The Lakehouse Solution

Lakehouse architecture emerged to address the limitations of both approaches. By adding a transaction layer on top of data lake storage, lakehouses provide:

• Unified storage for all data types in open formats

• ACID transactions through technologies like Delta Lake, Apache Iceberg, or Apache Hudi

• Schema evolution supporting both schema-on-write and schema-on-read

• Performance optimization through indexing, caching, and data layout optimizations

• Built-in governance with fine-grained access controls and audit logging

Core Components of Lakehouse Architecture

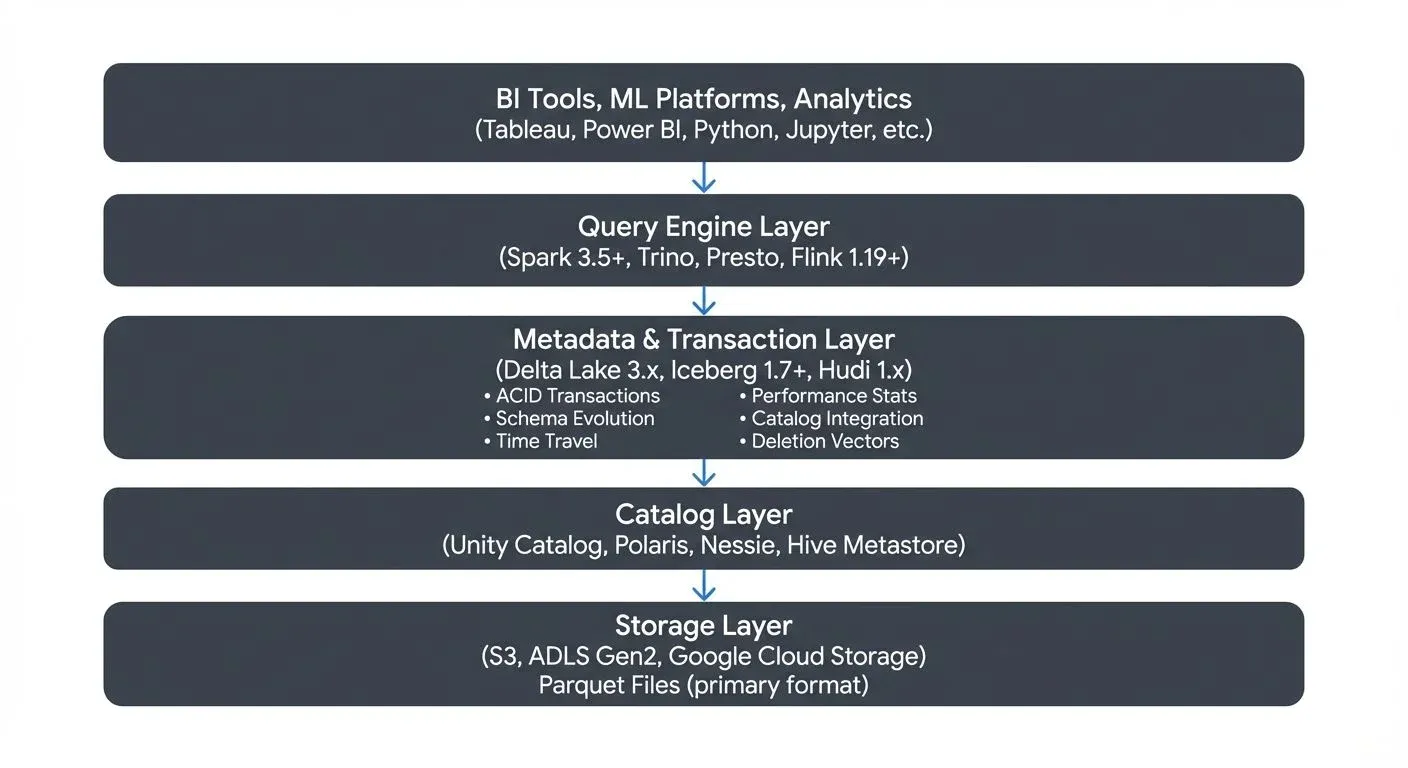

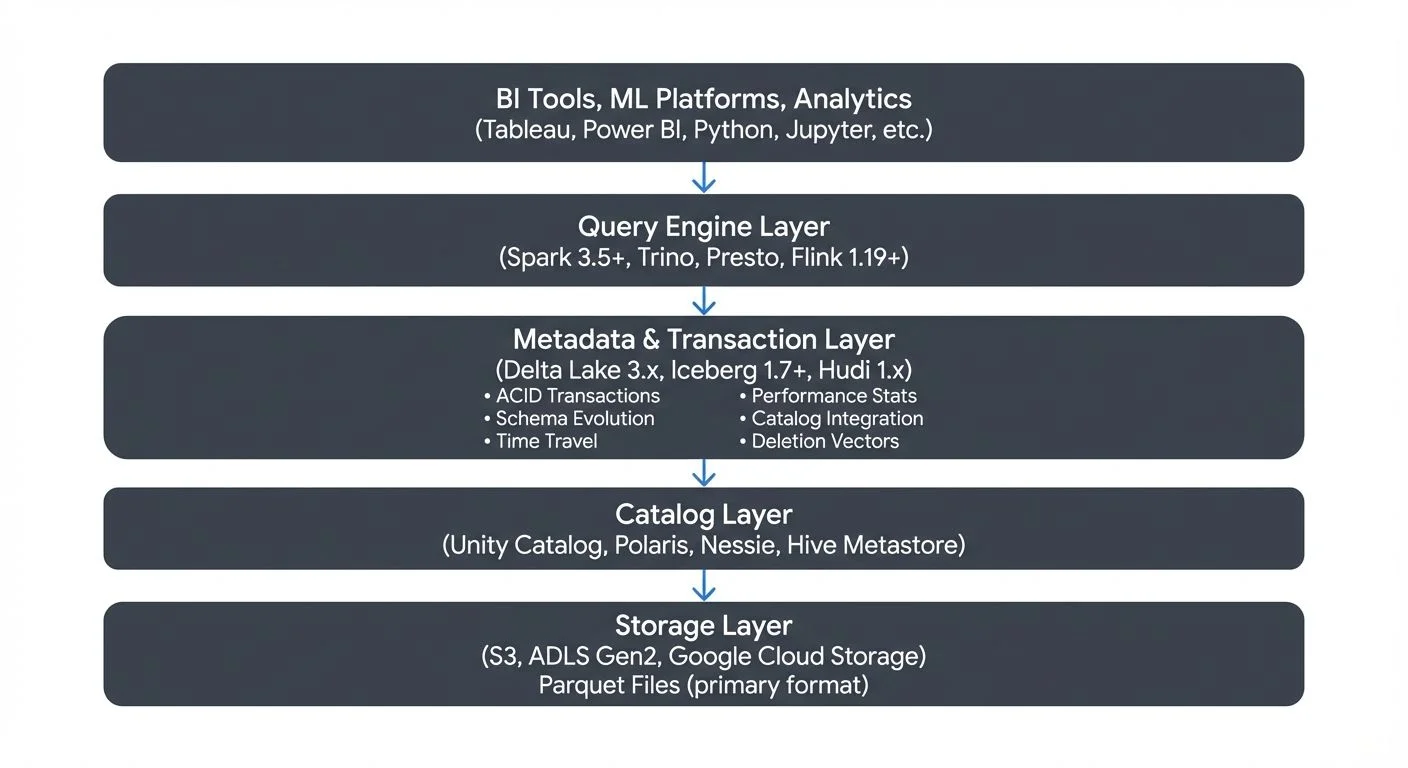

A typical lakehouse architecture consists of several key layers:

┌─────────────────────────────────────────────────────────┐
│           BI Tools, ML Platforms, Analytics             │
│         (Tableau, Power BI, Python, Spark, etc.)        │
└─────────────────────────────────────────────────────────┘
                           ↕
┌─────────────────────────────────────────────────────────┐
│              Query Engine Layer                         │
│    (Spark SQL, Presto, Trino, Databricks SQL)          │
└─────────────────────────────────────────────────────────┘
                           ↕
┌─────────────────────────────────────────────────────────┐
│         Metadata & Transaction Layer                    │
│     (Delta Lake, Apache Iceberg, Apache Hudi)          │
│   • ACID Transactions  • Schema Management             │
│   • Time Travel        • Data Versioning               │
└─────────────────────────────────────────────────────────┘
                           ↕
┌─────────────────────────────────────────────────────────┐
│              Storage Layer                              │
│    (S3, Azure Data Lake, Google Cloud Storage)         │
│         Parquet, ORC, Avro Files                       │
└─────────────────────────────────────────────────────────┘

Storage Layer

The foundation uses cost-effective object storage (AWS S3, Azure Data Lake Storage, or Google Cloud Storage) to store data in open file formats like Parquet, ORC, or Avro. This ensures vendor independence and cost efficiency.

Metadata & Transaction Layer

This critical layer provides lakehouse capabilities through table formats like:

• Delta Lake: Developed by Databricks, adds ACID transactions and time travel to data lakes

• Apache Iceberg: Created by Netflix, offers partition evolution and hidden partitioning

• Apache Hudi: Optimized by Uber, excels at incremental data processing and upserts

These formats track which files belong to which table version, manage concurrent writes, and enable time travel queries.

Query Engine Layer

Compute engines like Apache Spark, Presto, Trino, or cloud-native SQL engines execute queries against the lakehouse. They leverage the metadata layer to optimize query plans and read only relevant data files.

Analytics & ML Layer

Business intelligence tools, data science platforms, and machine learning frameworks connect directly to the lakehouse, eliminating the need for separate systems.

Streaming Integration in Lakehouse Architecture

One of the most powerful aspects of lakehouse architecture is its native support for both batch and streaming data processing. Modern data platforms must handle real-time data streams from applications, IoT devices, and event-driven systems.

Streaming Data Ingestion

Lakehouse platforms integrate seamlessly with streaming technologies:

• Apache Kafka serves as the primary streaming backbone for real-time event ingestion

• Apache Flink and Spark Structured Streaming process streams before writing to the lakehouse

• Change Data Capture (CDC) tools continuously sync database changes into the lakehouse

Stream Processing Management

Managing streaming infrastructure requires specialized expertise and governance. Kafka management platforms provide comprehensive capabilities for data teams to:

• Monitor and manage Kafka clusters with intuitive dashboards

• Enforce data governance policies on streaming data

• Debug streaming pipelines with advanced testing and validation tools

• Ensure data quality before it reaches the lakehouse

By integrating specialized management tools with lakehouse architecture, organizations can build robust end-to-end data pipelines that maintain high data quality from ingestion through analytics.

Unified Batch and Streaming

Lakehouse table formats enable "lambda architecture" simplification by supporting both:

• Batch writes for large-scale data loads and historical processing

• Streaming writes for real-time upserts and incremental updates

• Unified queries that seamlessly read both batch and streaming data

This eliminates the complexity of maintaining separate hot and cold data paths.

Benefits of Lakehouse Architecture

Cost Efficiency

By consolidating data warehouses and data lakes into a single platform, organizations reduce:

• Storage costs through object storage pricing

• Data duplication across multiple systems

• Operational overhead of managing separate platforms

• ETL pipeline complexity and associated compute costs

Simplified Data Management

Data teams benefit from:

• Single source of truth for all analytics and ML workloads

• Reduced data movement and synchronization issues

• Unified security and governance policies

• Simplified data lineage and compliance

Performance and Flexibility

Lakehouses deliver:

• Near-warehouse performance for SQL queries through optimizations

• Direct access to raw data for machine learning

• Support for diverse workloads on the same data

• Real-time and batch processing in one platform

Getting Started with Lakehouse Architecture

For organizations considering lakehouse adoption:

1. Assess current architecture: Identify pain points with existing warehouse and lake separation

2. Choose a table format: Evaluate Delta Lake, Iceberg, or Hudi based on your ecosystem

3. Start with a pilot: Migrate a single use case to validate the approach

4. Build streaming pipelines: Integrate real-time data sources with proper governance

5. Train your team: Invest in upskilling data engineers and analysts on lakehouse concepts

6. Implement governance: Establish data quality, security, and catalog practices from day one

Conclusion

Lakehouse architecture represents a fundamental shift in how organizations approach data infrastructure. By unifying the capabilities of data warehouses and data lakes, lakehouses eliminate architectural complexity while delivering better performance, lower costs, and greater flexibility.

For data architects, CTOs, and data analysts, understanding lakehouse architecture is no longer optional—it's essential for building modern, scalable data platforms. Whether you're starting fresh or evolving an existing infrastructure, the lakehouse approach offers a compelling path forward for organizations serious about becoming data-driven.

The future of data architecture is unified, open, and flexible. The lakehouse makes that future accessible today.
