Schema Evolution in Apache Iceberg

Schema evolution is a critical capability for modern data lakehouses, allowing data engineers to adapt table structures as business requirements change without disrupting existing workloads or rewriting massive datasets. Apache Iceberg provides robust schema evolution capabilities that surpass traditional data lake formats, making it the preferred choice for enterprise data platforms.

Understanding Schema Evolution

Schema evolution refers to the ability to modify a table's structure over time while maintaining compatibility with existing data and queries. In traditional data lakes built on formats like Parquet or ORC, schema changes often require expensive full-table rewrites or complex partition-level operations. Iceberg fundamentally reimagines this process by decoupling the schema definition from the physical data files.

Iceberg tracks schema changes through versioned metadata, allowing multiple schema versions to coexist. Each data file retains its original schema, while Iceberg's metadata layer handles the translation between different schema versions at read time. This architecture enables zero-copy schema evolution for most operations, dramatically reducing the operational overhead of schema changes.

Safe Schema Changes in Iceberg

Iceberg supports several types of schema changes, each with different compatibility guarantees:

Adding Columns

Adding new columns is the most common and safest schema evolution operation. Iceberg allows you to add columns at any position in the table schema, not just at the end:

-- Add a new column to an Iceberg table
ALTER TABLE events
ADD COLUMN user_segment STRING
COMMENT 'User engagement segment';

-- Add a column with a default value
ALTER TABLE events
ADD COLUMN is_premium BOOLEAN DEFAULT false;

When reading older data files that don't contain the new column, Iceberg returns null values (or the specified default) for those columns. This ensures backward compatibility without requiring any data rewrite.

Renaming Columns

Unlike traditional formats that rely on column position or name matching, Iceberg uses unique column IDs for each field. This enables true column renaming without touching data files:

-- Rename a column safely
ALTER TABLE events
RENAME COLUMN user_id TO customer_id;

After renaming, existing queries using the old column name will fail, but the physical data remains unchanged. This prevents silent data corruption that can occur with position-based schemas.

Dropping Columns

Iceberg supports soft column deletion through the DROP COLUMN operation:

-- Drop a column from the schema
ALTER TABLE events
DROP COLUMN deprecated_field;

Dropped columns disappear from the table schema immediately, but the underlying data files retain the column data. This allows for quick schema cleanup without expensive rewrites, and the column can potentially be recovered from historical metadata if needed.

Type Promotion

Iceberg supports safe type promotions that widen data types without loss of precision:

-- Promote integer to long
ALTER TABLE events
ALTER COLUMN event_count TYPE BIGINT;

-- Promote float to double
ALTER TABLE metrics
ALTER COLUMN measurement TYPE DOUBLE;

Supported type promotions include:

• int → long

• float → double

• decimal(P, S) → decimal(P', S) where P' > P

Column Mapping and Identity Columns

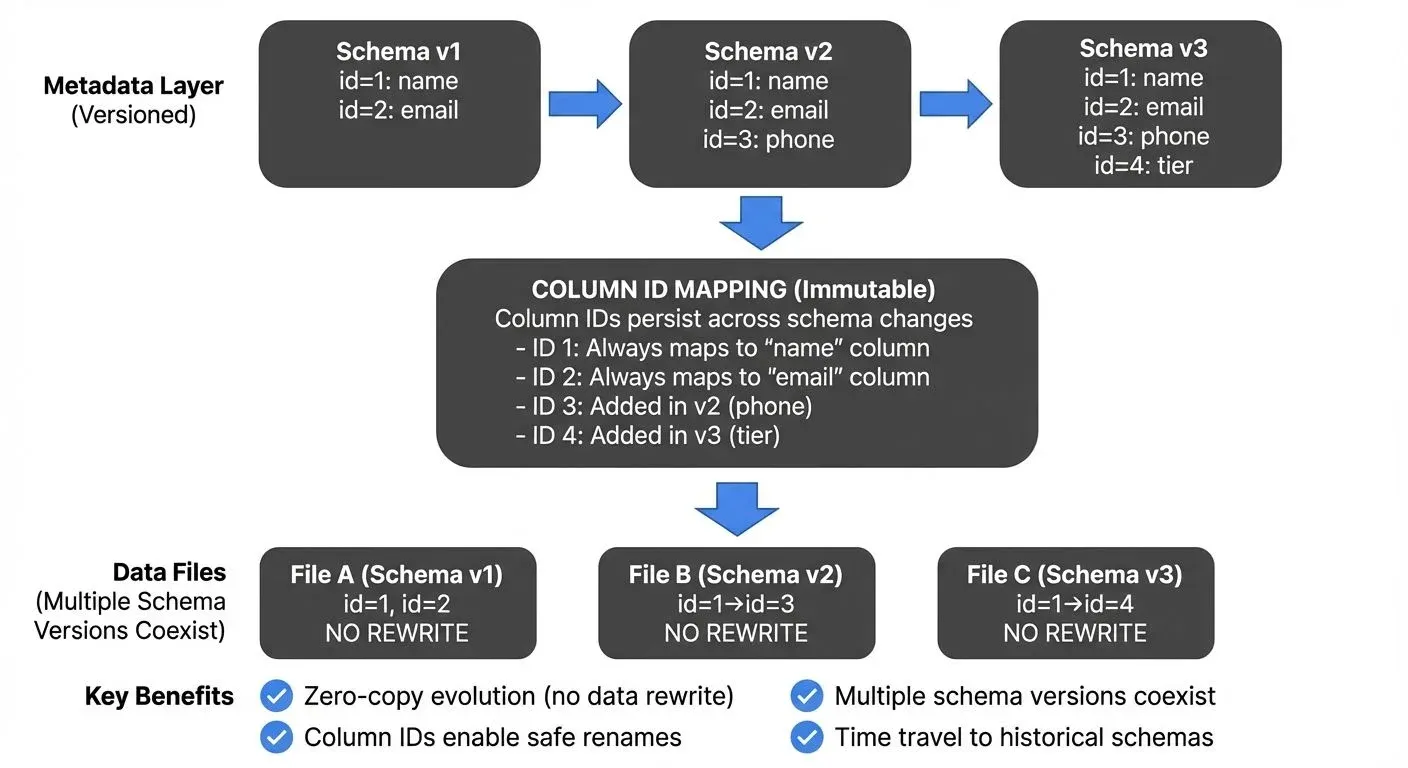

Iceberg's schema evolution capabilities are powered by its sophisticated column mapping system. Each column in an Iceberg table receives a unique identifier at creation time, independent of the column's position or name.

Column ID Assignment

When you create a table, Iceberg assigns monotonically increasing IDs to each column:

from pyspark.sql import SparkSession

spark = SparkSession.builder.appName("iceberg-schema").getOrCreate()

# Create table with implicit column IDs
spark.sql("""
CREATE TABLE catalog.db.events (
  event_id LONG,           -- Assigned ID: 1
  event_type STRING,       -- Assigned ID: 2
  timestamp TIMESTAMP,     -- Assigned ID: 3
  user_id LONG,           -- Assigned ID: 4
  properties MAP<STRING, STRING>  -- Assigned ID: 5
) USING iceberg
""")

These IDs persist throughout the table's lifetime, enabling column renaming and reordering without breaking the connection to physical data files. This design prevents the positional dependency issues common in Hive-style tables.

Name Mapping for Legacy Data

For tables migrated from other formats, Iceberg supports name-based column mapping as a fallback mechanism, providing a migration path from legacy systems while maintaining Iceberg's evolution capabilities.

Streaming Integration and Schema Evolution

Schema evolution in Iceberg integrates seamlessly with streaming data pipelines, a critical requirement for real-time data platforms. Unlike batch-only systems that can coordinate schema changes during maintenance windows, streaming systems must handle schema evolution continuously and gracefully.

Streaming Writes with Evolving Schemas

Iceberg supports streaming writes from Apache Spark Structured Streaming and Apache Flink with automatic schema evolution:

# Spark Structured Streaming with schema evolution
streaming_df = spark.readStream \
    .format("kafka") \
    .option("kafka.bootstrap.servers", "localhost:9092") \
    .option("subscribe", "events") \
    .load()

# Write to Iceberg with merge-on-read and schema evolution
streaming_df.writeStream \
    .format("iceberg") \
    .outputMode("append") \
    .option("path", "catalog.db.events") \
    .option("checkpointLocation", "/tmp/checkpoint") \
    .option("mergeSchema", "true") \
    .start()

When mergeSchema is enabled, Iceberg automatically incorporates new columns discovered in the stream, allowing producers to add fields without coordinating with all consumers.

Schema Registry Integration

For production streaming environments, combining Iceberg with a schema registry (like Confluent Schema Registry) provides governed schema evolution. Governance platforms enhance this workflow by providing visibility into schema changes across your streaming ecosystem, allowing data teams to track schema evolution impact across multiple Iceberg tables and consumer applications.

The integration pattern typically involves:

1. Producer registers schema changes in the schema registry

2. Schema registry validates compatibility rules

3. Streaming pipeline applies schema changes to Iceberg tables

4. Governance tools provide visibility and audit trails

This multi-layered approach ensures that schema evolution remains controlled and traceable, even in complex streaming architectures with dozens of data producers and consumers.

Backward Compatibility and Versioning

Iceberg's metadata versioning provides robust backward compatibility guarantees. Every schema change creates a new metadata version, and Iceberg maintains a complete history of schema evolution:

-- View schema history
SELECT * FROM catalog.db.events.history;

-- Query table at a specific schema version
SELECT * FROM catalog.db.events
VERSION AS OF 'snapshot-id-here';

This time-travel capability extends to schema evolution, allowing you to query data with historical schemas for debugging, auditing, or regulatory compliance. When reading older snapshots, Iceberg applies the schema that was active at that point in time.

Managing Breaking Changes

While Iceberg supports many safe schema changes, some operations remain breaking changes:

• Dropping required columns that downstream queries depend on

• Type changes that narrow precision (e.g., long → int)

• Changing column nullability from nullable to required

For these scenarios, data engineers should:

1. Communicate changes through governance platforms

2. Use Iceberg's table properties to document breaking changes

3. Coordinate with downstream consumers before applying changes

4. Consider deprecation periods for critical columns

Governance platforms can automate impact analysis, identifying which downstream applications and queries will be affected by proposed schema changes before they're applied.

Best Practices for Schema Evolution

To maximize the benefits of Iceberg's schema evolution capabilities, follow these guidelines:

Design for Evolution: When creating tables, anticipate future needs by using appropriate data types from the start. Choose long over int for identifiers, use timestamp with time zone for temporal data, and prefer decimal over float for financial data.

Additive Changes First: Prefer adding new columns over modifying existing ones. This maintains the highest degree of compatibility with existing queries and applications.

Leverage Default Values: When adding required fields to tables with existing data, always specify default values to ensure backward compatibility with older data files.

Test Schema Changes: Use Iceberg's branching and tagging features to test schema changes in isolation before applying them to production tables:

-- Create a branch for testing schema changes
ALTER TABLE events CREATE BRANCH test_schema;

-- Apply schema changes to the branch
ALTER TABLE events.branch_test_schema
ADD COLUMN new_field STRING;

-- Test queries on the branch
SELECT * FROM events.branch_test_schema LIMIT 10;

-- Merge back if successful
ALTER TABLE events REPLACE BRANCH main WITH BRANCH test_schema;

Monitor Schema Drift: Implement monitoring to detect unexpected schema changes, especially in streaming pipelines where multiple producers may modify schemas independently.

Document Changes: Maintain schema evolution documentation in table properties or external governance systems, providing context for future data engineers about why changes were made.

Summary

Apache Iceberg's schema evolution capabilities represent a significant advancement over traditional data lake formats. Through column-level identity tracking, versioned metadata, and zero-copy evolution, Iceberg enables data engineers to adapt table structures safely and efficiently as business requirements evolve.

Key takeaways:

• Iceberg uses unique column IDs to enable true column renaming and reordering

• Most schema changes (adding columns, renaming, dropping) require no data rewriting

• Schema evolution integrates seamlessly with streaming pipelines and time-travel queries

• Versioned metadata provides complete schema history and backward compatibility

• Governance tools enhance schema evolution with impact analysis and visibility

By following best practices and leveraging Iceberg's robust schema evolution features, data teams can build flexible, maintainable data lakehouses that adapt to changing business needs without the operational burden of massive data rewrites.

Sources and References

• Apache Iceberg Documentation: Schema Evolution - https://iceberg.apache.org/docs/latest/evolution/

• Apache Iceberg Specification: Column Identity - https://iceberg.apache.org/spec/#schemas-and-data-types

• Netflix Technology Blog: Iceberg Table Spec - https://netflixtechblog.com/

• Tabular: Understanding Iceberg Schema Evolution - https://tabular.io/blog/

• Apache Spark Structured Streaming with Iceberg - https://iceberg.apache.org/docs/latest/spark-structured-streaming/
