Flink SQL and Table API for Stream Processing

Apache Flink has revolutionized stream processing by bringing SQL to the world of real-time data pipelines. With Flink SQL and the Table API, data engineers and analysts can process unbounded streams using familiar SQL syntax or programmatic APIs in Java, Scala, and Python. This approach lowers the barrier to entry for stream processing while maintaining the power and performance needed for production workloads.

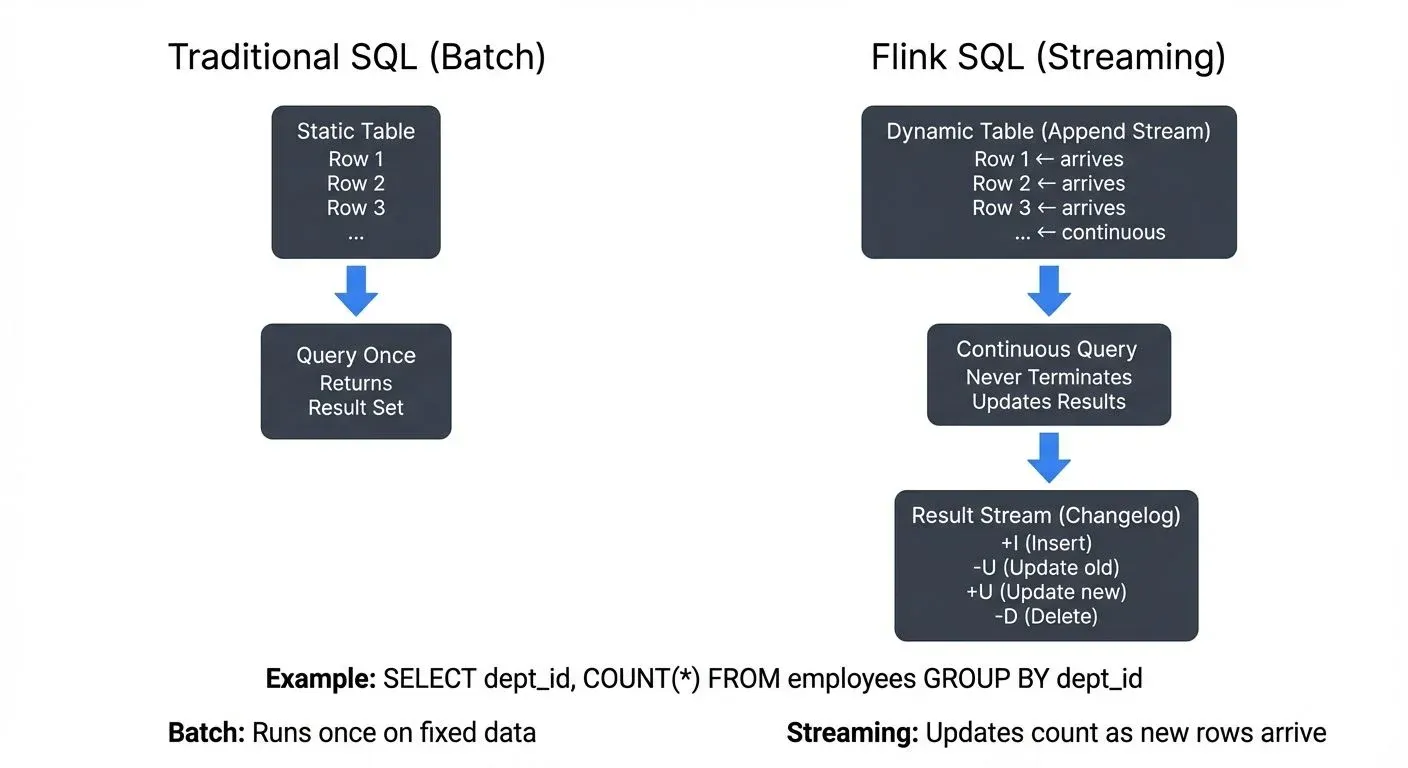

Understanding Dynamic Tables and Continuous Queries

Traditional SQL operates on static tables in batch mode—queries execute once and return a result set. Flink SQL introduces a fundamentally different concept: dynamic tables that continuously evolve as new data arrives.

A dynamic table represents a stream of data as a table abstraction. When you write a SQL query against a dynamic table, Flink creates a continuous query that never terminates. Instead, it continuously consumes new rows and updates its results in real time. This paradigm shift allows you to use standard SQL for stream processing without learning entirely new syntax.

For example, consider an append-only log of events flowing into a table. As new events arrive, they appear as new rows. A continuous query processes these rows incrementally, producing updates to an output dynamic table. This output can be materialized to external systems like Kafka topics, Elasticsearch indices, or key-value stores.

Flink supports two primary stream types:

• Append streams: New rows are only inserted (e.g., log events, sensor readings)

• Changelog streams: Rows can be inserted, updated, or deleted (e.g., database CDC streams)

Understanding these stream semantics is crucial because they determine what operations are valid and how state is managed.

Flink SQL: Writing Streaming Queries

Flink SQL allows you to express stream processing logic using standard SQL syntax. The same query can run on both bounded (batch) and unbounded (streaming) datasets without modification.

Basic Aggregation Query

Here's a simple continuous query that counts employees per department from an incoming stream:

SELECT dept_id, COUNT(*) as emp_count
FROM employee_information
GROUP BY dept_id;

This query maintains state for each department, updating the count as new employee records arrive. The output is a changelog stream that emits updates whenever counts change.

Window Aggregations

Windowing allows you to bound computations over time intervals. Flink SQL supports tumbling, sliding, and session windows.

Tumbling Window Example (non-overlapping fixed intervals):

SELECT
  TUMBLE_START(event_time, INTERVAL '1' MINUTE) as window_start,
  product_id,
  SUM(quantity) as total_quantity
FROM orders
GROUP BY
  TUMBLE(event_time, INTERVAL '1' MINUTE),
  product_id;

This query aggregates orders into one-minute non-overlapping windows, computing total quantities per product.

Sliding Window Example (overlapping intervals):

SELECT
  HOP_END(event_time, INTERVAL '30' SECOND, INTERVAL '1' MINUTE) as window_end,
  sensor_id,
  AVG(temperature) as avg_temp
FROM sensor_readings
GROUP BY
  HOP(event_time, INTERVAL '30' SECOND, INTERVAL '1' MINUTE),
  sensor_id;

This creates one-minute windows that slide forward every 30 seconds, providing overlapping time-based aggregations useful for smoothing time-series data.

Table API: Programmatic Stream Processing

While Flink SQL provides declarative query capabilities, the Table API offers a programmatic alternative for Java, Scala, and Python developers. The Table API sits at the same abstraction level as SQL but allows you to compose queries using code rather than SQL strings.

Java Table API Example:

import org.apache.flink.table.api.*;

TableEnvironment tableEnv = TableEnvironment.create(EnvironmentSettings.inStreamingMode());

// Define a source table
tableEnv.executeSql(
    "CREATE TABLE transactions (" +
    "  account_id STRING," +
    "  amount DECIMAL(10, 2)," +
    "  event_time TIMESTAMP(3)," +
    "  WATERMARK FOR event_time AS event_time - INTERVAL '5' SECOND" +
    ") WITH (" +
    "  'connector' = 'kafka'," +
    "  'topic' = 'transactions'," +
    "  'properties.bootstrap.servers' = 'localhost:9092'" +
    ")"
);

// Use Table API to query
Table result = tableEnv.from("transactions")
    .groupBy($("account_id"))
    .select(
        $("account_id"),
        $("amount").sum().as("total_amount")
    );

// Convert back to DataStream or write to sink
tableEnv.toChangelogStream(result).print();
tableEnv.executeSql("INSERT INTO output_table SELECT * FROM " + result);

The Table API is particularly useful when you need to:

• Mix SQL with custom business logic

• Build reusable query components

• Work within a strongly-typed programming environment

• Dynamically construct queries based on runtime conditions

Kafka Integration and the Streaming Ecosystem

Apache Kafka serves as the backbone of most streaming architectures, and Flink provides first-class integration through its Kafka SQL connector.

Defining Kafka Tables

You can create a table backed by a Kafka topic directly in SQL:

CREATE TABLE user_events (
  user_id STRING,
  event_type STRING,
  timestamp BIGINT,
  properties MAP<STRING, STRING>,
  event_time AS TO_TIMESTAMP(FROM_UNIXTIME(timestamp / 1000)),
  WATERMARK FOR event_time AS event_time - INTERVAL '10' SECOND
) WITH (
  'connector' = 'kafka',
  'topic' = 'user-events',
  'properties.bootstrap.servers' = 'localhost:9092',
  'properties.group.id' = 'flink-consumer',
  'format' = 'json',
  'scan.startup.mode' = 'earliest-offset'
);

This definition includes a computed column for event time and a watermark strategy for handling out-of-order events.

Change Data Capture (CDC) Support

Flink SQL natively supports CDC formats like Debezium, allowing you to process database changelog streams. The Upsert Kafka connector interprets changelog streams and maintains the latest state per key:

CREATE TABLE user_profiles (
  user_id STRING,
  name STRING,
  email STRING,
  updated_at TIMESTAMP(3),
  PRIMARY KEY (user_id) NOT ENFORCED
) WITH (
  'connector' = 'upsert-kafka',
  'topic' = 'user-profiles',
  'properties.bootstrap.servers' = 'localhost:9092',
  'key.format' = 'json',
  'value.format' = 'json'
);

This setup automatically handles inserts, updates, and deletes, maintaining only the current state for each user_id.

Governance and Visibility

As streaming pipelines grow in complexity, governance becomes critical. Streaming management tools provide visibility into Kafka topics, schemas, and data flows. When building Flink SQL applications that consume from or produce to Kafka, these platforms allow teams to monitor topic throughput and lag, validate schema compatibility, enforce data quality policies, and track lineage across streaming pipelines to complement Flink's processing capabilities.

Practical Considerations

State Management

Stateful operations like aggregations and joins require Flink to maintain state. Flink manages this state efficiently using RocksDB for large state backends, with automatic checkpointing for fault tolerance. Be mindful of state growth—unbounded aggregations without proper windowing can lead to ever-growing state.

Watermarks and Event Time

For time-based operations, Flink uses watermarks to track event time progress. Watermarks handle out-of-order events by allowing some lateness before closing windows. The Kafka connector can emit per-partition watermarks, which Flink merges to determine overall stream progress.

Delivery Guarantees

With checkpointing enabled, Flink's Kafka connector provides exactly-once delivery semantics. Configure the sink.semantic option to choose between at-least-once, exactly-once, or none, depending on your consistency requirements and performance trade-offs.

Summary

Flink SQL and the Table API democratize stream processing by providing familiar SQL interfaces and programmatic APIs for real-time data pipelines. Dynamic tables and continuous queries transform traditional SQL into a powerful stream processing paradigm, while Kafka integration connects Flink to the broader streaming ecosystem.

Key takeaways:

• Flink SQL enables declarative stream processing using standard SQL syntax

• Dynamic tables evolve continuously, supporting append and changelog semantics

• Table API provides programmatic query composition for Java, Scala, and Python

• Kafka connectors integrate seamlessly with CDC streams and upsert patterns

• State management and watermarks are essential for correctness and performance

For data engineers building real-time pipelines, Flink SQL offers a balance between ease of use and sophisticated stream processing capabilities. For data analysts familiar with SQL, it provides a path to work directly with streaming data without learning low-level APIs.

The latest Flink releases (2.1 and 2.2 in 2025) continue to enhance SQL capabilities with features like materialized tables, delta joins for reduced state, and AI model integration, making Flink an increasingly powerful platform for unified data and AI workloads.
