Windowing in Apache Flink: Tumbling, Sliding, and Session Windows

Master Apache Flink's windowing mechanisms including tumbling, sliding, and session windows with practical examples for time-based stream aggregations.

Windowing in Apache Flink: Tumbling, Sliding, and Session Windows

Stream processing requires mechanisms to divide infinite data streams into finite chunks for meaningful aggregations and analytics. Apache Flink provides powerful windowing abstractions that enable you to group events by time or other criteria, making it possible to compute metrics like counts, sums, and averages over specific intervals.

This article explores Flink's three primary window types—tumbling, sliding, and session windows—and demonstrates how to implement them effectively in your stream processing pipelines.

Understanding Windows in Stream Processing

Windows are fundamental constructs in stream processing that segment continuous data streams into bounded collections. Unlike batch processing, where data has natural boundaries, streaming data is unbounded and requires explicit windowing logic to perform aggregations.

┌──────────────────────────────────────────────────────────────────┐

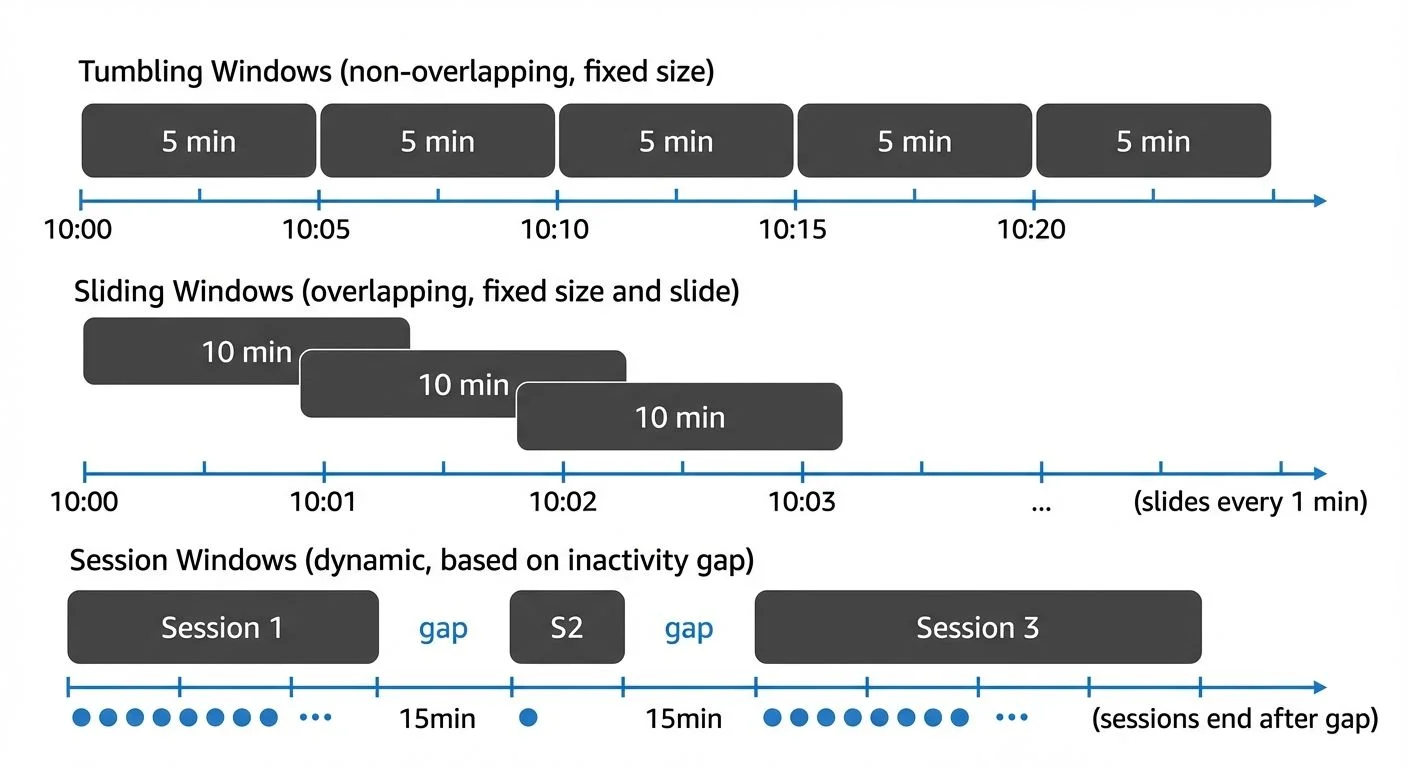

│                   Window Types Overview                          │
├──────────────────────────────────────────────────────────────────┤
│                                                                  │
│  Tumbling Windows (non-overlapping, fixed size)                 │
│  ┌──────┐┌──────┐┌──────┐┌──────┐                               │
│  │ 5min ││ 5min ││ 5min ││ 5min │                               │
│  └──────┘└──────┘└──────┘└──────┘                               │
│  10:00   10:05   10:10   10:15   10:20                          │
│                                                                  │
│  Sliding Windows (overlapping, fixed size and slide)            │
│  ┌──────────┐                                                    │
│  │ 10 min   │                                                    │
│  └──────────┘                                                    │
│    ┌──────────┐                                                  │
│    │ 10 min   │                                                  │
│    └──────────┘                                                  │
│      ┌──────────┐                                                │
│      │ 10 min   │                                                │
│      └──────────┘                                                │
│  10:00 10:01 10:02 10:03 ...  (slides every 1 min)              │
│                                                                  │
│  Session Windows (dynamic, based on inactivity gap)             │
│  ┌────────┐      ┌──┐  ┌─────────────┐                          │
│  │Session1│ gap  │S2│  │  Session 3  │                          │
│  └────────┘      └──┘  └─────────────┘                          │
│  ●●●●      15min ●     ●●●●●  15min  (sessions end after gap)   │
│                                                                  │
└──────────────────────────────────────────────────────────────────┘

Flink supports two main categories of windows:

Time-based windows: Group events based on timestamps (processing time or event time)
Count-based windows: Group events based on the number of elements

Time-based windows are most common in production scenarios because they align with business requirements like "calculate sales per hour" or "detect anomalies within 5-minute intervals."

Event Time vs Processing Time

Before diving into window types, it's crucial to understand Flink's time semantics:

Event Time: The timestamp when the event actually occurred, embedded in the event itself
Processing Time: The system clock time when Flink processes the event

Event time provides deterministic results and handles out-of-order events correctly, making it the preferred choice for most production applications. Processing time is simpler but can produce non-deterministic results when events arrive late or out of order.

Tumbling Windows

Tumbling windows divide the stream into non-overlapping, fixed-size intervals. Each event belongs to exactly one window, making tumbling windows ideal for periodic aggregations like hourly reports or daily summaries.

Characteristics

Fixed duration (e.g., 1 minute, 1 hour)
No overlap between consecutive windows
Every event belongs to exactly one window
Windows align to epoch boundaries by default

Use Cases

Hourly traffic reports
Daily revenue calculations
Per-minute error counts

Sensor readings are grouped into 5-minute tumbling windows. Each sensor's average temperature is calculated independently every 5 minutes. Windows start at 00:00, 00:05, 00:10, and so on.

Sliding Windows

Sliding windows create overlapping intervals by defining both a window size and a slide interval. This allows you to compute aggregations over a moving time frame, providing more granular insights than tumbling windows.

Characteristics

Defined by window size and slide interval
Windows overlap when slide < size
Events can belong to multiple windows
Useful for moving averages and trend analysis

Use Cases

10-minute moving average with 1-minute updates
Continuous anomaly detection over recent data
Real-time trend analysis

A 10-minute sliding window with 1-minute slide creates overlapping windows. At any given time, 10 overlapping windows are active, each containing the last 10 minutes of data. This provides smooth, continuously updated aggregations rather than discrete jumps.

Session Windows

Session windows group events based on activity patterns rather than fixed time intervals. A session window closes after a specified period of inactivity (the session gap), making them ideal for user behavior analysis.

Characteristics

Dynamic window duration based on data
Defined by an inactivity gap
Each key (user, device) has independent sessions
Windows can vary significantly in size

Use Cases

User session analytics on websites
Click-stream analysis
Fraud detection based on activity patterns

User events are grouped into sessions with a 15-minute inactivity gap. If a user doesn't generate any events for 15 minutes, their current session closes and a new session begins with the next event.

Window Functions and Aggregations

Flink provides multiple approaches for processing windowed data:

ReduceFunction

Incrementally combines elements within a window, maintaining a running aggregate.

AggregateFunction

More flexible than reduce, allows input and output types to differ.

ProcessWindowFunction

Provides full access to all window elements and metadata, enabling complex computations.

For performance-critical applications, combining an incremental aggregation (reduce/aggregate) with a ProcessWindowFunction provides both efficiency and flexibility.

Integration with Apache Kafka

Apache Kafka serves as the de facto standard for event streaming, making Flink-Kafka integration crucial for production deployments. Flink's windowing capabilities work seamlessly with Kafka sources.

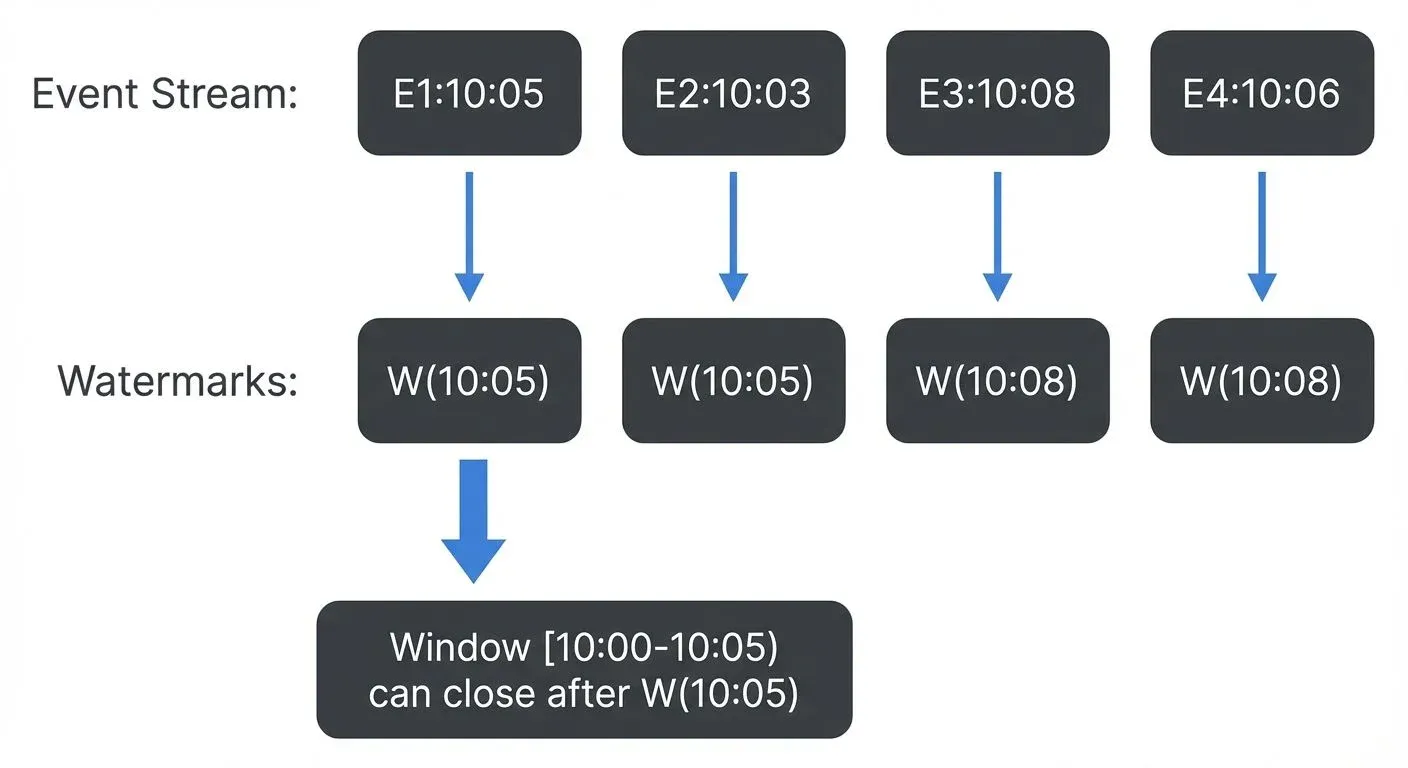

Watermarks and Late Data

When consuming from Kafka, configure watermarks to handle out-of-order events. The forBoundedOutOfOrderness method allows events to arrive up to a specified duration late before the watermark advances. The idleness timeout prevents idle partitions from blocking watermark progress.

Governance and Visibility

Managing Kafka topics and ensuring data quality in streaming pipelines requires robust governance tools. Streaming management platforms provide comprehensive visibility into Kafka clusters, helping teams monitor topic health, schema evolution, and consumer lag—critical factors for successful Flink deployments.

When operating windowed Flink applications at scale, governance platforms enable topic monitoring to track message rates and partition distribution for input/output topics, schema governance to ensure event schemas remain compatible across pipeline stages, consumer lag tracking to monitor Flink consumer groups and detect processing delays that could affect window accuracy, and data quality rules to validate event timestamps and structure before they enter windowing logic.

This governance layer becomes essential when managing multiple Flink jobs consuming from shared Kafka topics, ensuring consistent event time semantics across the organization.

Best Practices and Performance Considerations

Choose the Right Window Type

Use tumbling windows for discrete time-based reports (hourly, daily metrics)
Use sliding windows for continuous monitoring and trend detection
Use session windows for user behavior and activity-based analysis

Optimize Window State

Windows maintain state until they close. For large windows or high-throughput streams:

Use incremental aggregations (ReduceFunction, AggregateFunction) instead of ProcessWindowFunction when possible
Configure appropriate state backends (RocksDB for large state)
Set reasonable allowed lateness to balance completeness and resource usage

Handle Late Events

Configure allowed lateness and side outputs for late data. This allows windows to accept late events within a grace period and routes extremely late events to a separate stream for handling.

Monitor Watermark Progress

Slow watermark advancement indicates problems with event timestamps or idle sources. Monitor watermark metrics to ensure timely window triggering.

Summary

Apache Flink's windowing mechanisms provide powerful abstractions for processing unbounded streams. Tumbling windows offer non-overlapping intervals for periodic aggregations, sliding windows enable moving averages and continuous analysis, and session windows capture activity-based patterns.

Choosing the appropriate window type depends on your use case: tumbling for discrete reports, sliding for trends, and session for behavior analysis. When integrated with Kafka, Flink's event time processing and watermarking ensure accurate, deterministic results even with out-of-order events.

Understanding window functions—from incremental aggregations to full window processing—enables you to balance performance and functionality. Combined with proper governance tools for monitoring Kafka infrastructure, these techniques form the foundation of robust, production-ready stream processing pipelines.
