Message Serialization in Kafka

What is Serialization and Why Does It Matter?

Serialization is the process of converting data structures or objects into a byte format that can be transmitted over a network or stored on disk. Deserialization is the reverse process—reconstructing the original data structure from bytes.

In Apache Kafka, every message is stored and transmitted as an array of bytes. This means that before a producer sends a message to Kafka, it must serialize the data. Similarly, when a consumer reads a message, it must deserialize those bytes back into a meaningful data structure.

The choice of serialization format affects multiple critical aspects of your streaming architecture: message size, processing speed, schema evolution capabilities, interoperability between systems, and developer productivity.

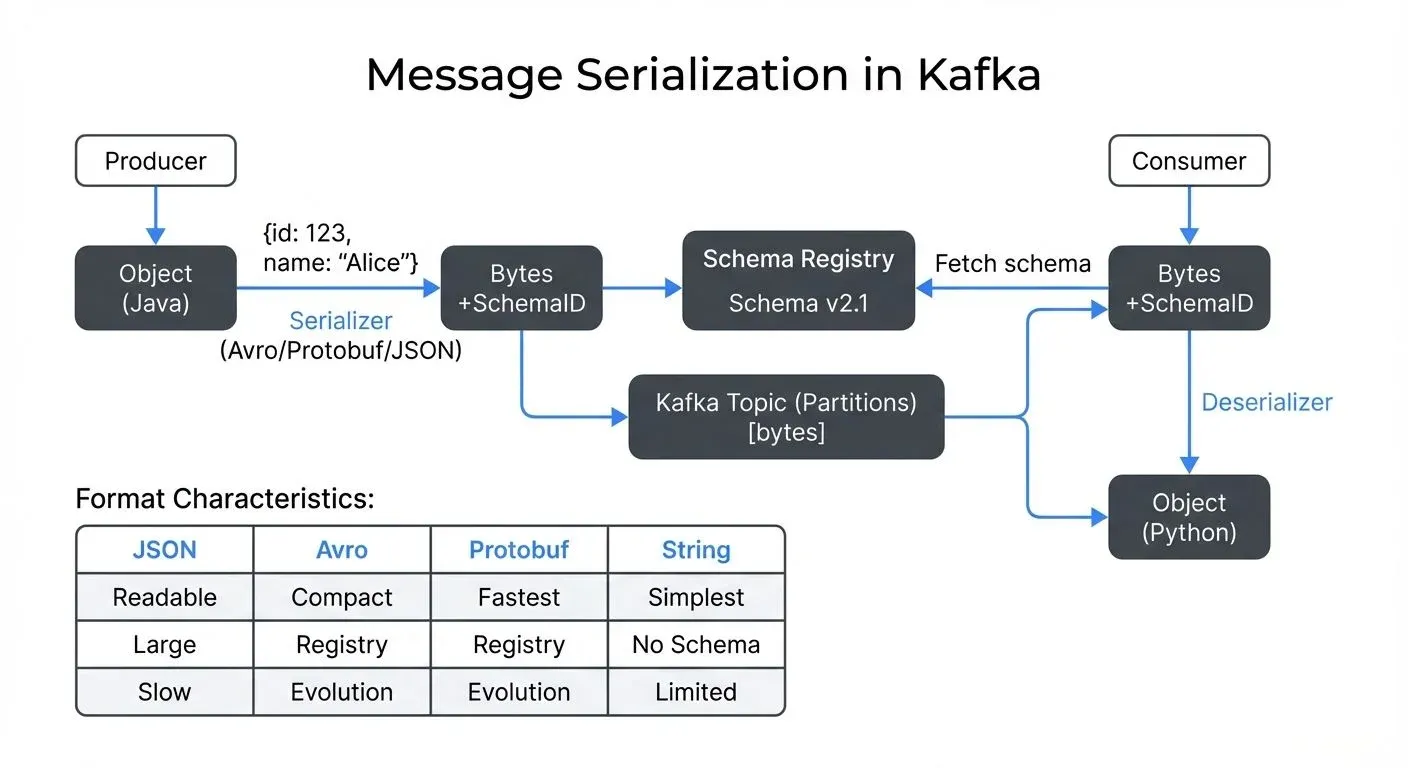

How Kafka Uses Serialization

Kafka itself is agnostic to the content of your messages. It treats both keys and values as byte arrays. The responsibility for serialization and deserialization falls on producers and consumers through serializers and deserializers (often called "serdes").

When configuring a Kafka producer, you specify two serializers:

properties.put("key.serializer", "org.apache.kafka.common.serialization.StringSerializer");
properties.put("value.serializer", "io.confluent.kafka.serializers.KafkaAvroSerializer");

Similarly, consumers specify deserializers:

properties.put("key.deserializer", "org.apache.kafka.common.serialization.StringDeserializer");
properties.put("value.deserializer", "io.confluent.kafka.serializers.KafkaAvroDeserializer");

This decoupling allows different applications to use different serialization formats, though consistency across producers and consumers of the same topic is essential to avoid deserialization failures.

Common Serialization Formats

String and Primitive Types

The simplest approach is using Kafka's built-in serializers for strings, integers, and other primitive types. This works well for simple use cases but lacks structure and schema enforcement.

Use case: Log messages, simple metrics, prototype development.

JSON

JSON is human-readable, widely supported, and familiar to most developers. However, it comes with significant drawbacks: larger message sizes due to field name repetition, no built-in schema enforcement, and slower parsing compared to binary formats.

Use case: External APIs, when human readability during debugging is prioritized, initial development phases.

Apache Avro

Avro is a binary serialization format that separates schema from data. Messages contain only the values, making them compact. Schemas are typically stored in a Schema Registry, and messages reference the schema by ID.

Avro supports rich schema evolution rules, allowing you to add fields with defaults, remove optional fields, and maintain backward and forward compatibility. This makes it ideal for long-lived streaming applications where schemas evolve over time.

Use case: High-throughput data pipelines, analytics platforms, event-driven architectures requiring schema evolution.

Protocol Buffers (Protobuf)

Protobuf is Google's binary serialization format. It offers excellent performance and compact message sizes. Like Avro, it requires schema definition files (.proto files) and supports schema evolution, though with slightly different compatibility rules.

Use case: Microservices architectures, polyglot environments, systems requiring cross-language compatibility.

Schema Evolution and Compatibility

One of the most challenging aspects of distributed systems is managing schema changes over time. As your business evolves, you'll need to add new fields, deprecate old ones, or change data types.

Consider this real-world scenario: You have a CustomerOrder event with fields orderId, customerId, and amount. Six months later, you need to add a discount field.

With Avro, you can add this field with a default value (e.g., 0.0). Old consumers that don't know about the discount field will continue working. New consumers can read both old messages (using the default) and new messages (with the actual discount value). This is backward compatibility.

Forward compatibility means old consumers can read messages produced by new producers, even if those messages have fields the consumer doesn't know about. The Schema Registry enforces compatibility rules to prevent breaking changes.

A Schema Registry typically supports four compatibility modes:

• BACKWARD: New schema can read old data

• FORWARD: Old schema can read new data

• FULL: Both backward and forward compatible

• NONE: No compatibility checking

Without proper schema management, you risk runtime errors, data loss, or forcing synchronized deployments across all producers and consumers—a significant operational burden.

Performance and Operational Considerations

Different serialization formats have distinct performance characteristics:

Message Size: Binary formats like Avro and Protobuf are significantly smaller than JSON. In a high-throughput system processing millions of messages per second, this translates to reduced network bandwidth and storage costs. A JSON message might be 2-3x larger than its Avro equivalent.

Serialization/Deserialization Speed: Binary formats are generally faster to serialize and deserialize because they avoid text parsing. However, the difference may be negligible compared to network I/O in many applications.

CPU Usage: JSON parsing is CPU-intensive compared to binary formats, which can impact consumer lag during peak loads.

Developer Experience: JSON is easier to debug because you can read messages directly. Binary formats require tools to decode messages, though streaming management platforms provide value by offering message viewers that automatically deserialize and display messages in human-readable formats regardless of the underlying serialization.

Serialization in Data Streaming Ecosystems

Message serialization is foundational to the broader data streaming ecosystem. Apache Kafka acts as the central nervous system, but data flows through multiple systems—stream processing frameworks like Apache Flink or Kafka Streams, data warehouses, analytics platforms, and microservices.

Choosing a well-supported serialization format ensures interoperability across these systems. Avro's tight integration with the Schema Registry makes it a de facto standard in Confluent-based ecosystems. Protobuf's wide language support makes it popular in polyglot microservices architectures.

Stream processing frameworks like Flink support multiple serialization formats and can automatically handle schema evolution when integrated with a Schema Registry. This enables complex transformations while maintaining data consistency.

When operating Kafka clusters at scale, managing schemas becomes critical. Governance platforms help teams visualize schema evolution, validate compatibility before deployment, and troubleshoot deserialization errors by providing clear visibility into message formats and schema versions across topics.

For example, if a consumer starts failing due to a deserialization error, you can quickly inspect the Schema Registry to identify which schema version changed, compare schemas side-by-side, and determine whether the issue is a compatibility violation or a configuration problem.

Summary

Message serialization in Kafka is more than a technical implementation detail—it's a foundational decision that affects performance, operational complexity, and system evolution over time.

Binary formats like Avro and Protobuf offer the best combination of performance, schema evolution capabilities, and ecosystem support for production streaming applications. JSON remains useful for development and debugging but comes with trade-offs in production.

A Schema Registry is essential for managing schema evolution and enforcing compatibility rules, preventing runtime errors and enabling independent evolution of producers and consumers.

When choosing a serialization format, consider your specific requirements: throughput needs, schema evolution frequency, team expertise, and ecosystem constraints. The right choice balances technical performance with operational maintainability.

Sources and References

1. Apache Kafka Documentation - Serialization: Official Kafka documentation covering serializers and deserializers (kafka.apache.org)

2. Confluent Schema Registry Documentation: Comprehensive guide to schema management, compatibility modes, and Avro integration (docs.confluent.io/platform/current/schema-registry)

3. Apache Avro Specification: Official specification and documentation for the Avro serialization format (avro.apache.org)

4. Protocol Buffers Documentation: Google's official documentation for Protobuf, including language guides and encoding details (developers.google.com/protocol-buffers)

5. "Kafka: The Definitive Guide" by Neha Narkhede, Gwen Shapira, and Todd Palino: O'Reilly book covering Kafka architecture, including detailed chapters on serialization and schema management
