Building a Modern Data Lake on Cloud Storage

Data lakes have become the foundation of modern data architectures, enabling organizations to store vast amounts of structured and unstructured data at scale while maintaining flexibility for diverse analytics workloads. Unlike traditional data warehouses with rigid schemas, data lakes embrace a "store first, structure later" approach that's particularly well-suited to today's cloud-native storage solutions.

Why Cloud Object Storage?

Cloud object storage services—AWS S3, Azure Data Lake Storage Gen2, and Google Cloud Storage—have emerged as the de facto standard for data lake implementations. Their advantages are compelling:

Infinite scalability: No capacity planning required. Your storage grows elastically with your data, from gigabytes to exabytes.

Cost-efficiency: Pay only for what you use, with tiered storage classes (hot, cool, archive) that optimize costs based on access patterns. Storage costs have dropped dramatically, making it economical to retain years of historical data.

Durability and availability: Built-in replication across availability zones provides 99.999999999% (11 nines) durability, eliminating the need to manage complex backup strategies.

Separation of storage and compute: Unlike traditional systems, you can scale processing power independently from storage, running multiple analytics engines (Spark, Presto, Athena) against the same dataset.

Architectural Patterns

The Three-Zone Architecture

A well-designed data lake typically follows a three-zone pattern that mirrors the data refinement process:

Raw Zone (Bronze Layer): Immutable source data stored exactly as ingested. This might include JSON logs from applications, CSV exports from databases, or binary files like images. Partition by ingestion date (e.g., s3://datalake/raw/system_logs/year=2025/month=12/day=07/) to enable efficient pruning.

Curated Zone (Silver Layer): Cleansed, validated, and transformed data in standardized formats. Convert to columnar formats like Parquet or ORC for better compression and query performance. This layer often includes deduplication, schema enforcement, and data quality checks.

Analytics Zone (Gold Layer): Business-ready datasets optimized for specific use cases. These are often aggregated, denormalized, and partitioned by business dimensions (region, product line, customer segment) rather than just time.

Storage Format Selection

Choosing the right file format significantly impacts performance and cost:

Parquet: Columnar format ideal for analytical queries. Excellent compression ratios and predicate pushdown support. Use for structured data that's queried by specific columns.

Avro: Row-oriented with strong schema evolution support. Preferred for write-heavy workloads and streaming data where you need to preserve exact record order.

Delta Lake/Iceberg: Table formats that bring ACID transactions, time travel, and schema evolution to object storage. Essential for scenarios requiring updates, deletes, or consistent reads during writes.

Platform-Specific Implementations

AWS S3 Data Lake

# S3 bucket structure
s3://production-datalake/
  raw/
    clickstream/
      year=2025/month=12/day=07/
        events-{timestamp}.json.gz
  curated/
    user_sessions/
      region=us-east/
        part-00000.parquet
  analytics/
    daily_metrics/
      report_date=2025-12-07/
        metrics.parquet

Leverage S3 features:

• S3 Intelligent-Tiering: Automatically moves objects between access tiers based on usage patterns

• S3 Select: Query data in place using SQL without downloading entire files

• AWS Glue Data Catalog: Central metadata repository that integrates with Athena, EMR, and Redshift Spectrum

• S3 Event Notifications: Trigger Lambda functions or SQS messages when new data arrives

Azure Data Lake Storage Gen2

ADLS Gen2 combines blob storage's scalability with hierarchical namespaces that enable directory-level operations and POSIX permissions:

# ADLS Gen2 structure with hierarchical namespace
abfss://datalake@storageaccount.dfs.core.windows.net/
  /raw/transactional_db/orders/year=2025/month=12/
  /curated/customer_360/
  /analytics/sales_dashboard

Key capabilities:

• Azure Synapse Analytics: Integrated analytics workspace combining data engineering, warehousing, and BI

• Azure Databricks: Optimized Spark with Delta Lake support for unified batch and streaming

• Role-Based Access Control (RBAC): Fine-grained security at the directory and file level

Google Cloud Storage

GCS offers a unified object storage API with automatic performance optimization:

# GCS bucket organization
gs://company-datalake/
  raw/pubsub_events/
  curated/enriched_events/
  analytics/ml_features

Notable features:

• BigQuery External Tables: Query GCS data directly without loading into BigQuery

• Cloud Storage FUSE: Mount buckets as file systems for legacy applications

• Autoclass: Automatic storage class transitions based on access patterns

Integrating Streaming Data

Modern data lakes must handle both batch and streaming ingestion. Apache Kafka infrastructure often feeds real-time data into your lake.

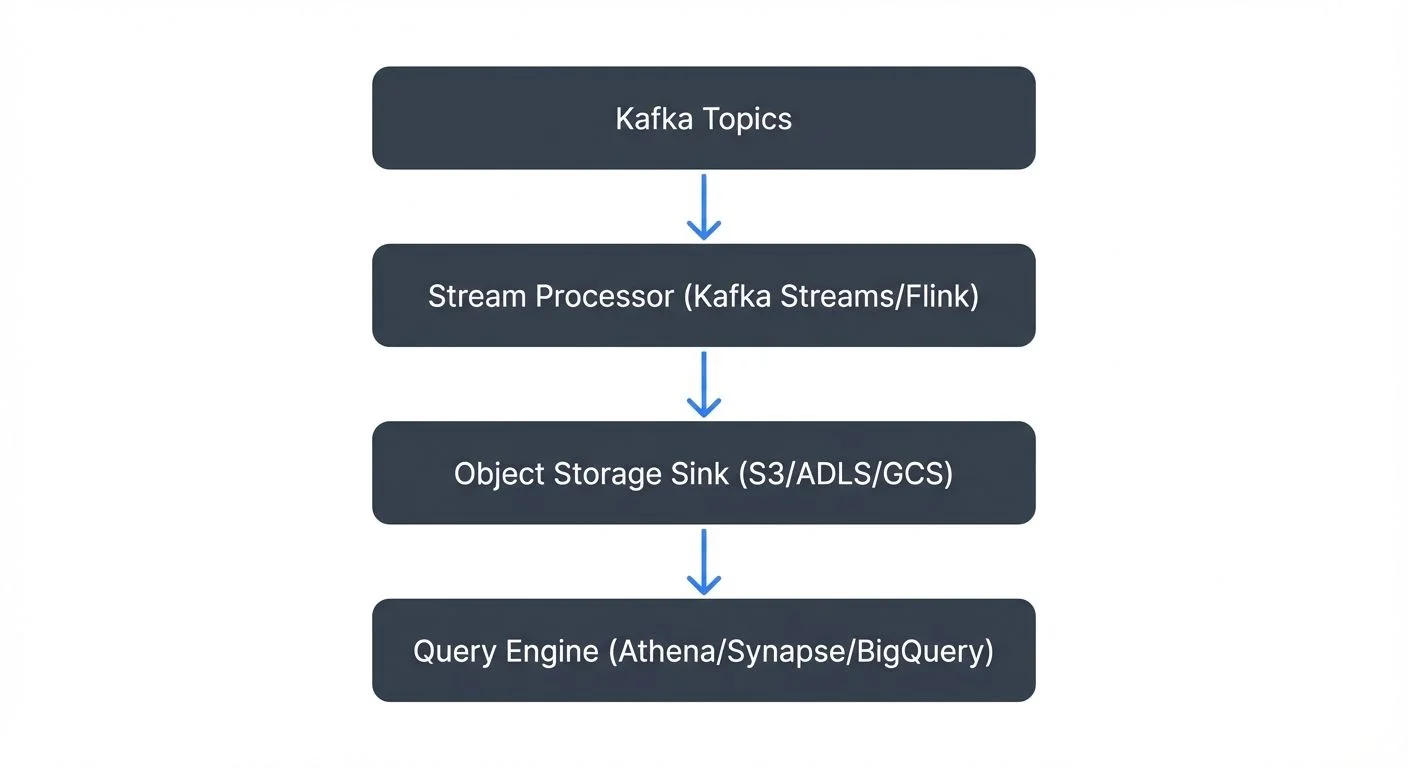

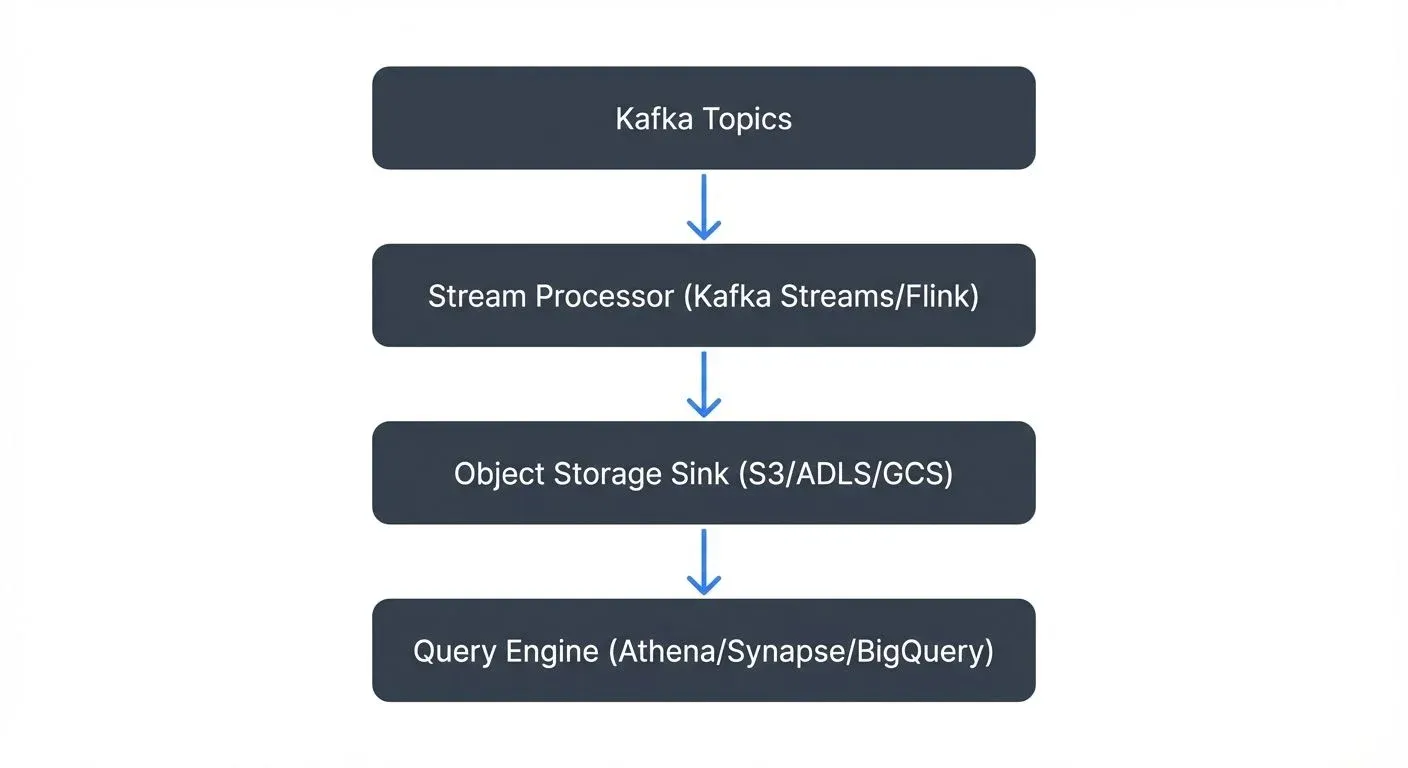

Kafka to Data Lake Pipeline

# Conceptual streaming pipeline
Kafka Topics
  ↓
Stream Processor (Kafka Streams/Flink)
  ↓
Object Storage Sink (S3/ADLS/GCS)
  ↓
Query Engine (Athena/Synapse/BigQuery)

Governance platforms simplify Kafka operations with features like topic management, schema registry integration, and data quality monitoring—critical for maintaining data pipeline reliability. When streaming events into your data lake:

1. Use Kafka Connect: S3 Sink Connector, Azure Event Hubs Connector, or GCS Connector to automatically flush batches to object storage

2. Implement exactly-once semantics: Ensure data isn't duplicated during failures

3. Partition intelligently: Align Kafka topic partitions with storage partitions for efficient processing

4. Handle schema evolution: Use Avro or Protobuf with schema registry to manage changes without breaking downstream consumers

Best Practices

Partition strategically: Over-partitioning creates too many small files (inefficient for queries), while under-partitioning forces full scans. Aim for files between 128MB-1GB.

Implement data lifecycle policies: Automatically archive or delete old data in the raw zone. Move infrequently accessed curated data to cheaper storage tiers.

Secure by default: Enable encryption at rest and in transit. Use IAM roles and policies for access control. Implement data catalog tagging for classification (PII, confidential, public).

Monitor and optimize: Track storage costs by zone and team. Use query performance metrics to identify partitioning improvements. Set up alerts for failed ingestion jobs.

Document metadata: Maintain a data catalog (Glue, Azure Purview, Dataplex) describing datasets, owners, lineage, and SLAs. Poor metadata management is a common data lake failure mode.

Conclusion

Building a modern data lake on cloud storage requires thoughtful architecture that balances flexibility with governance. By leveraging the unique strengths of AWS S3, Azure Data Lake Storage, or Google Cloud Storage, implementing a structured zone-based approach, and integrating streaming data through robust platforms and Kafka, you can create a scalable foundation for analytics that evolves with your organization's needs. The key is starting with clear patterns while remaining adaptable as new technologies and requirements emerge.

Sources and References

• AWS S3 Data Lake Best Practices - AWS guidance on building data lakes with S3

• Azure Data Lake Storage Gen2 Documentation - Microsoft's hierarchical namespace and integration patterns

• Google Cloud Storage Best Practices - GCS optimization and architecture patterns

• Apache Parquet Documentation - Columnar storage format for efficient analytics

• Delta Lake Documentation - ACID transactions and time travel for data lakes on cloud storage
