Data Lake Zones: Bronze, Silver, Gold Architecture

The Medallion Architecture, also known as the Bronze-Silver-Gold pattern, has become the de facto standard for organizing data lakes in modern data platforms. This multi-layered approach provides a clear framework for progressive data refinement, enabling data teams to balance raw data preservation with the need for high-quality, analytics-ready datasets.

Understanding the Medallion Architecture

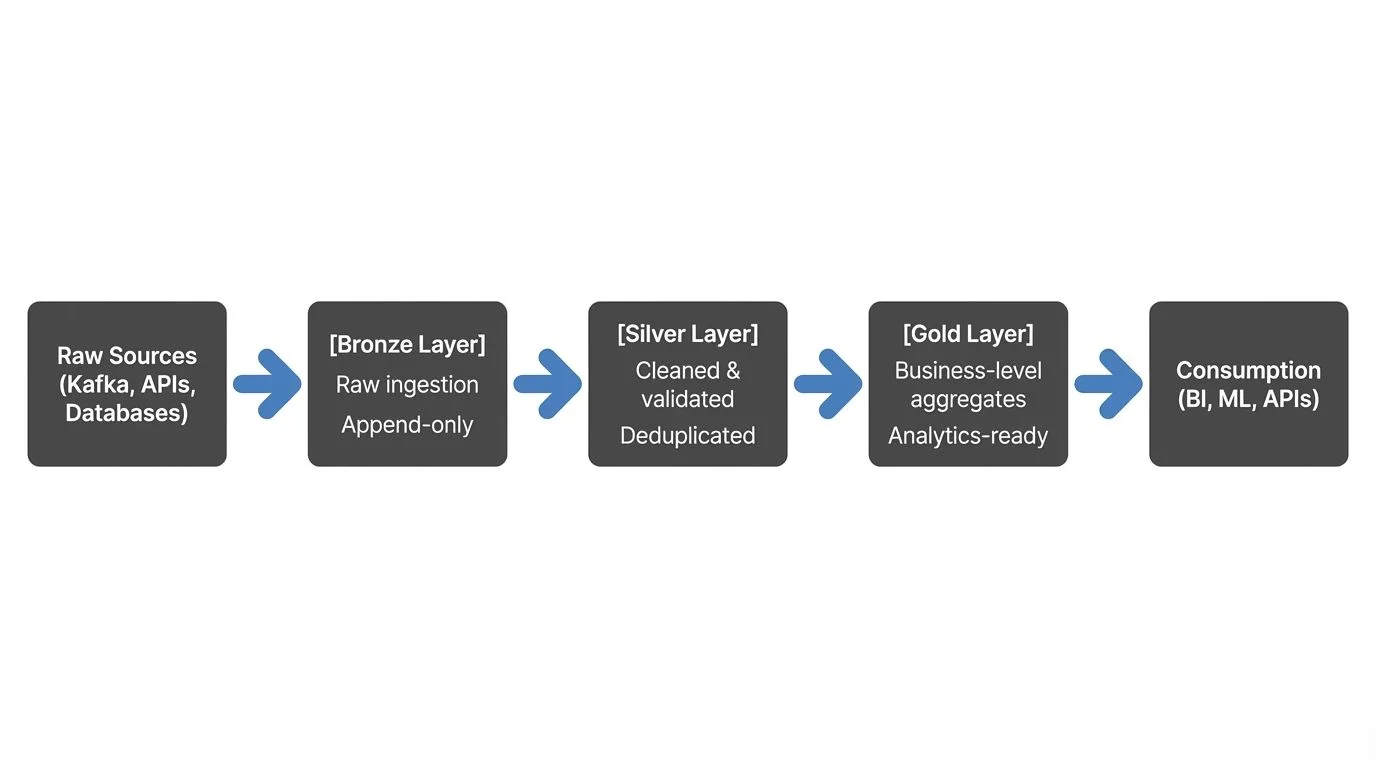

The Medallion Architecture divides your data lake into three distinct zones, each serving a specific purpose in the data pipeline:

Raw Sources (Kafka, APIs, Databases)
           ↓
    [Bronze Layer]
    Raw ingestion
    Append-only
           ↓
    [Silver Layer]
    Cleaned & validated
    Deduplicated
           ↓
     [Gold Layer]
    Business-level aggregates
    Analytics-ready
           ↓
    Consumption (BI, ML, APIs)

This layered approach ensures data lineage traceability while providing different consumption patterns for various use cases.

Bronze Layer: The Foundation of Truth

The Bronze layer serves as your raw data landing zone. Here, data arrives in its most pristine form, exactly as it exists at the source. This layer operates on a fundamental principle: preserve everything, transform nothing.

Key Characteristics

• Append-only architecture: Data is never deleted or modified, ensuring complete historical records

• Schema-on-read: Minimal schema enforcement allows maximum flexibility

• Full fidelity: Captures all source data, including metadata like ingestion timestamps

• Partitioning: Typically organized by ingestion date for efficient querying

Streaming Integration

For real-time data pipelines, the Bronze layer excels at consuming streaming data. Apache Kafka topics feed directly into Bronze tables, often using formats like JSON or Avro that preserve the source structure.

Monitoring platforms help teams manage Kafka topics and monitor data flows into the Bronze layer effectively, providing visibility into message schemas, throughput, and consumer lag to ensure that your Bronze ingestion pipeline remains healthy and performant.

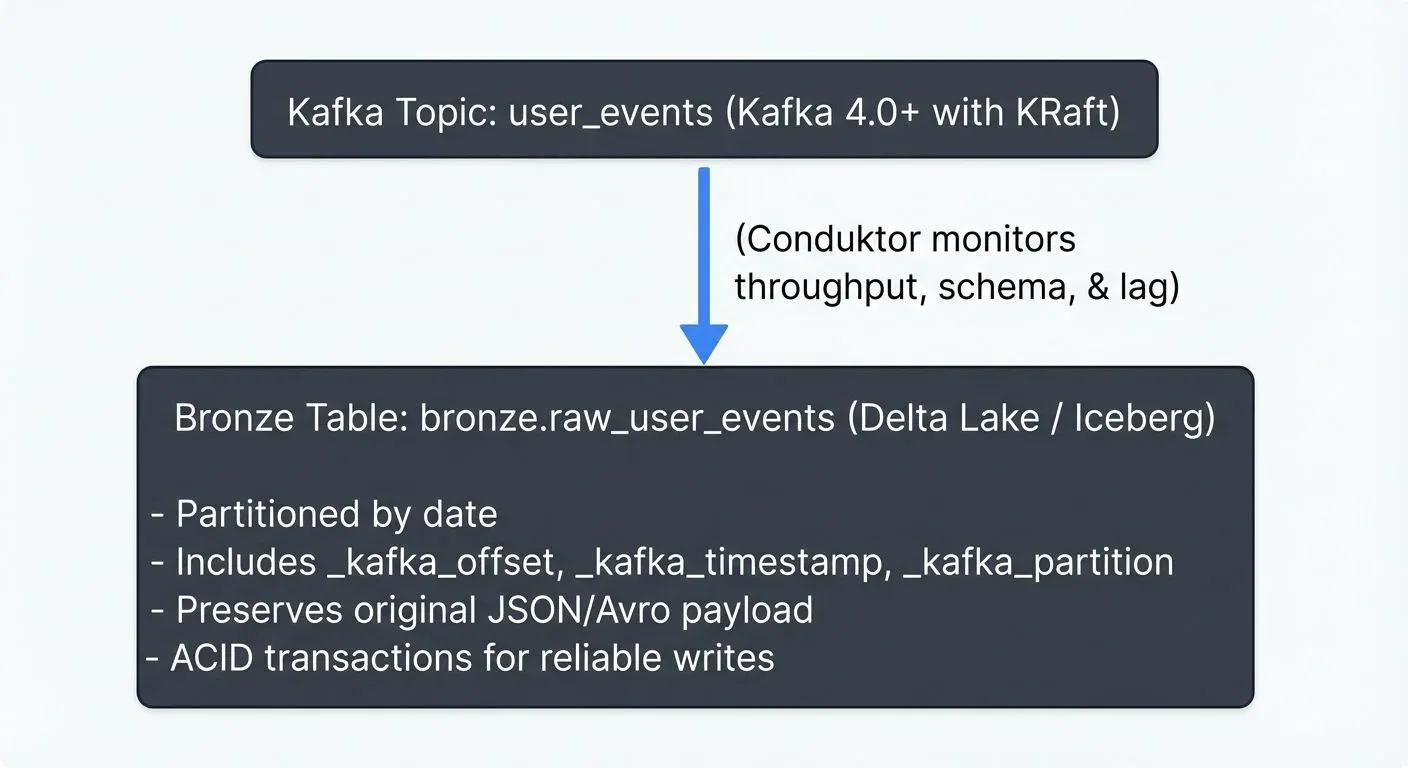

Kafka Topic: user_events
    ↓ (Monitoring platform tracks throughput & schema)
    ↓
Bronze Table: bronze.raw_user_events
- Partitioned by date
- Includes _kafka_offset, _kafka_timestamp
- Preserves original JSON payload

Implementation Pattern

-- Bronze layer typically stores data with minimal transformation
CREATE TABLE bronze.raw_transactions (
    raw_data STRING,
    source_system STRING,
    ingestion_timestamp TIMESTAMP,
    date_partition DATE
) PARTITIONED BY (date_partition);

Silver Layer: Cleaned and Conformed

The Silver layer represents your cleaned, validated, and standardized data. This is where data engineering rigor comes into play, transforming raw data into a reliable foundation for analytics.

Key Characteristics

• Data quality enforcement: Invalid records are filtered or corrected

• Schema standardization: Consistent data types and column names

• Deduplication: Removes duplicate records based on business keys

• Change data capture (CDC): Tracks incremental changes efficiently

• PII handling: Sensitive data is masked or encrypted

Transformation Logic

The Bronze-to-Silver transformation applies business rules while maintaining data integrity:

-- Silver layer transformation example
CREATE TABLE silver.transactions AS
SELECT
    CAST(get_json_object(raw_data, '$.transaction_id') AS BIGINT) AS transaction_id,
    CAST(get_json_object(raw_data, '$.amount') AS DECIMAL(10,2)) AS amount,
    CAST(get_json_object(raw_data, '$.currency') AS STRING) AS currency,
    to_timestamp(get_json_object(raw_data, '$.timestamp')) AS transaction_timestamp,
    current_timestamp() AS processed_at
FROM bronze.raw_transactions
WHERE get_json_object(raw_data, '$.transaction_id') IS NOT NULL  -- Data quality filter
    AND CAST(get_json_object(raw_data, '$.amount') AS DECIMAL(10,2)) > 0  -- Business rule
QUALIFY ROW_NUMBER() OVER (PARTITION BY transaction_id ORDER BY ingestion_timestamp DESC) = 1;  -- Deduplication

Streaming in Silver

For streaming architectures, the Silver layer often implements incremental processing. Tools like Apache Spark Structured Streaming or Flink consume from Bronze and write to Silver in micro-batches, applying transformations in near real-time.

Schema registry integration ensures that as schemas evolve in Kafka topics, your Silver layer transformations can adapt accordingly, preventing breaking changes from propagating downstream.

Gold Layer: Business Value

The Gold layer contains curated, business-level datasets optimized for specific consumption patterns. This is where data becomes actionable, powering dashboards, reports, and machine learning models.

Key Characteristics

• Aggregated metrics: Pre-calculated KPIs and business metrics

• Denormalized structures: Optimized for query performance

• SCD Type 2 handling: Tracks slowly changing dimensions

• Feature stores: ML-ready feature sets

• Dimensional modeling: Star or snowflake schemas for BI tools

Business-Driven Design

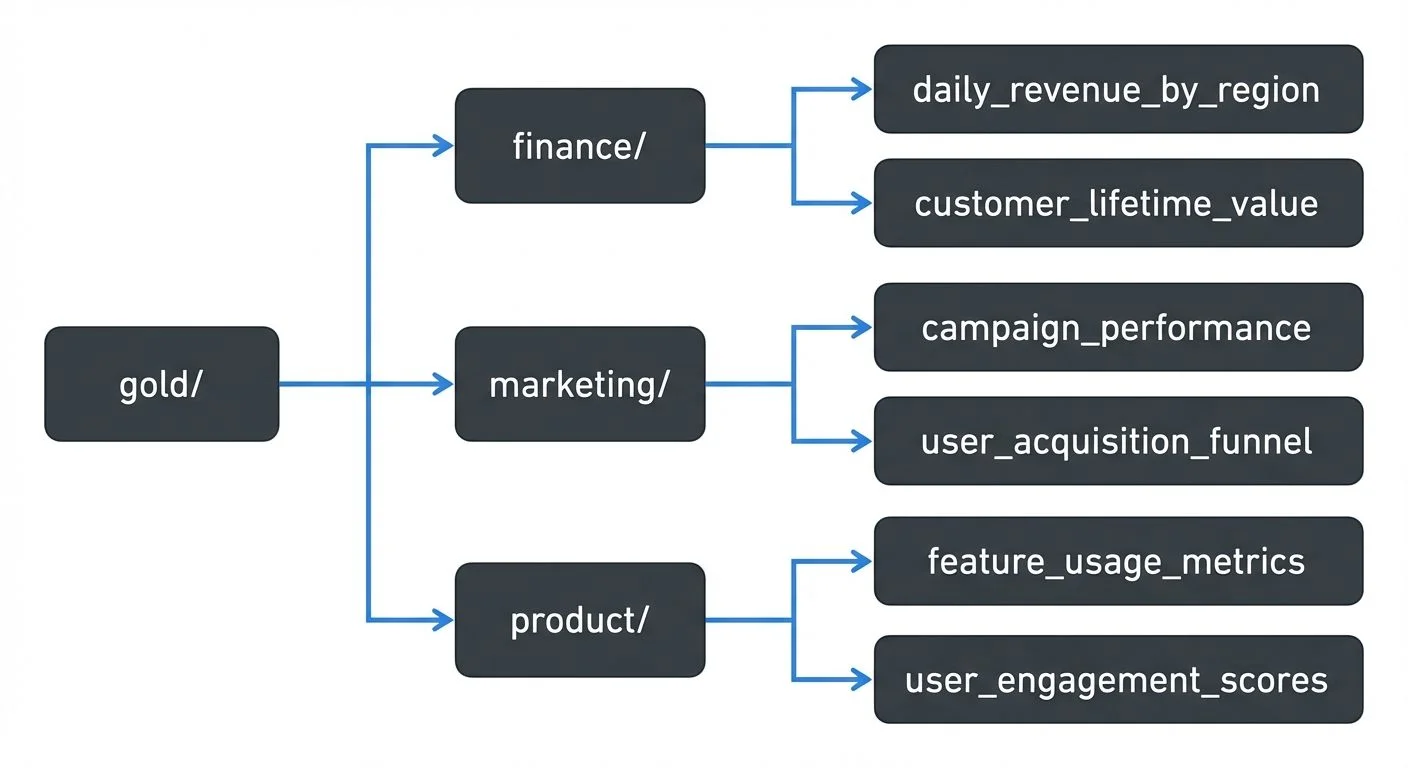

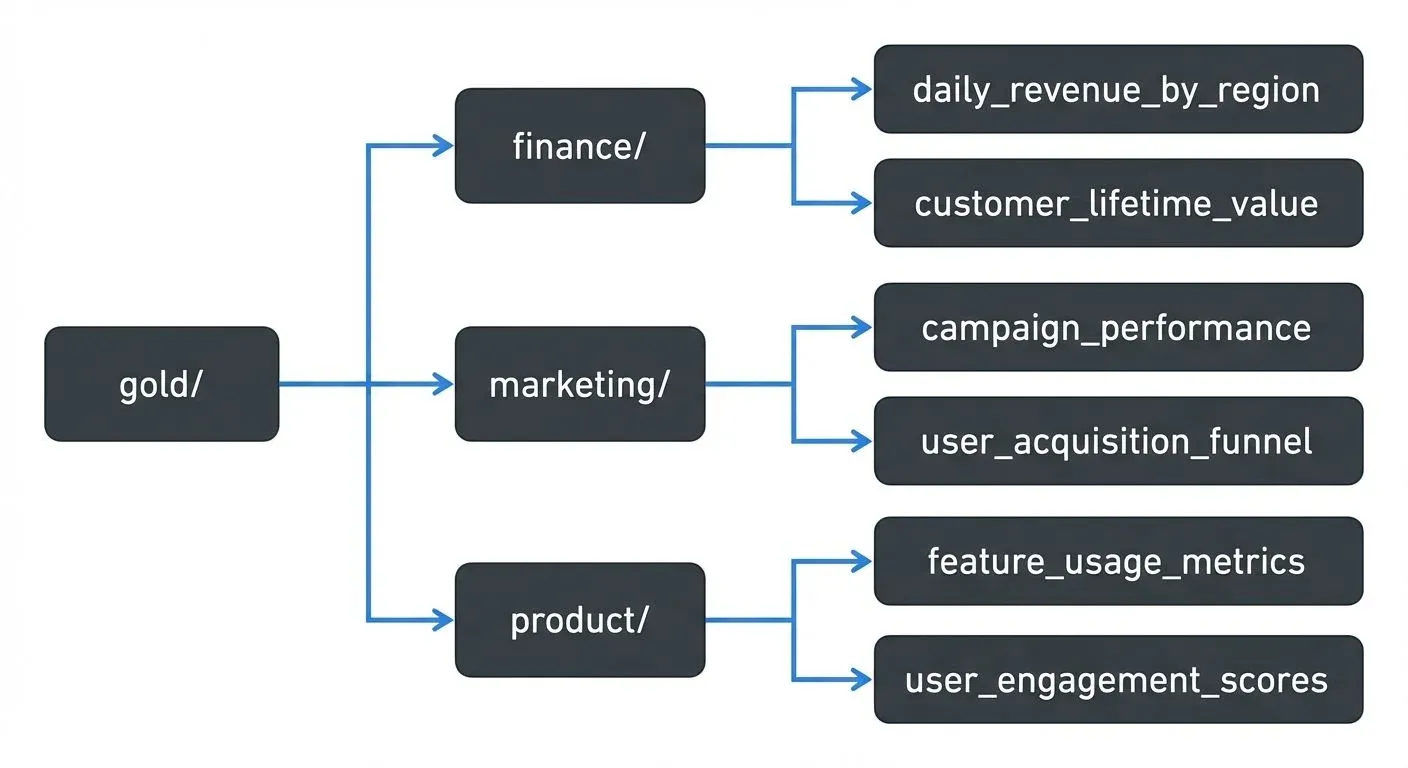

Unlike Bronze and Silver, which are technical layers, Gold is organized around business domains:

gold/
├── finance/
│   ├── daily_revenue_by_region
│   └── customer_lifetime_value
├── marketing/
│   ├── campaign_performance
│   └── user_acquisition_funnel
└── product/
    ├── feature_usage_metrics
    └── user_engagement_scores

Example Gold Table

-- Gold layer: Business-ready aggregate
CREATE TABLE gold.daily_revenue_summary AS
SELECT
    DATE(transaction_timestamp) AS revenue_date,
    currency,
    country_code,
    COUNT(DISTINCT customer_id) AS unique_customers,
    COUNT(transaction_id) AS transaction_count,
    SUM(amount) AS total_revenue,
    AVG(amount) AS avg_transaction_value,
    PERCENTILE(amount, 0.5) AS median_transaction_value
FROM silver.transactions
WHERE transaction_status = 'completed'
GROUP BY DATE(transaction_timestamp), currency, country_code;

Architecture Benefits

1. Separation of Concerns

Each layer has a distinct responsibility, making the data pipeline easier to understand, maintain, and troubleshoot.

2. Incremental Development

Teams can iterate on Silver and Gold transformations without re-ingesting raw data, as Bronze preserves the complete history.

3. Data Quality Gates

Issues caught at Silver prevent bad data from reaching production analytics in Gold, protecting decision-making processes.

4. Performance Optimization

By progressively refining data, queries against Gold tables execute faster than querying raw Bronze data directly.

5. Regulatory Compliance

The immutable Bronze layer provides an audit trail, while Silver and Gold can implement data retention policies and privacy controls.

Best Practices

Idempotency: Ensure all transformations can be safely re-run without creating duplicates or inconsistencies.

Incremental Processing: Process only new or changed data between layers to minimize compute costs.

Data Lineage: Maintain metadata about data transformations to track how Gold metrics are derived from raw sources.

Schema Evolution: Plan for schema changes by versioning your data and using backward-compatible transformations.

Monitoring: Implement data quality checks at each layer boundary. Monitoring platforms for streaming sources and data quality frameworks for batch processing help catch issues early.

Conclusion

The Bronze-Silver-Gold architecture provides a robust framework for building scalable, maintainable data lakes. By separating raw data preservation (Bronze), data cleansing (Silver), and business aggregation (Gold), data teams can deliver high-quality analytics while maintaining the flexibility to adapt to changing requirements.

As streaming data sources become increasingly prevalent, proper monitoring and governance ensures that real-time data flows smoothly through each medallion layer, maintaining data quality and observability from source to consumption. This architectural pattern has proven its value across organizations of all sizes, from startups building their first data lake to enterprises managing petabytes of data.
