Kafka Connect: Building Data Integration Pipelines
Learn how Kafka Connect simplifies data integration between Apache Kafka and external systems using source and sink connectors for reliable pipelines.
Kafka Connect: Building Data Integration Pipelines
Kafka Connect is a distributed framework for reliably streaming data between Apache Kafka and external systems. Instead of writing custom producers and consumers for every data source and destination, Kafka Connect provides a standardized, scalable approach to data integration. This framework has become essential for data engineers building modern streaming architectures.
Understanding Kafka Connect Architecture

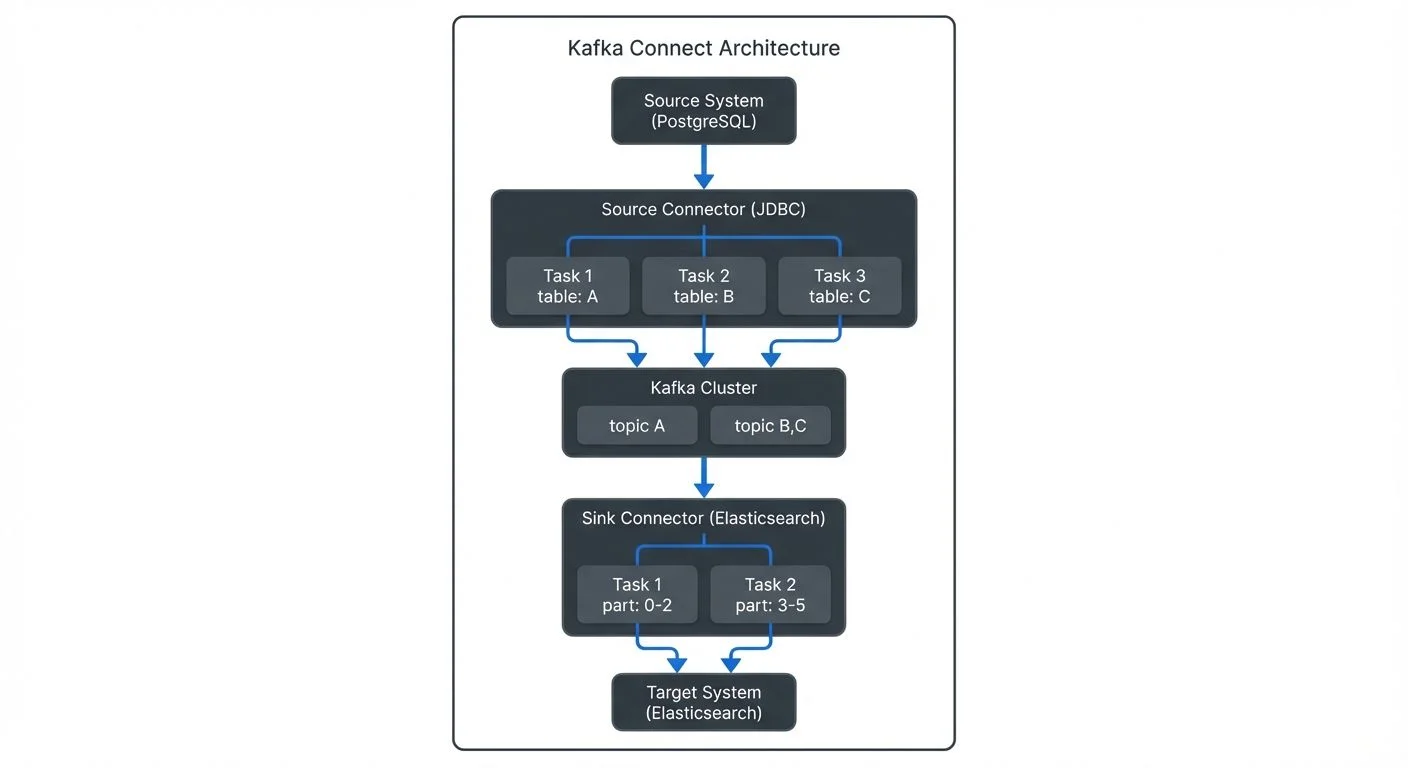

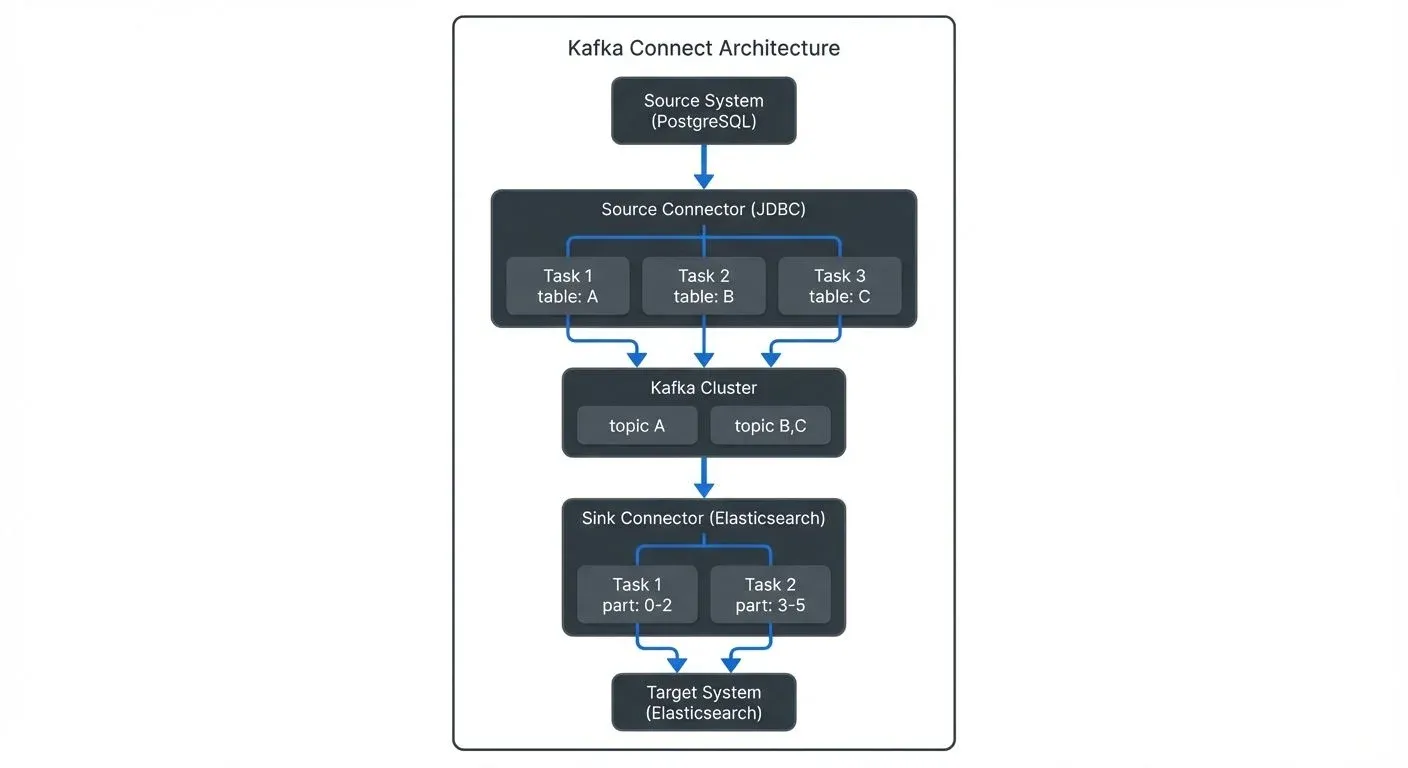

Kafka Connect operates as a distributed service that runs connector tasks across a cluster of workers. The architecture consists of three main components:
Workers are the runtime processes that execute connector tasks. They can run in standalone mode (single process) or distributed mode (multiple processes forming a cluster). Distributed mode is recommended for production environments as it provides fault tolerance and load balancing.
Connectors define how data should be copied to or from Kafka. They create and manage tasks that actually move the data. A source connector reads from an external system and writes to Kafka topics, while a sink connector reads from Kafka topics and writes to an external system.
Tasks perform the actual work of reading or writing data. Connectors split work into multiple tasks that can run in parallel across different worker nodes, enabling horizontal scalability.
Source Connectors: Ingesting Data into Kafka
Source connectors bring data from external systems into Kafka topics. They handle the complexity of reading from different data sources while providing features like exactly-once semantics, schema management, and offset tracking.
Common source connector types include:
Database connectors (JDBC, Debezium) that capture changes from relational databases
File connectors that monitor directories and ingest file contents
Message queue connectors that bridge other messaging systems to Kafka
Cloud storage connectors that import data from S3, GCS, or Azure Blob Storage
Sink Connectors: Delivering Data from Kafka
Sink connectors consume data from Kafka topics and write it to external systems. They provide automatic batching, error handling, and delivery guarantees to ensure reliable data delivery.
Popular sink connector types include:
Database sinks (JDBC, Elasticsearch, MongoDB) for analytical workloads
Data warehouse sinks (Snowflake, BigQuery, Redshift) for analytics
Object storage sinks (S3, GCS, HDFS) for data lakes
Search and indexing sinks (Elasticsearch, Solr) for real-time search
Kafka Connect in the Data Streaming Ecosystem
Kafka Connect serves as a critical integration layer within broader streaming architectures. It complements other streaming components:
Stream Processing: While Kafka Streams and ksqlDB transform data within Kafka, Connect handles the integration boundaries. A typical pipeline might use a source connector to ingest database changes, Kafka Streams to enrich and aggregate data, and a sink connector to write results to a data warehouse.
Schema Management: Connect integrates tightly with Schema Registry to enforce schema validation. Connectors can automatically register schemas for data they produce and validate schemas for data they consume, ensuring data quality across the pipeline.
Change Data Capture (CDC): Debezium connectors running on Kafka Connect provide CDC capabilities, capturing row-level changes from databases in real-time. This enables event-driven architectures and keeps multiple data stores synchronized.
Governance and Monitoring: Tools like Conduktor provide visibility into Connect deployments, allowing teams to monitor connector health, track data lineage, and enforce governance policies across integration pipelines. This visibility is essential as organizations scale to dozens or hundreds of connectors.
Configuration and Deployment Best Practices
Running Kafka Connect reliably requires attention to several operational concerns:
Distributed Mode Configuration: Always use distributed mode in production. Configure multiple workers with the same group.id to form a Connect cluster. Store connector configurations and offsets in Kafka topics (specified by config.storage.topic, offset.storage.topic, and status.storage.topic) to enable automatic failover.
Resource Allocation: Allocate sufficient CPU and memory for connector tasks. Complex transformations and high-throughput connectors require adequate resources. Monitor JVM metrics and adjust heap sizes accordingly.
Error Handling: Configure dead letter queues (DLQ) for sink connectors to capture records that fail processing. This prevents connector failures from blocking the entire pipeline.
Security: Use externalized secrets (via ConfigProviders) instead of hardcoding credentials. Enable SSL/TLS for communication between Connect and both Kafka and external systems. Apply appropriate authentication and authorization.
Monitoring: Track key metrics including connector state, task status, offset lag, throughput, and error rates. Set up alerts for connector failures and performance degradation.
Connector Development and Customization
While the Confluent Hub provides hundreds of pre-built connectors, custom requirements sometimes necessitate developing proprietary connectors. The Kafka Connect framework provides interfaces for building new connectors:
SourceConnector and SinkConnector classes define connector lifecycle and task configuration. SourceTask and SinkTask classes implement the actual data reading and writing logic.
For simpler use cases, Single Message Transforms (SMTs) allow inline data transformation without custom connector development. Common transformations include field extraction, renaming, masking, filtering, and routing to different topics based on content.
Connector plugins are deployed by placing JAR files in the plugin.path directory, which Connect scans at startup. This plugin isolation prevents dependency conflicts between different connectors.
Summary
Kafka Connect provides a powerful, scalable framework for integrating Apache Kafka with external systems. By standardizing how data moves in and out of Kafka through source and sink connectors, it reduces development complexity and operational overhead. The distributed architecture enables fault tolerance and horizontal scalability, while features like schema management, transformations, and error handling ensure reliable data delivery.
For data engineers building streaming platforms, Kafka Connect serves as the integration backbone, connecting databases, data warehouses, object storage, and other systems to the central Kafka event bus. Combined with stream processing, schema governance, and monitoring tools, it enables comprehensive real-time data architectures.
Understanding connector configuration, deployment patterns, and operational best practices is essential for building production-grade data integration pipelines. Whether ingesting database changes through CDC, loading data lakes, or synchronizing multiple data stores, Kafka Connect simplifies the complexity of modern data integration.
Sources and References
Apache Kafka Documentation - Kafka Connect - Official documentation covering architecture, configuration, and operations
Confluent Kafka Connect Deep Dive - Comprehensive guide including connector development and deployment patterns
Debezium Documentation - Leading CDC connector framework built on Kafka Connect
Kafka Connect Configuration Reference - Complete reference for worker and connector configuration parameters
Confluent Hub - Repository of pre-built, community-contributed Kafka Connect connectors
