E-Commerce Streaming Architecture Patterns

Modern e-commerce platforms face unprecedented demands for real-time responsiveness. Customers expect instant inventory updates, personalized recommendations, and seamless experiences across web, mobile, and physical stores. Traditional batch-oriented architectures struggle to meet these expectations, leading organizations to adopt streaming-first approaches.

This article explores the core architecture patterns that enable real-time e-commerce operations, the technologies that power them, and the practical challenges teams face when implementing these systems.

Introduction to E-Commerce Streaming Challenges

E-commerce platforms generate thousands to millions of events per second: product views, cart additions, purchases, inventory adjustments, pricing changes, and shipping updates. Processing these events in real-time is not merely a technical preference but a business necessity.

Consider the classic inventory problem: a popular item is shown as available on the website, but by the time a customer completes checkout, it's out of stock. This creates customer frustration and operational overhead. Batch processing with 15-minute or hourly updates exacerbates this issue.

Beyond inventory, e-commerce systems must handle:

• Real-time fraud detection during checkout

• Dynamic pricing based on demand and competition

• Personalized product recommendations that reflect recent browsing behavior

• Coordinated fulfillment across warehouses and stores

• Near-instant customer notification across email, SMS, and push channels

These requirements demand architecture patterns that treat data as continuous streams of events rather than periodic snapshots.

Core Architecture Patterns for E-Commerce Streaming

Several proven patterns form the foundation of streaming e-commerce architectures.

Event Sourcing

Event sourcing stores every state change as an immutable event. Rather than updating a database record for an order status, the system appends events like "OrderPlaced," "PaymentConfirmed," "ItemsShipped," and "OrderDelivered."

This pattern provides a complete audit trail and enables temporal queries: "What was the inventory state at 2 PM yesterday?" It also allows rebuilding derived views by replaying events, which proves valuable when introducing new features or fixing bugs.

Command Query Responsibility Segregation (CQRS)

CQRS separates write operations (commands) from read operations (queries). Commands modify state and generate events, while queries read from optimized materialized views built from those events.

For e-commerce, this means order placement commands write to an event log, while product catalog queries read from a denormalized search index. Each side scales independently based on its specific requirements—writes prioritize consistency and durability, while reads optimize for speed and specific access patterns.

Change Data Capture (CDC)

Many e-commerce platforms integrate with existing relational databases. CDC tools capture database changes (inserts, updates, deletes) and publish them as events to a streaming platform like Kafka.

This allows legacy order management or ERP systems to participate in real-time architectures without requiring application rewrites. CDC bridges traditional and modern components, enabling gradual migration strategies.

Real-Time Inventory and Order Processing

Inventory accuracy directly impacts revenue and customer satisfaction. Streaming architectures enable real-time inventory visibility across all channels.

When a customer purchases an item online, the system publishes an "InventoryReserved" event. Warehouse management systems, store point-of-sale systems, and the website all consume this event and update their local views accordingly. This approach, called eventual consistency with event-driven synchronization, balances speed with accuracy.

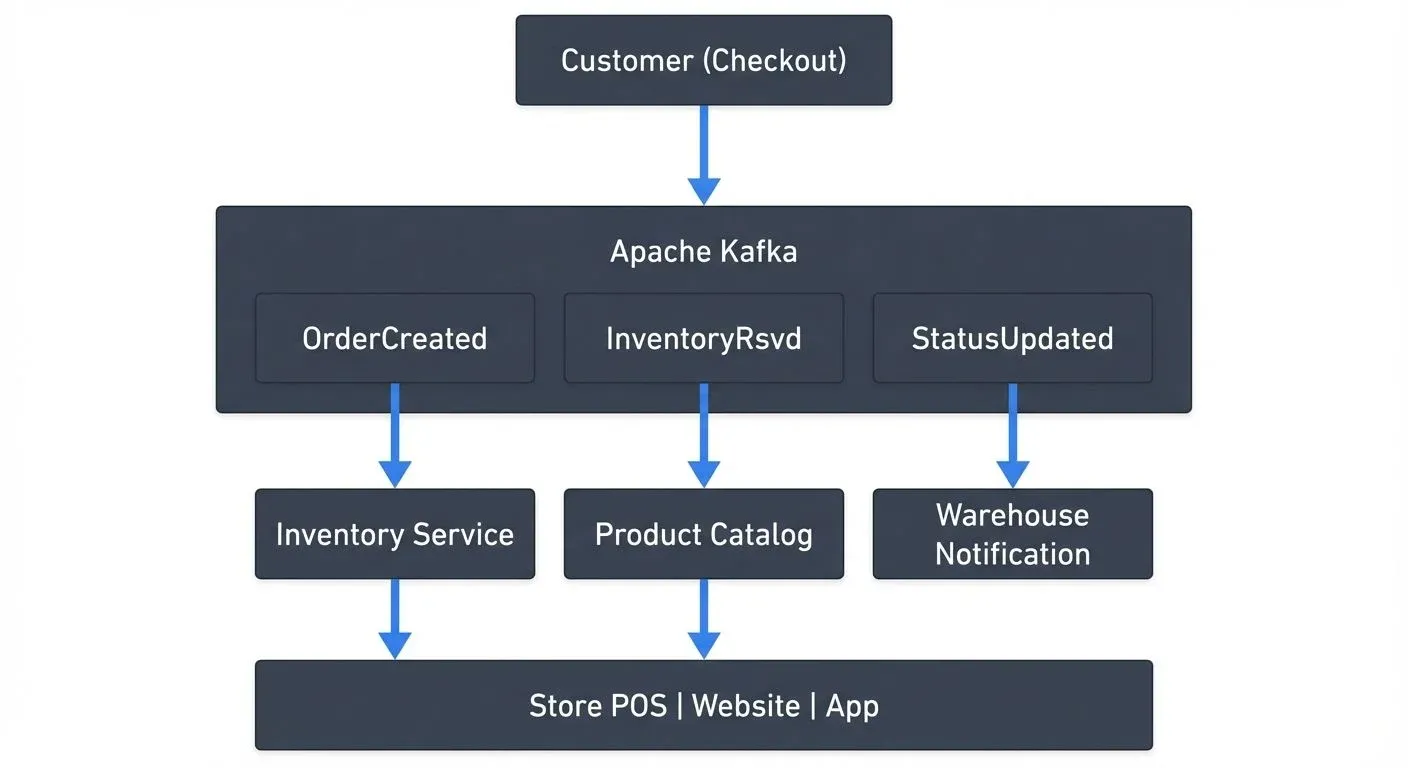

Example: Multi-Channel Inventory Synchronization

A customer buys the last unit of a product online. Within milliseconds:

1. The checkout service publishes an "OrderCreated" event to Kafka

2. An inventory service consumes this event and publishes "InventoryReserved"

3. The product catalog service updates availability status

4. Store systems receive the update and remove the item from in-store pickup options

5. A notification service alerts warehouse staff to fulfill the order

┌──────────────┐
│   Customer   │
│  (Checkout)  │
└──────┬───────┘
       │
       ▼
┌────────────────────────────────────────────────────────────────┐
│                      Apache Kafka                              │
│  ┌──────────────┐  ┌──────────────┐  ┌──────────────┐         │
│  │OrderCreated  │  │InventoryRsvd │  │StatusUpdated │         │
│  └──────────────┘  └──────────────┘  └──────────────┘         │
└────────────────────────────────────────────────────────────────┘
       │                  │                    │
       ▼                  ▼                    ▼
┌────────────┐    ┌──────────────┐    ┌──────────────┐
│ Inventory  │    │   Product    │    │ Warehouse    │
│  Service   │    │   Catalog    │    │ Notification │
└────────────┘    └──────────────┘    └──────────────┘
       │                  │
       ▼                  ▼
┌──────────────────────────────────┐
│  Store POS  │  Website  │  App   │
└──────────────────────────────────┘

This entire flow completes in under a second, preventing overselling and improving operational efficiency.

Order orchestration also benefits from streaming patterns. Rather than a monolithic order service, microservices coordinate through events. Payment verification, fraud checks, inventory allocation, and shipping preparation happen in parallel where possible, reducing total order processing time.

Customer Experience and Personalization Streams

Real-time personalization requires processing customer behavior as it happens. When a customer views products, these events feed recommendation engines that update suggestions within the same session.

Streaming architectures enable:

• Session-based recommendations: Analyzing current browsing behavior to suggest complementary products

• Real-time customer segmentation: Updating customer profiles based on purchase patterns and assigning to dynamic segments for targeted promotions

• Dynamic pricing: Adjusting prices based on demand signals, competitor pricing, and inventory levels

• Abandoned cart recovery: Triggering immediate follow-up when customers leave items in their cart

Example: Real-Time Recommendation Pipeline

A fashion retailer uses Kafka to stream clickstream data to Apache Flink. Flink maintains stateful aggregations of customer preferences and product affinities. When a customer views a dress, Flink:

1. Updates the customer's style profile based on attributes (color, pattern, price range)

2. Queries similar products from a pre-computed graph

3. Publishes personalized recommendations to a cache

4. The web application retrieves and displays these recommendations in milliseconds

This real-time processing increases conversion rates by showing relevant products while customer intent is high.

Data Streaming Technologies in E-Commerce

Apache Kafka has become the de facto standard for e-commerce event streaming. Its distributed, fault-tolerant design handles high throughput while maintaining event ordering guarantees within partitions.

Key Kafka capabilities for e-commerce:

• Durability: Events persist to disk, enabling replay for recovery or new consumer applications

• Scalability: Horizontal scaling supports growing transaction volumes

• Exactly-once semantics: Critical for financial transactions and inventory operations

• Consumer groups: Multiple applications process the same events independently

Stream processing frameworks complement Kafka:

Apache Flink excels at stateful stream processing with low latency. E-commerce use cases include real-time analytics, complex event processing for fraud detection, and maintaining materialized views.

Kafka Streams provides a lightweight library for building streaming applications. Its simplicity makes it attractive for teams already invested in the Kafka ecosystem.

Apache Spark Structured Streaming bridges batch and streaming paradigms, useful for organizations with existing Spark expertise.

The choice depends on latency requirements, team skills, and integration with existing infrastructure.

Monitoring and Governance Challenges

Operating streaming architectures at e-commerce scale introduces significant operational challenges.

Schema Evolution

Product catalogs change frequently—new attributes, seasonal categories, promotional fields. Each change potentially impacts dozens of microservices consuming product events. Managing schema evolution without breaking consumers requires discipline and tooling.

Schema registries enforce compatibility rules, preventing producers from publishing incompatible changes. Teams must decide between forward, backward, or full compatibility based on their deployment practices.

Governance platforms provide visibility into schema usage across topics and consumers, helping teams understand the impact of proposed changes before deployment. This governance becomes critical when dozens of teams independently develop services consuming shared event streams.

Data Quality and Monitoring

Real-time systems fail in real-time. Monitoring must detect issues like:

• Unexpected event volume spikes or drops

• Consumer lag indicating processing bottlenecks

• Schema validation failures

• Duplicate or out-of-order events

E-commerce platforms require monitoring at multiple levels: infrastructure metrics (broker health, disk usage), application metrics (processing latency, error rates), and business metrics (order completion rates, inventory accuracy).

Distributed tracing helps diagnose issues across microservices. When an order fails, teams need to trace the flow from checkout through payment, inventory, and fulfillment services to identify the failure point.

Compliance and Data Privacy

E-commerce systems process sensitive customer data subject to regulations like GDPR and CCPA. Streaming architectures must implement:

• Data masking: Removing or encrypting PII in events

• Retention policies: Automatically purging events after specified periods

• Access controls: Ensuring only authorized services consume sensitive topics

• Audit trails: Tracking who accessed what data and when

These requirements demand robust governance frameworks with data masking and access control features to enforce these policies consistently across streaming infrastructure.

Summary

E-commerce streaming architecture patterns enable the real-time responsiveness modern customers expect. Event sourcing, CQRS, and CDC provide the foundational patterns, while technologies like Apache Kafka and Flink deliver the required performance and scalability.

Successful implementations balance technical complexity with operational maturity. Start with high-value use cases like inventory synchronization or real-time recommendations where streaming provides clear business benefits. Build organizational expertise gradually, investing in monitoring, governance, and developer tooling.

The shift from batch to streaming represents a fundamental architectural change. Teams must evolve development practices, operational procedures, and organizational structure to fully realize the benefits. However, the competitive advantages—reduced overselling, improved personalization, faster order fulfillment—justify the investment for organizations operating at scale.

As e-commerce continues to grow and customer expectations rise, streaming architectures will transition from competitive advantage to baseline requirement. Understanding these patterns positions engineering teams to build platforms that scale with business demands.
