Event-Driven Microservices Architecture
A comprehensive guide to building scalable distributed systems using event-driven microservices. Learn core patterns, implementation challenges, and how data streaming platforms enable asynchronous communication between services.
Event-Driven Microservices Architecture
Modern applications require flexibility, scalability, and resilience. As systems grow in complexity, traditional request-response architectures often struggle to meet these demands. Event-driven microservices architecture addresses these challenges by combining the modularity of microservices with the loose coupling and asynchronous communication of event-driven design.
This article explores what event-driven microservices are, their core components, benefits and trade-offs, and how they connect to modern data streaming platforms.
What is Event-Driven Microservices Architecture?
Event-driven microservices architecture is a design pattern where independent services communicate by publishing and consuming events rather than making direct synchronous calls. An event represents a state change or significant occurrence in the system, such as "OrderPlaced" or "PaymentProcessed."
In this architecture, services don't need to know about each other directly. Instead, they publish events to an event broker when something noteworthy happens. Other services that care about those events subscribe to them and react accordingly. This decoupling enables services to evolve independently and reduces cascading failures when one service becomes unavailable.
The key distinction from traditional microservices is the communication pattern. Instead of Service A calling Service B's API directly, Service A publishes an event that Service B listens for. This shift from "tell me" to "I'll tell you when something happens" fundamentally changes how systems are designed.
Core Components and Patterns
Event Broker
The event broker is the central nervous system of an event-driven architecture. It receives events from producers and delivers them to consumers. Popular event brokers include Apache Kafka, RabbitMQ, and Amazon EventBridge. The broker provides persistence, ordering guarantees, and the ability to replay events.
Producers and Consumers
Producers are services that publish events when their internal state changes. Consumers subscribe to specific event types and execute business logic in response. A single event may have multiple consumers, each handling it differently based on their responsibilities.
Common Patterns
Event Sourcing stores every state change as an event, creating an immutable audit log. Instead of storing current state, you store the sequence of events that led to that state. This enables time travel debugging and complete system reconstruction.
Command Query Responsibility Segregation (CQRS) separates write operations (commands) from read operations (queries). Events update specialized read models optimized for specific queries, improving performance and scalability.
Saga Pattern manages distributed transactions across multiple services. Instead of a two-phase commit, each service performs its local transaction and publishes an event. If something fails, compensating events undo previous operations.
Benefits and Trade-offs
Benefits
Loose Coupling: Services don't need to know about downstream consumers. You can add new services that react to existing events without modifying producers.
Scalability: Services can be scaled independently based on their event processing needs. If one consumer can't keep up, you can add more instances without affecting other parts of the system.
Resilience: When a service goes down, events are retained by the broker. Once the service recovers, it can process missed events. This prevents data loss and enables self-healing systems.
Flexibility: New features can be built by subscribing to existing events. This accelerates development and reduces the risk of breaking existing functionality.
Trade-offs
Increased Complexity: Debugging distributed systems is harder than monoliths. Understanding how data flows through multiple asynchronous services requires sophisticated monitoring and tracing tools.
Eventual Consistency: Unlike synchronous systems where you get immediate confirmation, event-driven systems embrace eventual consistency. Different services may temporarily have different views of the data.
Message Ordering: Ensuring events are processed in the correct order across partitions and services requires careful design. Out-of-order processing can lead to incorrect state.
Event-Driven Architecture and Data Streaming
Data streaming platforms like Apache Kafka and Apache Flink are the foundation of modern event-driven microservices. While a simple message queue might work for basic use cases, streaming platforms provide critical capabilities for production systems.
Event Persistence and Replay
Unlike traditional message queues that delete messages after consumption, Kafka retains events for a configured period. This enables new services to replay historical events, recover from failures, and reprocess data with updated logic. You can rebuild entire databases from the event stream if needed.
Stream Processing
Apache Flink and Kafka Streams enable real-time event processing. You can filter, aggregate, join, and transform events as they flow through the system. For example, you might compute running totals, detect patterns, or enrich events with data from other sources.
Scalability Through Partitioning
Kafka partitions events by key, enabling parallel processing across multiple consumer instances. If you partition orders by customer ID, different consumers can independently process different customers' orders, dramatically increasing throughput.
Schema Evolution
As your system evolves, event structures change. Schema registries (like Confluent Schema Registry) enforce compatibility rules and enable consumers to handle multiple event versions gracefully. This prevents breaking changes from cascading through your system.
Tools like Conduktor help manage these complexities by providing visual monitoring of event flows, schema validation, and data governance capabilities across your streaming infrastructure.
Implementation Challenges
Exactly-Once Semantics
Ensuring each event is processed exactly once is difficult in distributed systems. Network failures can cause duplicate deliveries or lost messages. Kafka provides exactly-once semantics, but implementing it correctly requires understanding idempotent producers and transactional consumers.
Event Schema Design
Poorly designed event schemas create technical debt. Events should be immutable and self-contained with all necessary context. Avoid referencing external state that might change. Use descriptive names and include metadata like timestamps and correlation IDs for debugging.
Monitoring and Observability
Traditional request-response monitoring doesn't work for asynchronous systems. You need distributed tracing to follow events across service boundaries, metrics for lag and throughput, and alerting for processing delays. Understanding end-to-end latency requires correlation IDs that flow through the entire event chain.
Testing
Testing event-driven systems is complex. Unit tests work for individual services, but integration tests must verify event flows across multiple services. Consider contract testing to ensure producers and consumers agree on event formats, and use test event streams to validate behavior without affecting production.
Real-World Examples

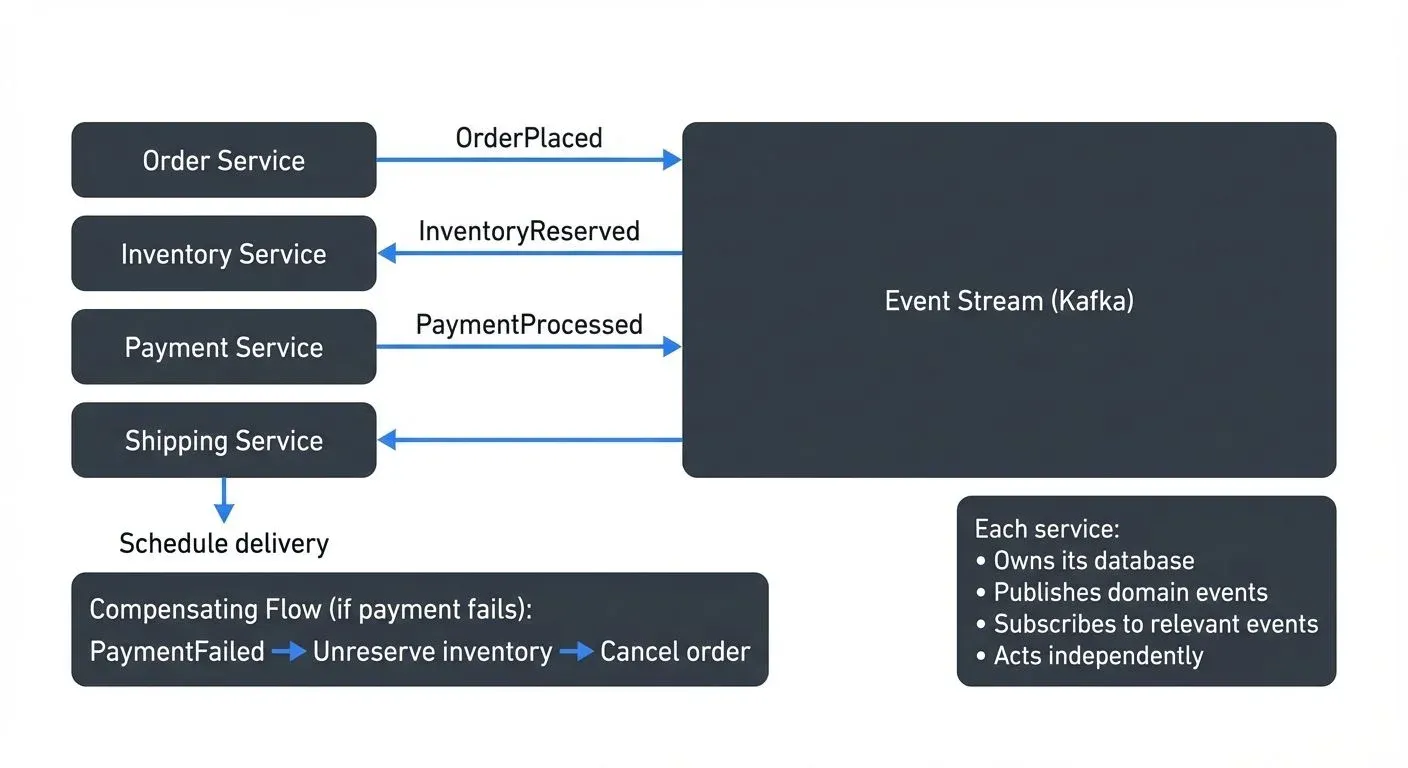

E-commerce Order Processing
When a customer places an order, the Order Service publishes an "OrderPlaced" event. The Inventory Service consumes this event and reserves stock, then publishes "InventoryReserved." The Payment Service listens for inventory confirmation and processes payment, publishing "PaymentProcessed." Finally, the Shipping Service reacts to successful payment and schedules delivery.
If payment fails, a "PaymentFailed" event triggers compensating actions in other services to unreserve inventory and cancel the order. Each service maintains its own database and operates independently, but they coordinate through events to complete the business process.
Financial Transaction Processing
Banks use event sourcing to maintain complete audit trails of every transaction. Each account operation (deposit, withdrawal, transfer) is stored as an event. The current balance is computed by replaying all events for that account. This provides regulatory compliance, enables fraud detection through pattern analysis, and supports disaster recovery by rebuilding state from events.
Summary
Event-driven microservices architecture combines the independence of microservices with the loose coupling of event-driven design. Services communicate through events published to a broker, enabling scalability, resilience, and flexibility. However, this approach introduces complexity around eventual consistency, debugging, and message ordering.
Data streaming platforms like Apache Kafka provide the foundation for production event-driven systems, offering persistence, replay, stream processing, and scalability through partitioning. Success requires careful attention to schema design, monitoring, testing, and operational tooling.
This architecture excels when you need independent service scaling, complex workflows across multiple systems, or complete audit trails. It's particularly valuable in domains like e-commerce, financial services, and real-time analytics where business processes span multiple bounded contexts.
Start small with a few services and core events, then expand as you gain experience with the patterns and operational practices. The investment in learning event-driven architecture pays dividends in system flexibility and resilience.
Sources and References
Fowler, Martin. "What do you mean by 'Event-Driven'?" martinfowler.com, 2017. https://martinfowler.com/articles/201701-event-driven.html
Newman, Sam. "Building Microservices: Designing Fine-Grained Systems." O'Reilly Media, 2021.
Richardson, Chris. "Pattern: Event-driven architecture." Microservices.io. https://microservices.io/patterns/data/event-driven-architecture.html
Apache Kafka Documentation. "Event Sourcing." Apache Software Foundation. https://kafka.apache.org/documentation/
Stopford, Ben. "Designing Event-Driven Systems." Confluent, 2018. https://www.confluent.io/designing-event-driven-systems/
