RAG Pipelines with Real-Time Data

Retrieval-Augmented Generation (RAG) has become a cornerstone technique for building AI applications that combine the reasoning capabilities of large language models (LLMs) with external knowledge sources. However, many RAG implementations suffer from a critical limitation: stale data. When your knowledge base updates hourly, daily, or even weekly, your AI system risks providing outdated or incorrect information to users.

Real-time RAG pipelines address this challenge by continuously ingesting, processing, and indexing fresh data as it becomes available. This article explores how to build RAG systems that stay current with streaming data, the architectural patterns involved, and the role of data streaming platforms in making this possible.

What is RAG and Why Real-Time Matters

Retrieval-Augmented Generation works by retrieving relevant context from a knowledge base and including it in prompts sent to an LLM. When a user asks a question, the system:

1. Converts the query into a vector embedding

2. Searches a vector database for semantically similar documents

3. Retrieves the top matching documents

4. Constructs a prompt combining the query and retrieved context

5. Sends this augmented prompt to the LLM for generation

This approach allows LLMs to access information beyond their training data and reduces hallucinations by grounding responses in factual sources.

The problem arises when the knowledge base becomes outdated. Consider a customer support chatbot that relies on product documentation. If a critical bug fix is deployed but the documentation isn't updated in the RAG system for hours, the chatbot will continue providing incorrect troubleshooting steps. In industries like finance, healthcare, or real-time monitoring, stale data can have serious consequences.

Real-time RAG pipelines eliminate this lag by treating data updates as a continuous stream rather than periodic batches.

Traditional RAG vs Real-Time RAG

Traditional RAG pipelines typically operate on a batch schedule:

• Documents are collected periodically (hourly, daily)

• A batch job generates embeddings for new or updated content

• Embeddings are bulk-loaded into the vector database

• The system uses this snapshot until the next update cycle

This approach is simple but introduces latency between data creation and availability in the knowledge base. Real-time RAG, by contrast, processes updates as events:

• Data changes trigger immediate events (database updates, API calls, file modifications)

• A streaming platform captures these events in real-time

• Embeddings are generated continuously as data arrives

• Vector database updates happen within seconds or milliseconds of source changes

The key difference is the shift from pull-based batch processing to push-based event streaming. This requires different architectural patterns and tooling.

Building a Real-Time RAG Pipeline

A real-time RAG pipeline consists of several interconnected components:

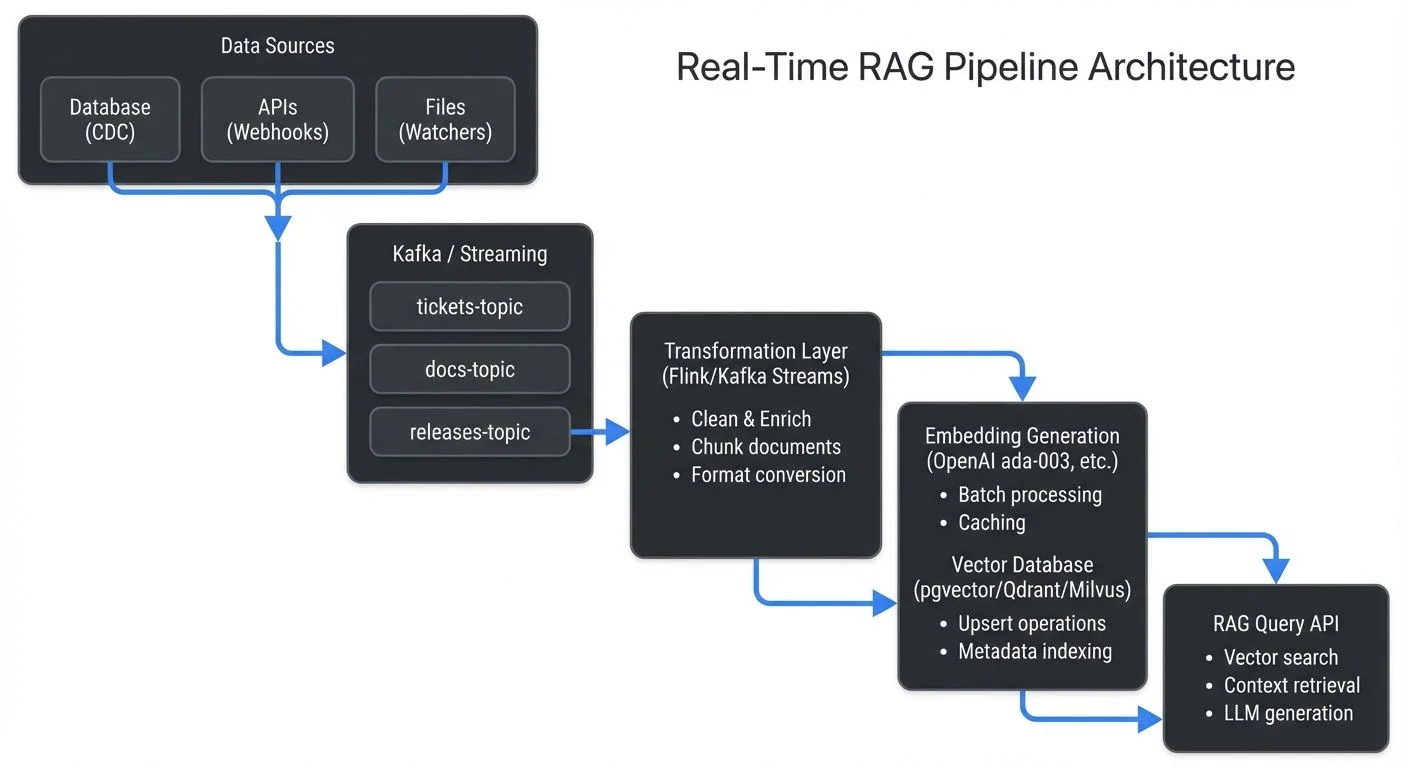

         Real-Time RAG Pipeline Architecture

┌──────────────────────────────────────────────────┐
│            Data Sources                          │
│  ┌──────────┐  ┌──────────┐  ┌──────────┐      │
│  │Database  │  │   APIs   │  │  Files   │      │
│  │  (CDC)   │  │(Webhooks)│  │(Watchers)│      │
│  └────┬─────┘  └────┬─────┘  └────┬─────┘      │
└───────┼─────────────┼─────────────┼─────────────┘
        │             │             │
        └─────────────┼─────────────┘
                      ▼
         ┌────────────────────────┐
         │   Kafka / Streaming    │
         │  ┌──────────────────┐  │
         │  │ tickets-topic    │  │
         │  │ docs-topic       │  │
         │  │ releases-topic   │  │
         │  └──────────────────┘  │
         └───────────┬────────────┘
                     │
                     ▼
         ┌────────────────────────┐
         │  Transformation Layer  │
         │  (Flink/Kafka Streams) │
         │  • Clean & Enrich      │
         │  • Chunk documents     │
         │  • Format conversion   │
         └───────────┬────────────┘
                     │
                     ▼
         ┌────────────────────────┐
         │  Embedding Generation  │
         │  (OpenAI/Cohere API)   │
         │  • Batch processing    │
         │  • Caching             │
         └───────────┬────────────┘
                     │
                     ▼
         ┌────────────────────────┐
         │   Vector Database      │
         │ (Pinecone/Weaviate)    │
         │  • Upsert operations   │
         │  • Metadata indexing   │
         └───────────┬────────────┘
                     │
                     ▼
         ┌────────────────────────┐
         │      RAG Query API     │
         │  • Vector search       │
         │  • Context retrieval   │
         │  • LLM generation      │
         └────────────────────────┘

Data Sources and Change Data Capture

The pipeline begins with capturing changes from source systems. Common patterns include:

• Database CDC (Change Data Capture): Tools like Debezium capture row-level changes from databases (INSERT, UPDATE, DELETE) and publish them as events

• Application events: Services emit events when business actions occur (new ticket created, document updated, transaction completed)

• File system watchers: Monitor directories for new or modified files

• API webhooks: External systems push updates via HTTP callbacks

Streaming Platform

A streaming platform like Apache Kafka acts as the central nervous system, organizing events by data type. Events are retained for configurable periods, enabling replay and recovery. Multiple consumers can process the same events independently, and partitioning enables parallel processing for high throughput.

Transformation and Enrichment

Raw change events often need processing before embedding generation: data cleaning (remove HTML tags, standardize formats, filter sensitive fields), enrichment (join with reference data), chunking (split large documents), and format conversion (transform to text suitable for semantic search).

Apache Flink or Kafka Streams can perform these transformations in real-time, maintaining exactly-once processing semantics to ensure data consistency.

Embedding Generation

The transformation layer outputs text chunks to an embedding service. Modern embedding models convert text to dense vector representations. Batch requests improve throughput, caching reduces API costs, and error handling manages rate limits and transient failures.

Vector Database Writes

Finally, embeddings and metadata are written to a vector database. Upsert operations handle both new documents and updates to existing ones. Metadata filters enable hybrid search, and partitioning strategies manage large-scale deployments across regions or tenants.

The Streaming Data Connection

Data streaming platforms are essential to real-time RAG for several reasons:

Decoupling: Source systems don't need to know about downstream embedding pipelines. They publish events to Kafka, and consumers process them asynchronously. This separation allows RAG systems to evolve independently.

Scalability: Kafka's partitioned log architecture enables horizontal scaling. As embedding generation demand grows, you can add more consumer instances to process events in parallel.

Reliability: Event persistence means the pipeline can recover from failures without data loss. If the embedding service crashes, it can resume processing from the last committed offset.

Ordering and consistency: Kafka maintains message ordering within partitions, ensuring updates to the same document are processed sequentially. This prevents race conditions where an old version overwrites a newer one in the vector database.

Schema evolution: As data structures change over time, schema registries (like Confluent Schema Registry) enable backward and forward compatibility, allowing producers and consumers to evolve at different rates.

Platforms like Conduktor provide governance and monitoring for these streaming pipelines, offering visibility into data quality issues before they affect the RAG system. Schema validation, data masking for sensitive fields, and pipeline health dashboards help teams maintain reliable real-time data flows.

Managing Real-Time Embeddings at Scale

Operating a real-time RAG pipeline introduces operational challenges:

Embedding latency: Generating embeddings via API calls adds latency. A single document might take 100-500ms to embed. At high volumes, this requires careful batching and parallelization.

Cost management: Embedding APIs charge per token. Processing every minor change (like a typo correction) can be expensive. Implement deduplication and change detection to avoid re-embedding identical content.

Vector database consistency: Ensure that document deletes propagate to the vector database. Orphaned embeddings can pollute search results.

Monitoring and alerting: Track metrics like embedding generation lag, vector database write throughput, and search relevance. Anomalies might indicate pipeline degradation or data quality issues.

Practical Use Cases

Real-time RAG pipelines deliver value in scenarios where information freshness is critical:

Customer Support: As new support tickets, resolutions, and product documentation are created, they immediately become searchable by AI assistants. A support agent or chatbot can access the latest troubleshooting steps within seconds of publication.

Financial Analysis: Market data, news feeds, and regulatory filings stream continuously. Real-time RAG enables analysts to query recent events with natural language and receive context-aware summaries grounded in the latest information.

Monitoring and Incident Response: System logs, metrics, and alerts flow into a RAG system that helps engineers diagnose issues. When an outage occurs, the knowledge base includes recent deployments, configuration changes, and similar past incidents.

Summary

Real-time RAG pipelines represent the convergence of AI and event-driven architectures. By treating knowledge base updates as continuous streams rather than periodic batches, organizations can build AI systems that provide accurate, current information to users.

The architecture combines change data capture, streaming platforms like Apache Kafka, real-time transformation with Flink or Kafka Streams, embedding generation services, and vector databases. Each component plays a specific role in the data flow from source systems to queryable knowledge.

While traditional batch RAG remains suitable for static or slowly changing content, real-time RAG is essential for domains where information freshness directly impacts user value and business outcomes. As streaming infrastructure matures and becomes more accessible, real-time RAG will become the standard approach for production AI applications.

Sources and References

1. "Retrieval-Augmented Generation for Knowledge-Intensive NLP Tasks" - Lewis et al., Facebook AI Research (2020) - The foundational RAG research paper

2. Apache Kafka Documentation - https://kafka.apache.org/documentation/ - Streaming platform architecture and patterns

3. Pinecone Vector Database Documentation - https://docs.pinecone.io/ - Real-time vector indexing and search

4. Debezium Documentation - https://debezium.io/documentation/ - Change Data Capture for databases

5. "Building LLM Applications for Production" - Chip Huyen (2023) - Practical patterns for production LLM systems including RAG
