Real-Time ML Pipelines: Machine Learning on Streaming Data

Introduction: From Batch to Real-Time ML

Traditional machine learning systems operate in batch mode: data is collected, processed overnight or periodically, models are trained on historical data, and predictions are generated in large batches. While this approach works for many scenarios, it fundamentally limits how quickly systems can respond to changing conditions.

Real-time ML pipelines process streaming data to deliver predictions with millisecond to sub-second latency. Unlike batch systems that might update every 24 hours, real-time ML continuously ingests events, computes features on-the-fly, and serves predictions immediately.

Consider fraud detection: by the time a batch system identifies suspicious patterns from yesterday's data, fraudulent transactions have already cleared. Real-time ML evaluates each transaction as it occurs, blocking fraud before money moves.

Real-Time Inference vs Online Learning

It's crucial to distinguish two patterns often conflated under "real-time ML":

• Real-time inference: Models trained offline (often in batch) serve predictions on streaming data with low latency

• Online learning: Models continuously update their parameters as new data arrives, adapting without full retraining

Most production systems use real-time inference with periodic model updates. True online learning remains challenging due to stability concerns and infrastructure complexity.

Architecture Components

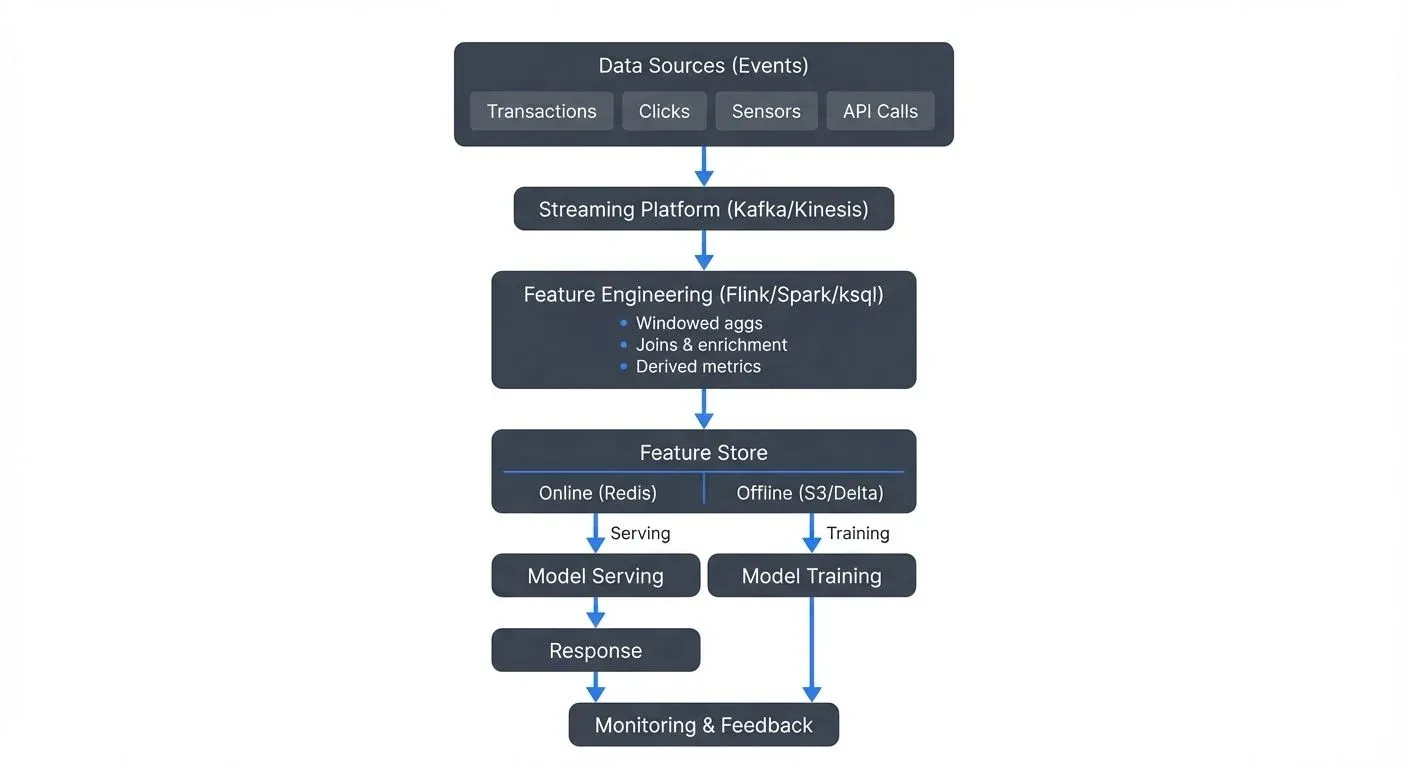

A complete real-time ML pipeline consists of several interconnected layers:

           Real-Time ML Pipeline Architecture

┌──────────────────────────────────────────────────┐
│         Data Sources (Events)                    │
│  Transactions │ Clicks │ Sensors │ API Calls    │
└────────────────┬─────────────────────────────────┘
                 │
                 ▼
      ┌──────────────────────┐
      │  Streaming Platform  │
      │   (Kafka/Kinesis)    │
      └──────────┬───────────┘
                 │
                 ▼
      ┌──────────────────────┐
      │ Feature Engineering  │
      │  (Flink/Spark/ksql)  │
      │ • Windowed aggs      │
      │ • Joins & enrichment │
      │ • Derived metrics    │
      └──────────┬───────────┘
                 │
                 ▼
      ┌──────────────────────┐
      │   Feature Store      │
      ├──────────────────────┤
      │ Online  │  Offline   │
      │ (Redis) │ (S3/Delta) │
      └────┬─────┴──────┬────┘
           │            │
    Serving│            │Training
           ▼            ▼
      ┌─────────┐  ┌─────────┐
      │  Model  │  │ Model   │
      │ Serving │  │Training │
      └────┬────┘  └────┬────┘
           │            │
           ▼            │
      ┌─────────┐       │
      │Response │       │
      └─────────┘       │
           │            │
           └────┬───────┘
                ▼
         ┌──────────────┐
         │  Monitoring  │
         │ & Feedback   │
         └──────────────┘

Feature Engineering Layer

Raw events from Kafka, Kinesis, or other streaming platforms rarely match the feature vectors models expect. The feature engineering layer transforms streaming events into ML-ready features through:

• Windowed aggregations: "user's transaction count in last 1 hour"

• Joins: enriching events with user profiles, product catalogs

• Derived metrics: ratios, percentiles, z-scores computed in real-time

Apache Flink, Spark Structured Streaming, and ksqlDB excel at these transformations, maintaining stateful computations across event streams.

Feature Stores

Feature stores solve the dual-access pattern problem: training needs historical features (batch access), while serving requires latest features (real-time lookup).

Offline store: Batch-accessible feature history for training (often Parquet/Delta Lake on S3) Online store: Low-latency key-value lookups for serving (Redis, DynamoDB, Cassandra)

Streaming feature pipelines write to both stores, ensuring training-serving consistency. Tools like Feast, Tecton, and Databricks Feature Store orchestrate this dual-write pattern.

Model Serving Infrastructure

Once features are ready, models must generate predictions within strict latency budgets. Serving patterns include:

• REST/gRPC endpoints: Synchronous request-response (TensorFlow Serving, Seldon)

• Stream processing: Predictions written to output topics (embedded models in Flink/Kafka Streams)

• Sidecar containers: Models deployed alongside application services

Feedback Loops

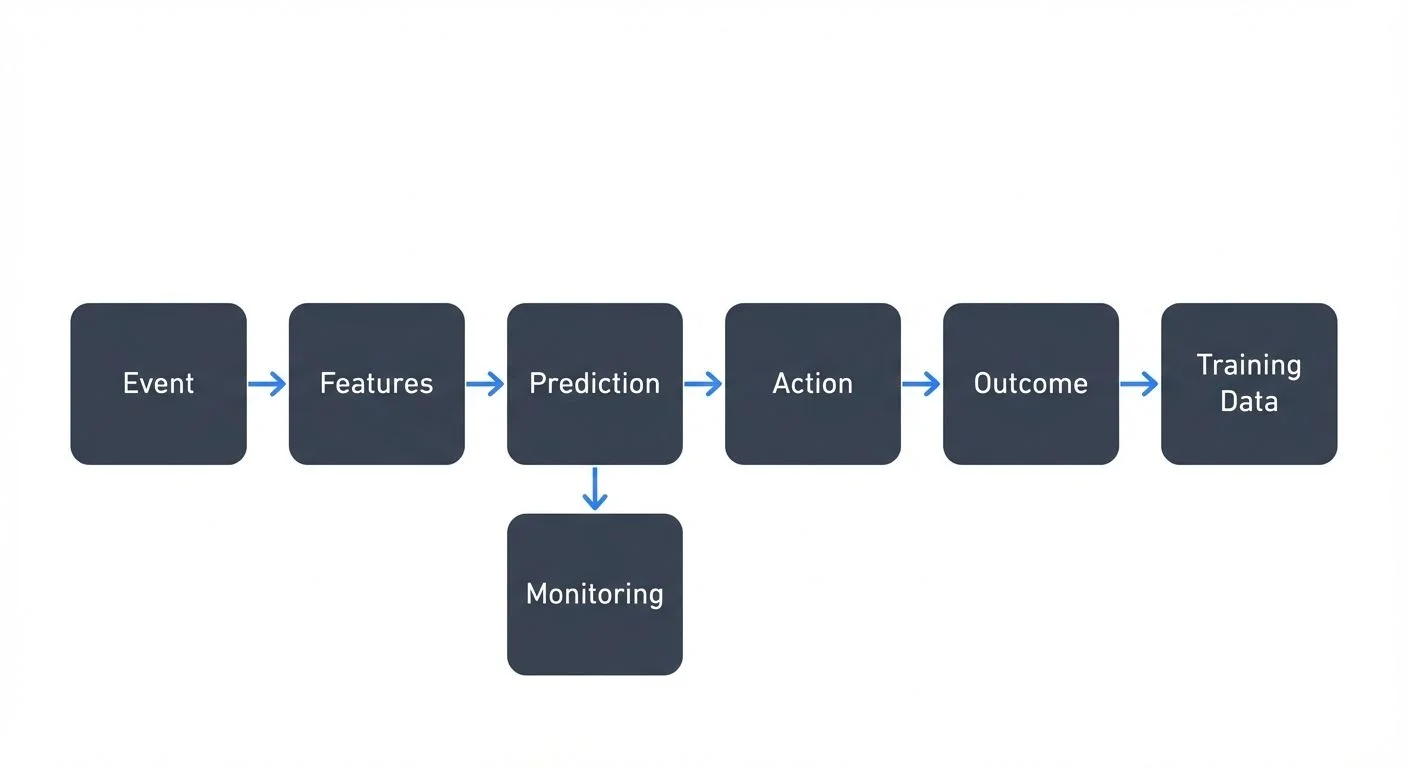

Real-time ML systems must capture prediction outcomes to detect model drift and retrain:

Event → Features → Prediction → Action → Outcome → Training Data
                       ↓
                  Monitoring

Outcomes (was the prediction correct?) feed back into training pipelines, creating continuous improvement cycles.

Real-Time Feature Engineering

Feature engineering accounts for 70-80% of real-time ML pipeline complexity. Streaming frameworks provide primitives for common patterns:

Windowed Aggregations

Time windows aggregate streaming events into features. Window types include:

• Tumbling: Fixed, non-overlapping intervals

• Sliding: Overlapping intervals (e.g., last 1 hour, updated every 5 minutes)

• Session: Dynamic windows based on activity gaps

Sessionization

User sessions (sequences of activity separated by inactivity) are powerful features that capture user intent and engagement patterns critical for recommendations and personalization.

Feature Freshness Guarantees

Real-time features have expiration semantics. A "user's 1-hour transaction count" computed at 2:00 PM becomes stale by 3:01 PM.

Feature stores track feature freshness:

• Timestamp: When the feature was computed

• TTL: How long the feature remains valid

• Watermarks: Latest event time processed

Serving layers must handle feature staleness, either by rejecting predictions or falling back to older feature versions.

Preventing Training-Serving Skew

Training-serving skew occurs when features computed differently in training vs serving:

• Training uses Spark batch aggregations

• Serving uses Flink streaming aggregations

• Subtle logic differences cause distribution shift

Prevention strategies:

1. Single codebase: Same transformation logic for batch and streaming

2. Backfill validation: Run streaming pipeline on historical data, compare to batch features

3. Feature store contracts: Schema enforcement ensures consistent feature definitions

Model Serving Patterns

Embedded Models

Models run inside stream processing applications (Flink, Kafka Streams).

Pros: No network latency, batch predictions Cons: Tight coupling, difficult to update models independently

Sidecar Pattern

Models deploy as sidecar containers alongside application pods.

Pros: Language independence, separate scaling Cons: Local communication overhead, resource contention

Dedicated Model Servers

Centralized serving infrastructure (TensorFlow Serving, Seldon, KServe).

Pros: Independent scaling, specialized hardware (GPUs), A/B testing Cons: Network latency, additional infrastructure

Latency and Throughput Trade-offs

Choose based on your latency SLA and model complexity.

Online Learning vs Real-Time Inference

Real-Time Inference (Common)

Models trained offline periodically, served in real-time:

1. Collect data in feature store (continuous)

2. Train model on historical data (daily/weekly)

3. Deploy new model version

4. Serve predictions on streaming data

Advantages: Stable models, rigorous validation, mature tooling

Online Learning (Advanced)

Models update continuously as data arrives. This requires careful handling of incremental learning where the model updates its parameters with each new batch of data.

Challenges:

• Catastrophic forgetting: New data erases old knowledge

• Concept drift detection: When to trust new patterns vs ignore noise

• Validation: How to evaluate continuously updating models

Use cases: Ad click prediction, content ranking where patterns shift rapidly

A/B Testing and Shadow Deployment

Before fully deploying new models:

Shadow mode: New model scores traffic but doesn't serve predictions. Both models run in parallel, but only the primary model's predictions are used. This allows comparison before switching.

A/B testing: Split traffic between model versions, typically starting with a small percentage for the new model and gradually increasing based on performance metrics.

Production Considerations

Latency Requirements

Real-time ML systems must meet strict SLAs:

• p50 latency: Typical case performance

• p99 latency: 99th percentile, catches tail latencies

• p999 latency: Extreme cases, often determines user experience

Example targets:

• Fraud detection: p99 < 50ms

• Recommendations: p99 < 200ms

• Search ranking: p99 < 100ms

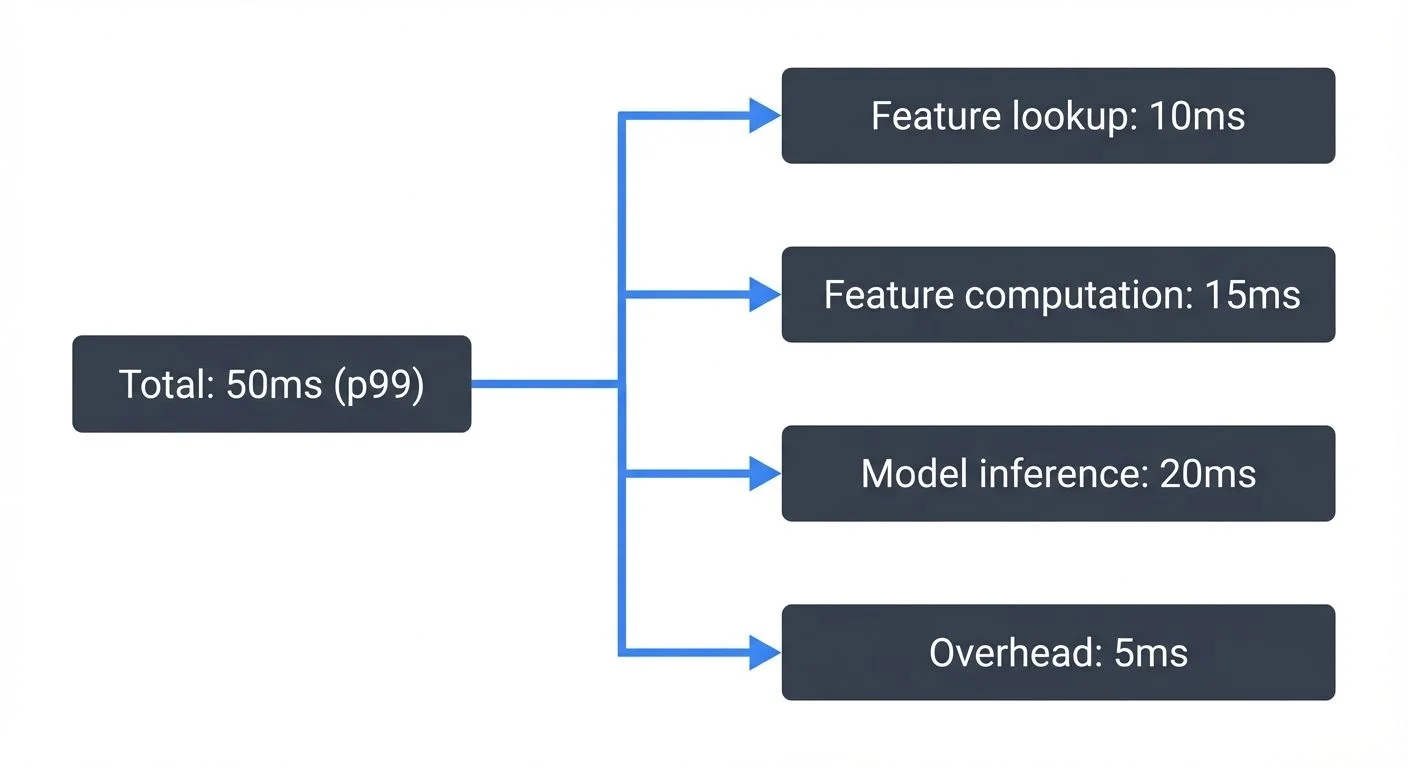

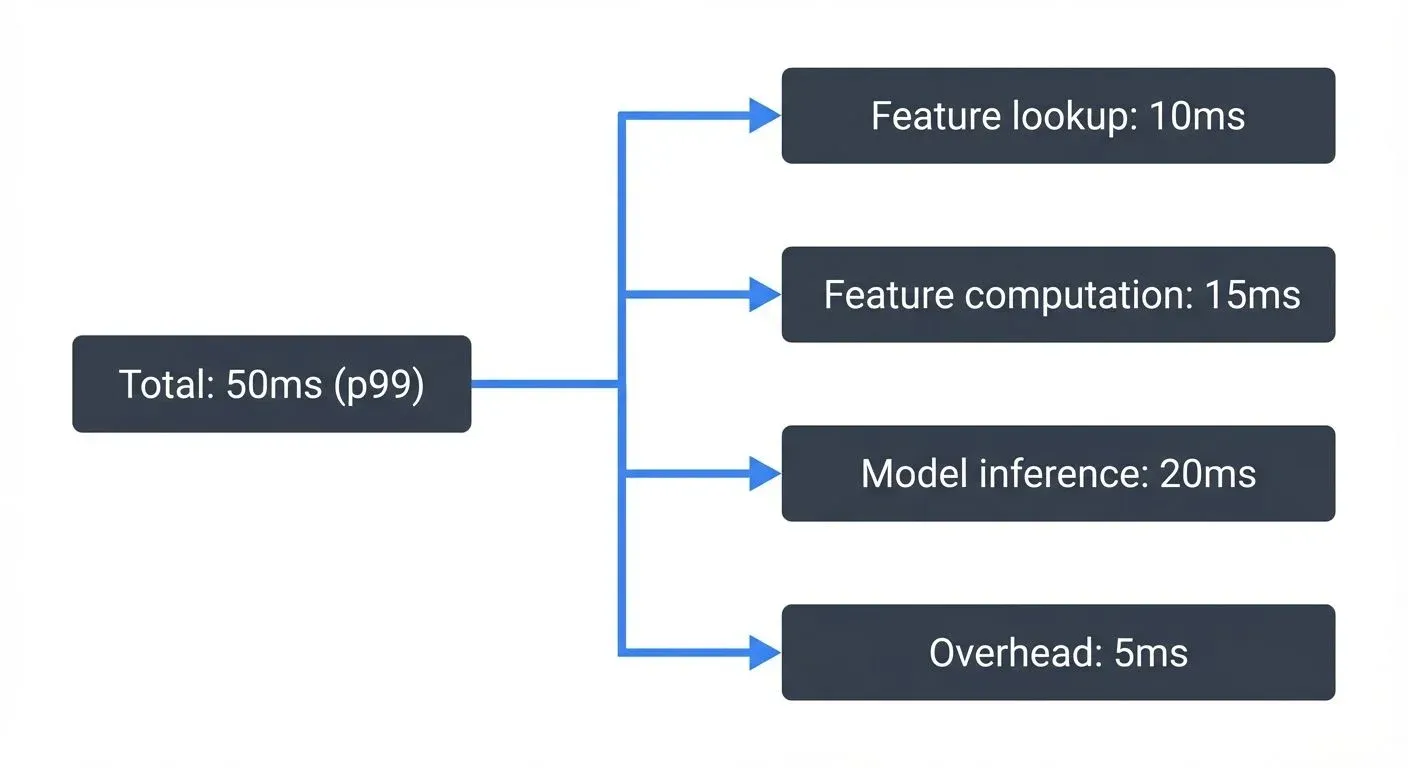

Latency budget breakdown:

Total: 50ms (p99)
├─ Feature lookup: 10ms
├─ Feature computation: 15ms
├─ Model inference: 20ms
└─ Overhead: 5ms

Instrument each component to identify bottlenecks.

Feature Quality Monitoring

Features can degrade silently:

• Upstream data quality: Source events missing fields, schema changes

• Computation errors: Window aggregations incorrect due to late data

• Staleness: Feature updates delayed due to infrastructure issues

Monitoring strategies: Validate feature ranges, check for null values, track staleness, and log feature distributions to alert on drift from expected ranges.

Model Lineage and Auditing

In regulated industries (finance, healthcare), you must explain predictions:

Model lineage tracks:

• Training data version and time range

• Feature definitions and versions

• Hyperparameters and training code commit

• Evaluation metrics pre-deployment

Prediction auditing logs:

• Input features used

• Model version that generated prediction

• Prediction value and confidence

• Outcome (if available)

This enables reproducing predictions and diagnosing errors months later.

Data Governance for ML Pipelines

As real-time ML systems scale, data governance becomes critical. Governance platforms provide:

• Schema validation: Ensure streaming events match feature expectations

• Data quality gates: Block corrupt data before it reaches feature pipelines

• Lineage tracking: Trace features from source events through transformations

• Access controls: Restrict who can modify feature definitions or deploy models

• Audit logs: Track all changes to feature pipelines and model deployments

For example, governance systems can enforce that all events in the transactions topic include required fields (user_id, amount, timestamp) before feature engineering begins, preventing silent failures in downstream ML pipelines.

Use Cases and Implementation

Fraud Detection Systems

Real-time requirements: Evaluate transactions before authorization (50-100ms)

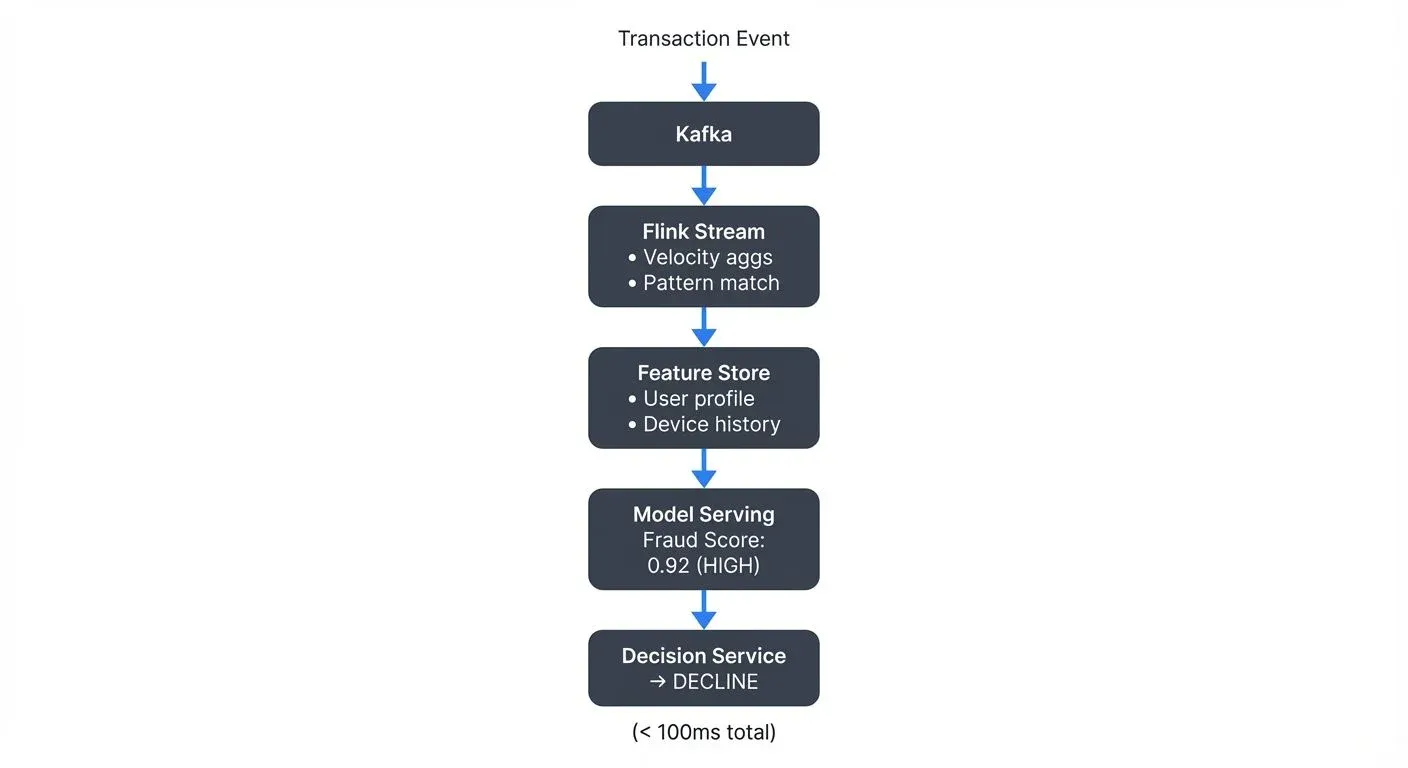

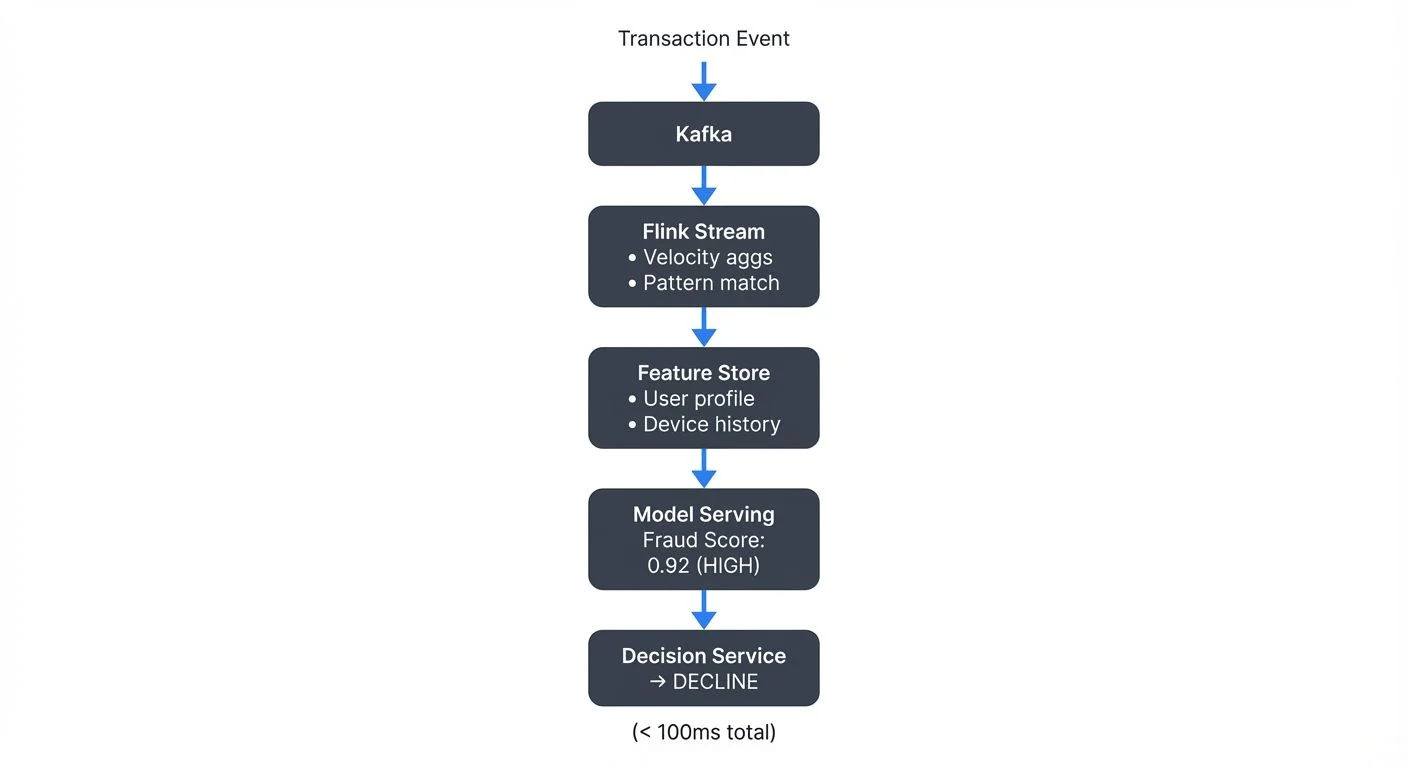

      Fraud Detection Real-Time Pipeline

Transaction Event
      │
      ▼
┌──────────────┐
│    Kafka     │
└──────┬───────┘
       │
       ▼
┌──────────────────┐
│  Flink Stream    │
│  • Velocity aggs │
│  • Pattern match │
└──────┬───────────┘
       │
       ▼
┌──────────────────┐
│  Feature Store   │
│  • User profile  │
│  • Device history│
└──────┬───────────┘
       │
       ▼
┌──────────────────┐
│  Model Serving   │
│  Fraud Score:    │
│  0.92 (HIGH)     │
└──────┬───────────┘
       │
       ▼
┌──────────────────┐
│ Decision Service │
│  → DECLINE       │
└──────────────────┘
   (<

Features:

• Velocity: Transaction count in last 1h/24h/7d

• Behavioral: Distance from user's typical transaction amount/merchant

• Contextual: Device fingerprint, IP geolocation

Real-Time Recommendations

Real-time requirements: Personalize content as users browse (100-300ms)

Features:

• User history: Recently viewed items, categories

• Session context: Current session duration, items viewed

• Popularity: Trending items in last 1h

Recommendations are computed by aggregating session data in real-time, combining it with user profiles, and calling the recommendation model to serve personalized top-K items.

Dynamic Pricing

Real-time requirements: Adjust prices based on demand signals (seconds to minutes)

Features:

• Demand indicators: Search volume, cart adds in last 15min

• Supply: Inventory levels, competitor pricing

• External: Time of day, seasonality, events

Pricing models consume demand signals (search volume, cart adds) and supply signals (inventory, competitor prices) to compute optimal prices in real-time, publishing updates back to the application database.

Infrastructure Stack

Typical real-time ML infrastructure:

Data Layer:

• Streaming: Apache Kafka, Amazon Kinesis

• Processing: Apache Flink, Spark Structured Streaming, ksqlDB

• Storage: S3/Delta Lake (offline), Redis/DynamoDB (online)

ML Layer:

• Feature Store: Feast, Tecton, Databricks Feature Store

• Training: Spark MLlib, scikit-learn, TensorFlow/PyTorch

• Serving: TensorFlow Serving, Seldon Core, KServe, AWS SageMaker

Observability:

• Metrics: Prometheus, Datadog

• Tracing: Jaeger, Zipkin

• Logging: ELK Stack, Splunk

Governance:

• Data Quality: Great Expectations, governance platforms

• MLOps: MLflow, Weights & Biases, Neptune

Conclusion

Real-time ML pipelines enable applications to react to events as they occur, powering fraud detection, personalization, and dynamic optimization. Success requires careful architecture across feature engineering, model serving, and feedback loops.

Key takeaways:

1. Distinguish real-time inference from online learning - most systems use the former

2. Feature stores bridge batch training and real-time serving - preventing training-serving skew

3. Feature engineering dominates complexity - invest in robust streaming transformations

4. Choose serving patterns based on latency SLA - embedded, sidecar, or dedicated servers

5. Production requires comprehensive monitoring - feature quality, model performance, and governance

As ML systems increasingly operate on streaming data, mastering real-time pipelines becomes essential for competitive, responsive applications. Start simple with real-time inference on periodically trained models, then evolve toward more sophisticated online learning as requirements and expertise grow.

The future of ML is real-time - building the infrastructure to support it is one of the most impactful investments in modern data systems.

Sources and References

• Apache Flink ML Documentation - Stream processing for real-time machine learning

• Feast Feature Store - Open-source feature store for ML operational architecture

• TensorFlow Serving - Production ML model serving infrastructure

• MLOps: Continuous Delivery for Machine Learning - Best practices for ML pipeline operations

• Databricks Feature Store Documentation - Unified feature management for batch and streaming
