Supply Chain Visibility with Real-Time Streaming

The Problem: When Batch Processing Fails Supply Chains

A major electronics retailer discovers a critical problem at 9 AM: their bestselling laptop shows "in stock" on the website, but the Dallas warehouse is actually empty. By noon, 50 customers have ordered the product. The warehouse can't fulfill the orders, but the inventory system won't update until the nightly batch job runs at midnight. Customer service receives angry calls, the warehouse team scrambles to expedite shipments from other locations, and the company loses thousands in overnight shipping costs.

This scenario repeats daily across industries. A pharmaceutical distributor can't track temperature-sensitive vaccines in transit because carrier updates sync every 6 hours. A manufacturer discovers supplier delays only after weekly EDI batch exchanges, causing production line shutdowns. An auto parts company maintains 40% excess inventory because batch-based demand signals arrive too late for accurate forecasting.

The root cause is the same: traditional supply chain systems process data in batches—hourly, nightly, or weekly—creating visibility gaps that cost organizations millions in expedited shipping, excess inventory, stockouts, and lost customers.

The Challenges of Traditional Supply Chain Systems

Traditional supply chain management systems face several fundamental limitations that impact visibility:

Data Silos: Different systems (ERP, WMS, TMS, CRM) operate independently, creating isolated data pools that prevent a unified view of the supply chain. Information about an order might exist in the order management system, but the warehouse system has no real-time awareness of it until the next batch synchronization.

Batch Processing Delays: Legacy systems typically synchronize data through scheduled batch jobs—every hour, every night, or even less frequently. By the time data propagates through the system, it may already be outdated. A stockout detected in the morning might not be visible to the purchasing system until the evening batch run.

Limited Event Granularity: Traditional systems often capture only state changes at major checkpoints (order placed, order shipped, order delivered) rather than continuous event streams. This means losing visibility into intermediate steps and making it impossible to detect issues early.

Scalability Constraints: As supply chains grow in complexity, batch-based systems struggle to keep up with the volume of data. Processing millions of transactions in nightly batch windows becomes increasingly difficult and error-prone.

These limitations lead to increased costs, poor customer experiences, and inability to respond quickly to supply chain disruptions.

Real-Time Streaming Architecture for Supply Chains

Streaming platforms address these challenges by treating supply chain activities as continuous streams of events rather than periodic snapshots. At the core of this approach are technologies like Apache Kafka and Apache Flink.

Event-Driven Architecture: Every meaningful action in the supply chain generates an event—a purchase order created, inventory received, shipment departed, delivery attempted. These events are published to Kafka topics, creating a real-time log of supply chain activity.

{
  "eventType": "inventory.received",
  "timestamp": "2025-01-15T14:23:45Z",
  "warehouseId": "WH-Dallas-01",
  "sku": "LAPTOP-XPS-15",
  "quantity": 500,
  "supplierId": "SUPP-8472",
  "batchId": "BATCH-2025-0115"
}

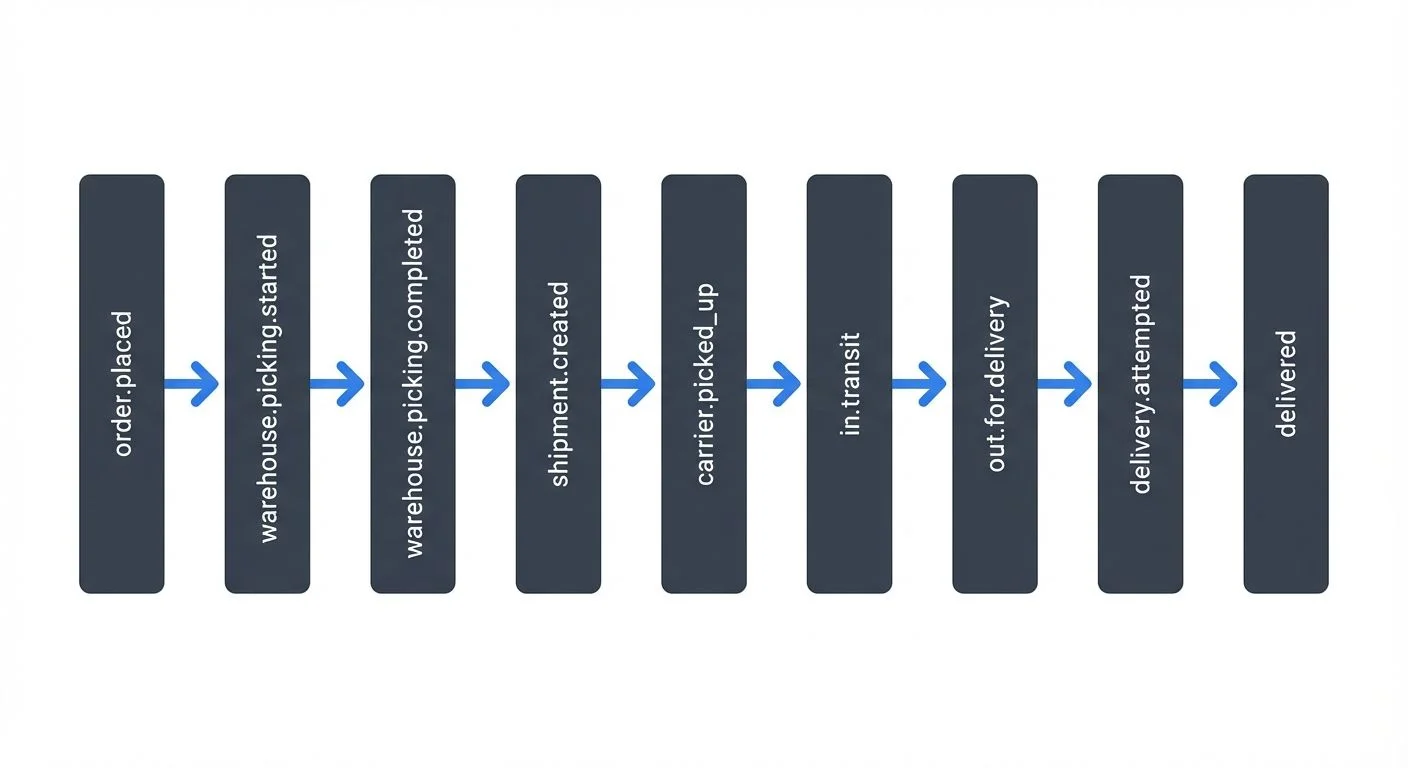

Events flow through the system in a predictable sequence:

order.placed → warehouse.picking.started → warehouse.picking.completed
→ shipment.created → carrier.picked_up → in.transit → out.for.delivery
→ delivery.attempted → delivered

Stream Processing: Apache Flink and Kafka Streams enable real-time processing of these events. Here's a Kafka Streams example that calculates real-time inventory levels:

StreamsBuilder builder = new StreamsBuilder();

// Consume inventory events
KStream<String, InventoryEvent> inventoryStream =
    builder.stream("inventory-events");

// Calculate running inventory by warehouse and SKU
KTable<String, Long> inventoryLevels = inventoryStream
    .groupBy((key, event) -> event.getWarehouseId() + ":" + event.getSku())
    .aggregate(
        () -> 0L,
        (key, event, currentLevel) -> {
            if (event.getType().equals("RECEIVED")) {
                return currentLevel + event.getQuantity();
            } else if (event.getType().equals("SHIPPED")) {
                return currentLevel - event.getQuantity();
            }
            return currentLevel;
        },
        Materialized.as("inventory-levels-store")
    );

// Detect low inventory and publish alerts
inventoryLevels
    .toStream()
    .filter((key, level) -> level < 100)
    .mapValues(level -> new InventoryAlert(key, level, "LOW_STOCK"))
    .to("inventory-alerts");

This stream processor maintains an always-current inventory view without waiting for batch reconciliation. When inventory drops below 100 units, it immediately publishes an alert.

Event Sourcing: Rather than storing only current state, streaming systems maintain the complete history of events. This provides audit trails and enables reconstructing past states—critical for compliance and root cause analysis when supply chain issues occur.

Decoupled Systems: Kafka acts as a central nervous system for the supply chain. Different systems publish and consume events independently, eliminating point-to-point integrations and reducing coupling between components. The warehouse system publishes shipment events; multiple downstream systems (customer notifications, billing, analytics) can consume them without the warehouse system knowing or caring.

Key Use Cases and Patterns

Real-time streaming enables several transformative use cases in supply chain management:

Inventory Optimization: By processing sales, shipment, and receipt events in real-time, organizations maintain accurate inventory levels across all locations. Stream processing can detect when inventory falls below reorder points and automatically trigger replenishment orders, reducing stockouts and excess inventory.

Shipment Tracking and Exception Management: Carrier tracking events, IoT sensor data, and GPS coordinates flow into streaming platforms, providing real-time shipment visibility. Stream processing applications can detect exceptions—delayed shipments, temperature excursions for pharmaceuticals, route deviations—and alert stakeholders immediately rather than discovering issues after delivery failures.

from pyflink.datastream import StreamExecutionEnvironment
from pyflink.datastream.functions import MapFunction, KeyedProcessFunction
from datetime import datetime, timedelta

class ShipmentMonitor(KeyedProcessFunction):
    def process_element(self, event, ctx):
        # Track shipment status and detect delays
        shipment_id = event['shipmentId']
        expected_delivery = datetime.fromisoformat(event['expectedDelivery'])
        current_time = datetime.now()

        if event['status'] == 'IN_TRANSIT':
            # Set timer to check for delays
            delay_check_time = expected_delivery.timestamp() * 1000
            ctx.timer_service().register_event_time_timer(delay_check_time)

        elif event['status'] == 'DELIVERED':
            # Cancel delay timer if delivered on time
            ctx.timer_service().delete_event_time_timer(
                expected_delivery.timestamp() * 1000
            )

        # Check temperature for pharma shipments
        if event.get('temperature') and event['category'] == 'PHARMA':
            temp = event['temperature']
            if temp < 2 or temp > 8:  # Cold chain breach
                yield {
                    'alertType': 'TEMPERATURE_BREACH',
                    'shipmentId': shipment_id,
                    'temperature': temp,
                    'location': event['location'],
                    'timestamp': current_time.isoformat()
                }

    def on_timer(self, timestamp, ctx):
        # Shipment delayed - send alert
        yield {
            'alertType': 'DELIVERY_DELAYED',
            'shipmentId': ctx.get_current_key(),
            'expectedDelivery': datetime.fromtimestamp(timestamp / 1000).isoformat()
        }

Demand Sensing: Combining real-time point-of-sale data, web traffic, social media signals, and external events (weather, local events) allows organizations to sense demand shifts as they happen. Streaming analytics can detect unexpected demand spikes in specific regions and trigger dynamic inventory rebalancing.

Supplier Performance Monitoring: Events from supplier systems flow into the organization's Kafka cluster, enabling real-time monitoring of supplier on-time delivery rates, quality metrics, and lead times. Stream processing can maintain supplier scorecards that update continuously rather than monthly.

End-to-End Order Tracking: Customers increasingly expect Amazon-level visibility into their orders. Streaming architectures enable building real-time tracking experiences by combining events from order management, warehouse, and carrier systems into unified customer-facing views.

Implementation Considerations

Building real-time supply chain visibility requires careful attention to several technical and organizational factors:

Data Quality and Schema Management: With events flowing from dozens of systems, maintaining data quality becomes paramount. Schema registries ensure that producers and consumers agree on event structures. Organizations need governance processes to manage schema evolution as systems change over time.

Integration Complexity: Connecting legacy ERP systems, modern cloud applications, IoT devices, and partner systems requires robust integration strategies. Change Data Capture (CDC) tools can stream changes from databases, while API gateways can convert REST API calls into events.

Data Security and Compliance: Supply chain data often includes sensitive information—customer details, pricing, proprietary business processes. Streaming platforms must implement encryption, access controls, and audit logging. For global supply chains, data residency and cross-border data transfer regulations add additional complexity.

Event Ordering and Exactly-Once Processing: Supply chain events must often be processed in order—you can't deliver before shipping. Kafka's partitioning and Flink's checkpointing mechanisms provide ordering guarantees and exactly-once processing semantics, but applications must be designed carefully to leverage these features.

Monitoring and Observability: Real-time systems require real-time monitoring. Organizations need visibility into Kafka cluster health, topic throughput, consumer lag, and stream processing application performance. Without proper observability, detecting and diagnosing issues in production becomes nearly impossible.

Managing Streaming Supply Chain Infrastructure

Operating streaming platforms at scale requires specialized tooling for monitoring cluster health, managing schemas, testing streaming applications, and ensuring data governance. Management platforms can help teams monitor consumer lag, enforce data contracts between systems, validate stream processing logic, and implement access controls for sensitive supply chain data.

Summary

Real-time supply chain visibility powered by streaming platforms represents a fundamental shift from traditional batch-based supply chain management. By treating supply chain activities as continuous event streams, organizations gain the ability to monitor, analyze, and respond to supply chain dynamics in real-time rather than hours or days later.

Apache Kafka provides the foundation for these systems, acting as a central event backbone that connects disparate supply chain systems. Apache Flink and Kafka Streams enable building sophisticated stream processing applications for inventory optimization, shipment tracking, demand sensing, and supplier monitoring.

Implementing streaming supply chain architectures requires addressing challenges in data quality, integration, security, and operational monitoring. Organizations successful in this transformation gain significant competitive advantages through reduced costs, improved customer satisfaction, and increased agility in responding to supply chain disruptions.

As supply chains continue to grow in complexity and customer expectations for visibility increase, real-time streaming technologies will become increasingly essential infrastructure for modern supply chain operations.

Sources and References

1. Apache Kafka Documentation - "Use Cases: Activity Tracking and Operational Metrics" (https://kafka.apache.org/documentation/)

2. Gartner Research - "Market Guide for Real-Time Supply Chain Visibility Platforms" (2023)

3. Apache Flink Documentation - "Stream Processing Patterns" (https://flink.apache.org/what-is-flink/)

4. Council of Supply Chain Management Professionals (CSCMP) - "State of Logistics Report: Digital Transformation in Supply Chains"

5. Martin Kleppmann - "Designing Data-Intensive Applications" - Chapter on Stream Processing and Event Sourcing
