IoT Data Streaming Architectures

The Internet of Things has transformed how we collect and process data. Billions of connected devices generate continuous streams of information, from industrial sensors monitoring equipment health to smart home devices tracking energy consumption. Traditional batch processing architectures cannot handle the volume, velocity, and variety of IoT data. This is where streaming architectures become essential.

IoT data streaming architectures enable organizations to ingest, process, and act on sensor data in real-time. These systems must handle millions of events per second, support diverse data formats, and provide low-latency processing for time-sensitive applications.

Core Components of IoT Streaming Architectures

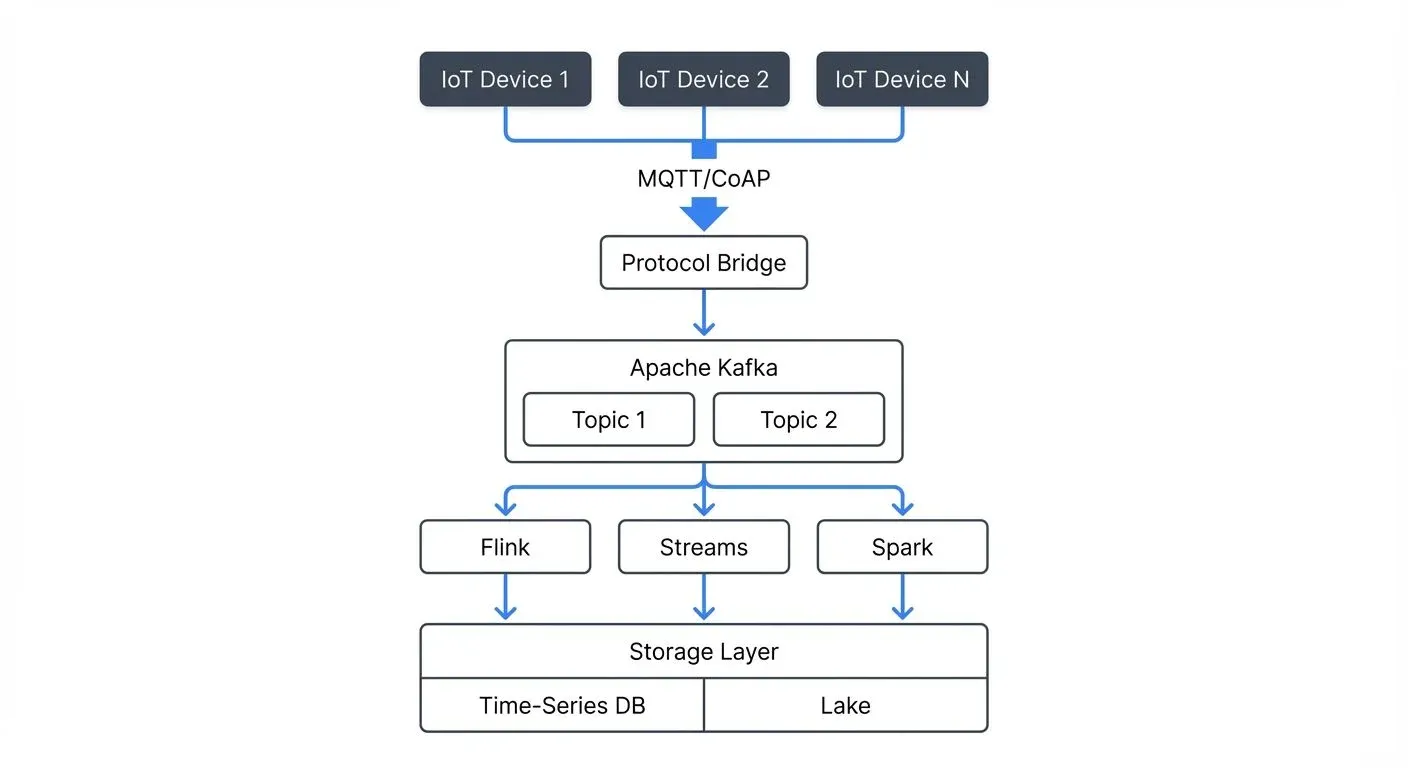

An effective IoT streaming architecture consists of several interconnected layers that work together to move data from devices to actionable insights.

┌─────────────────────────────────────────────────────────────────┐
│                    IoT Streaming Architecture                   │
└─────────────────────────────────────────────────────────────────┘

┌──────────────┐  ┌──────────────┐  ┌──────────────┐
│ IoT Device 1 │  │ IoT Device 2 │  │ IoT Device N │
└──────┬───────┘  └──────┬───────┘  └──────┬───────┘
       │                 │                 │
       └─────────────────┼─────────────────┘
                         │ MQTT/CoAP
                         ▼
              ┌──────────────────┐
              │  Protocol Bridge │
              └────────┬─────────┘
                       │
                       ▼
       ┌───────────────────────────────┐
       │       Apache Kafka            │
       │  ┌──────────┐  ┌──────────┐   │
       │  │ Topic 1  │  │ Topic 2  │   │
       │  └──────────┘  └──────────┘   │
       └───────────┬───────────────────┘
                   │
          ┌────────┼────────┐
          ▼        ▼        ▼
    ┌─────────┐ ┌─────────┐ ┌─────────┐
    │  Flink  │ │ Streams │ │  Spark  │
    └────┬────┘ └────┬────┘ └────┬────┘
         │           │           │
         └───────────┼───────────┘
                     ▼
         ┌───────────────────────┐
         │    Storage Layer      │
         ├───────────────────────┤
         │ Time-Series DB │ Lake │
         └───────────────────────┘

Data Ingestion Layer

The ingestion layer collects data from IoT devices and routes it into the streaming platform. MQTT (Message Queuing Telemetry Transport) is commonly used for device-to-cloud communication due to its lightweight protocol and support for unreliable networks. Apache Kafka serves as the central message broker, providing durable storage and high-throughput ingestion.

IoT devices publish messages to MQTT topics, which are then bridged to Kafka topics. This architecture decouples device communication from downstream processing, allowing the system to scale independently.

Stream Processing Layer

Once data enters the platform, stream processing engines transform, enrich, and analyze it in real-time. Apache Flink and Kafka Streams are popular choices for IoT workloads. They support stateful processing, windowing operations, and complex event processing.

For example, a smart city traffic management system might use Flink to aggregate vehicle speed data over five-minute windows, detect congestion patterns, and trigger alerts when traffic slows below thresholds.

Storage Layer

IoT architectures require multiple storage systems optimized for different access patterns. Hot data used for real-time dashboards goes into time-series databases like InfluxDB or TimescaleDB. Historical data for analytics moves to data lakes built on object storage. The storage strategy depends on retention requirements, query patterns, and cost constraints.

Architectural Patterns for IoT Streaming

Different IoT use cases require different architectural approaches. Understanding these patterns helps teams design systems that match their specific requirements.

Edge-to-Cloud Architecture

Edge computing processes data close to IoT devices before sending it to the cloud. This pattern reduces bandwidth costs, improves latency for local decisions, and continues functioning during network outages.

Edge nodes run lightweight stream processing to filter noise, aggregate readings, and detect anomalies. Only relevant data or summarized metrics flow to the cloud for long-term storage and advanced analytics.

A manufacturing plant might deploy edge processing on factory floor gateways. These gateways analyze vibration sensor data from machinery in real-time, triggering immediate maintenance alerts while sending hourly summaries to central systems for trend analysis.

Lambda and Kappa Architectures

Lambda architecture maintains separate batch and stream processing paths, eventually reconciling them for complete accuracy. The batch layer reprocesses historical data to correct any streaming errors, while the speed layer provides real-time results.

Kappa architecture simplifies this by using only stream processing. All data flows through the streaming platform, and batch operations become replay operations over the same stream. For IoT systems with well-defined schemas and reliable processing logic, Kappa reduces operational complexity.

Data Streaming Technologies in IoT

Modern IoT architectures rely on specialized streaming technologies designed to handle the unique challenges of sensor data.

Apache Kafka for IoT

Kafka excels at IoT ingestion due to its high throughput, durability, and scalability. Topics can be partitioned by device ID or geographic region to parallelize processing. Kafka's retention policies let organizations keep raw sensor data for days or weeks, enabling reprocessing if business logic changes.

Schema Registry ensures IoT data maintains consistent structure as devices evolve. When a sensor manufacturer updates firmware and adds new fields, Schema Registry manages backward compatibility across the streaming pipeline.

Apache Flink for Real-Time Analytics

Flink processes IoT streams with exactly-once semantics, critical for applications like energy metering or financial transactions. Its event time processing handles out-of-order events common in IoT systems where devices may buffer data during network interruptions.

Flink's stateful stream processing enables complex operations like sessionization of user interactions with smart devices or correlation of events from multiple sensors to detect system-wide patterns.

Protocol Bridges and Integration

IoT ecosystems use various protocols beyond MQTT, including CoAP, AMQP, and proprietary formats. Streaming architectures employ protocol bridges—lightweight services that translate between device protocols and Kafka. These bridges standardize data formats early in the pipeline, simplifying downstream processing.

Challenges and Best Practices

Building production IoT streaming architectures requires addressing several operational and technical challenges.

Scalability and Resource Management

IoT deployments can grow from thousands to millions of devices rapidly. Architectures must scale horizontally by adding brokers, processing nodes, and storage capacity without downtime. Auto-scaling based on ingestion rates and processing lag helps manage variable workloads.

Kafka cluster management becomes critical at scale. Management platforms provide visibility into partition distribution, consumer lag, and cluster health, enabling teams to identify bottlenecks before they impact data freshness.

Data Quality and Schema Evolution

IoT sensors operate in harsh environments and may send malformed data due to hardware failures or network corruption. Stream processing logic should validate data against schemas, filter invalid readings, and route anomalies to dead-letter queues for investigation.

As device fleets evolve, schemas change. Implementing schema versioning and compatibility rules ensures new device versions don't break existing processing pipelines. Schema management features help teams govern schema evolution across distributed IoT deployments.

Security and Access Control

IoT data often contains sensitive information requiring encryption in transit and at rest. TLS/SSL secures device-to-cloud communication, while Kafka supports authentication via SSL certificates or SASL. Fine-grained access control ensures only authorized applications can consume specific sensor data streams.

Monitoring and Observability

Production IoT systems require comprehensive monitoring of device connectivity, message throughput, processing latency, and data quality metrics. Distributed tracing helps diagnose issues spanning edge gateways, message brokers, and processing engines.

Real-World IoT Streaming Use Cases

Smart City Traffic Management

A metropolitan area deploys 10,000 traffic sensors across intersections, measuring vehicle counts, speeds, and pedestrian activity. These sensors publish readings every second to MQTT topics, bridged to Kafka.

Flink processes the streams to calculate real-time congestion scores, predict traffic patterns using historical data, and optimize traffic light timing. City operators view live dashboards built on the processed streams, while urban planners query historical data from the data lake to design infrastructure improvements.

Industrial Predictive Maintenance

Manufacturing equipment contains hundreds of sensors monitoring temperature, vibration, pressure, and electrical current. An edge gateway collects readings every 100 milliseconds, running local anomaly detection algorithms.

When anomalies exceed thresholds, the gateway publishes detailed diagnostic data to Kafka topics. Cloud-based Flink jobs correlate patterns across multiple machines, predict component failures, and automatically schedule maintenance before breakdowns occur. This reduces unplanned downtime by 40% and extends equipment lifespan.

Summary

IoT data streaming architectures enable organizations to harness the value of sensor data in real-time. These systems combine specialized ingestion protocols like MQTT with powerful streaming platforms like Apache Kafka and Apache Flink to handle massive scale and low-latency requirements.

Effective architectures balance edge and cloud processing, implement robust data quality controls, and scale seamlessly as device fleets grow. By following architectural patterns like edge-to-cloud designs and adopting best practices for schema management and monitoring, teams can build reliable IoT streaming systems.

The combination of proven streaming technologies with proper operational tooling creates platforms that transform raw sensor data into actionable intelligence, powering applications from smart cities to industrial automation.
